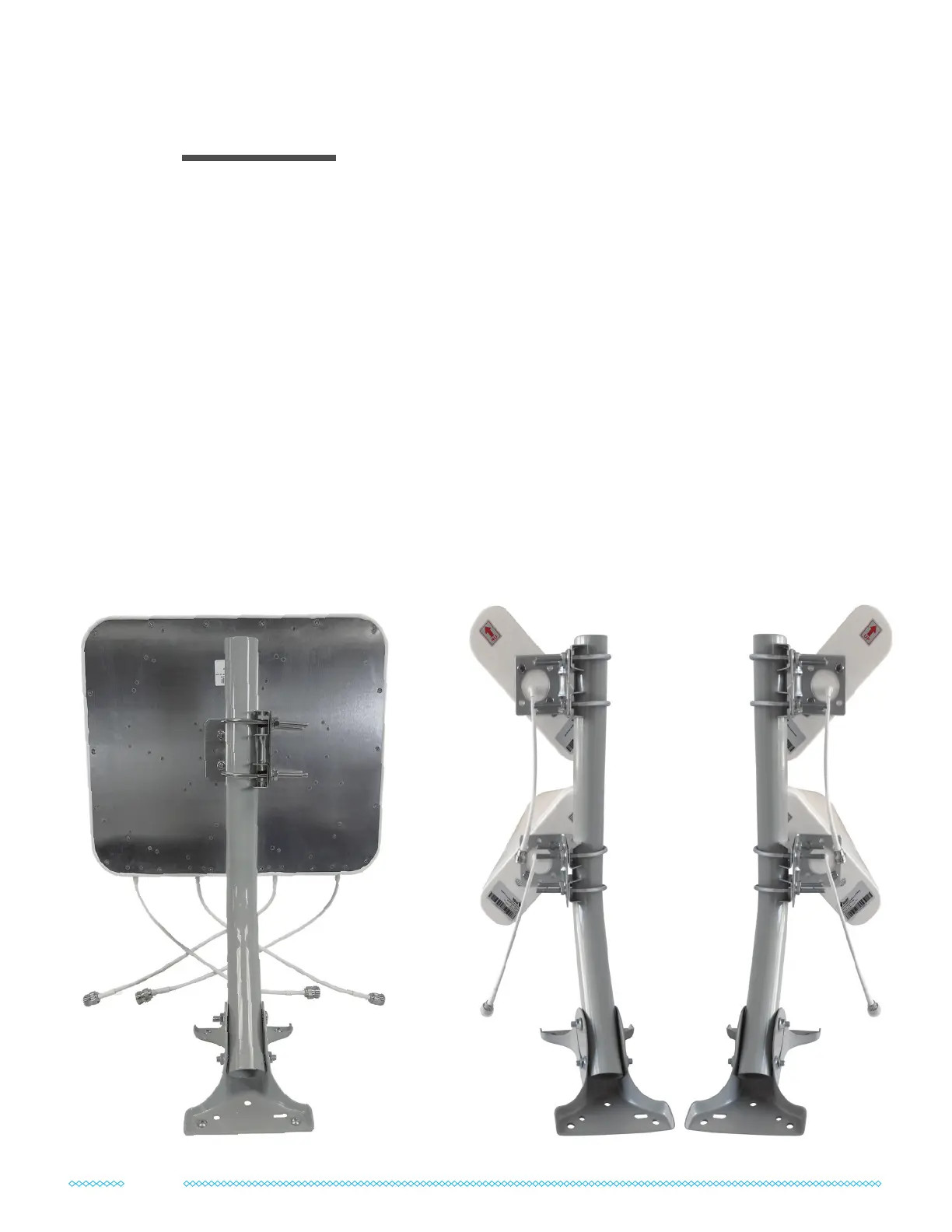

The pictures below show how your antennas should be secured to your mount.
If you have the kit with four Log Periodic Antennas: Note how the two Log Periodic Antennas
on each mount are angled at 45 degrees in opposite directions. This is called “cross-
polarization” and is crucial to MIMO.
To acheive 4x4 MIMO, mount the two pairs of cross-polarized antennas as shown below. Keep
the antennas between 3 to 6 feet apart, and treat all four as a single antenna: always keep them
aimed in the same direction.
For the next step in section 3 it’ll be helpful to have your antennas attached to your mount, so
take some time to get these set up before moving on.
If you’d like more detailed instructions on how to assemble our J-Mount and mount the
L-bracket(s), you can nd that online at waveform.com/polemount-instructions
6
Assembling the Antennas
