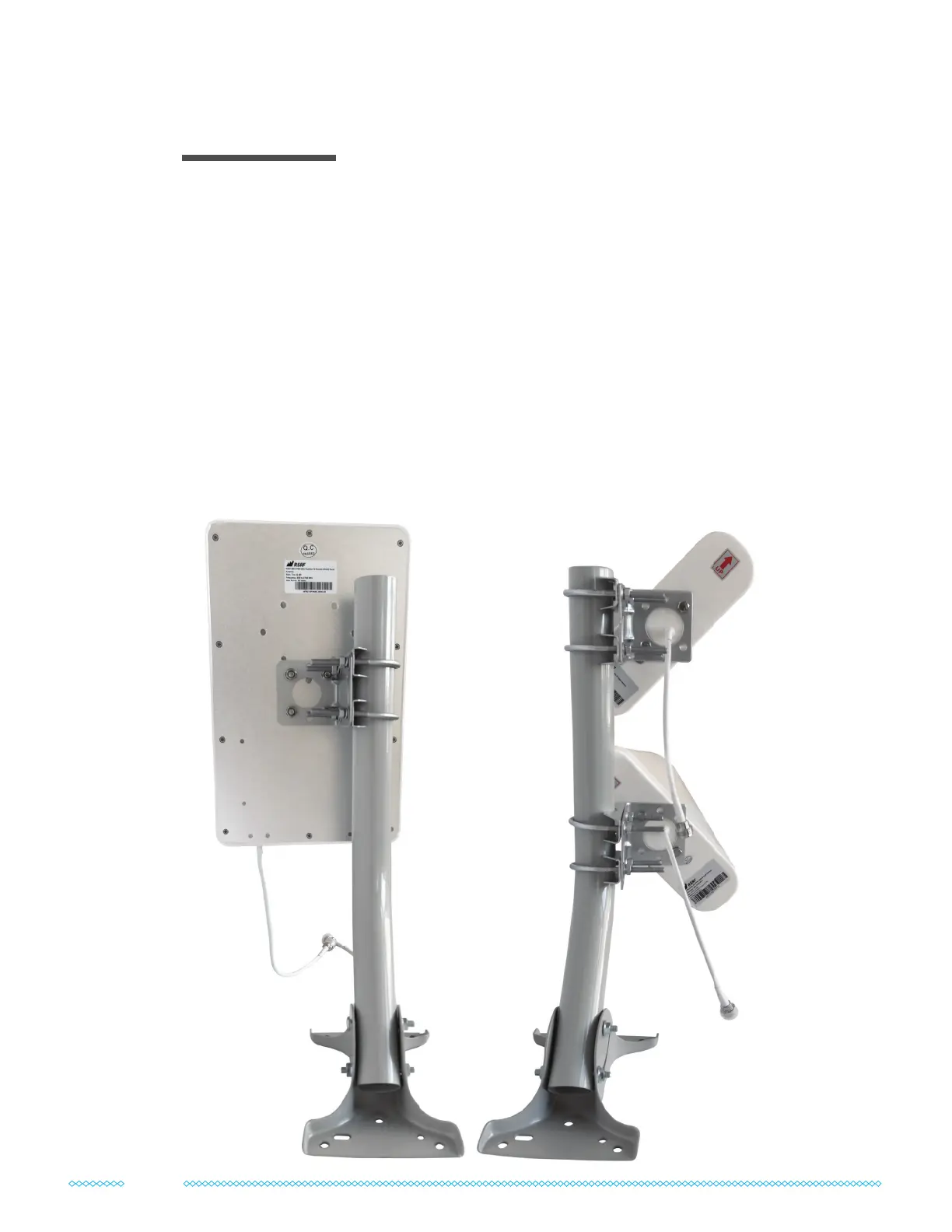

The pictures below show how your antenna(s) should be secured to your mount. We’ve shown
this with the optional J-Mount, included only in the complete kit, but any mount will do.
If you have two Log Periodic Antennas: Note how the two Log Periodic Antennas on the right
are angled at 45 degrees in opposite directions. This is called “cross-polarization” and is crucial
to MIMO. Mount these exactly as in the image and then treat them as a single antenna.
For the next step in section 3 it’ll be helpful to have your antennas attached to your mount, so
take some time now to get these set up before moving on.
If you’d like more detailed instructions on how to assemble our J-Mount and mount the
L-bracket(s), you can nd that online at waveform.com/polemount-instructions
Assembling the Antenna(s)
02
