GCV OUT BAD
EXT DC OFFSET
INPUT BAD
<
GENERATOR
FREQ OPERATES
PROPERLY
?
NO
^D
FUNCTION OUT
OUTPUT NORMAL
WITHOUT EXT DC
OFFSET INPUT
?
NO
YES
YES

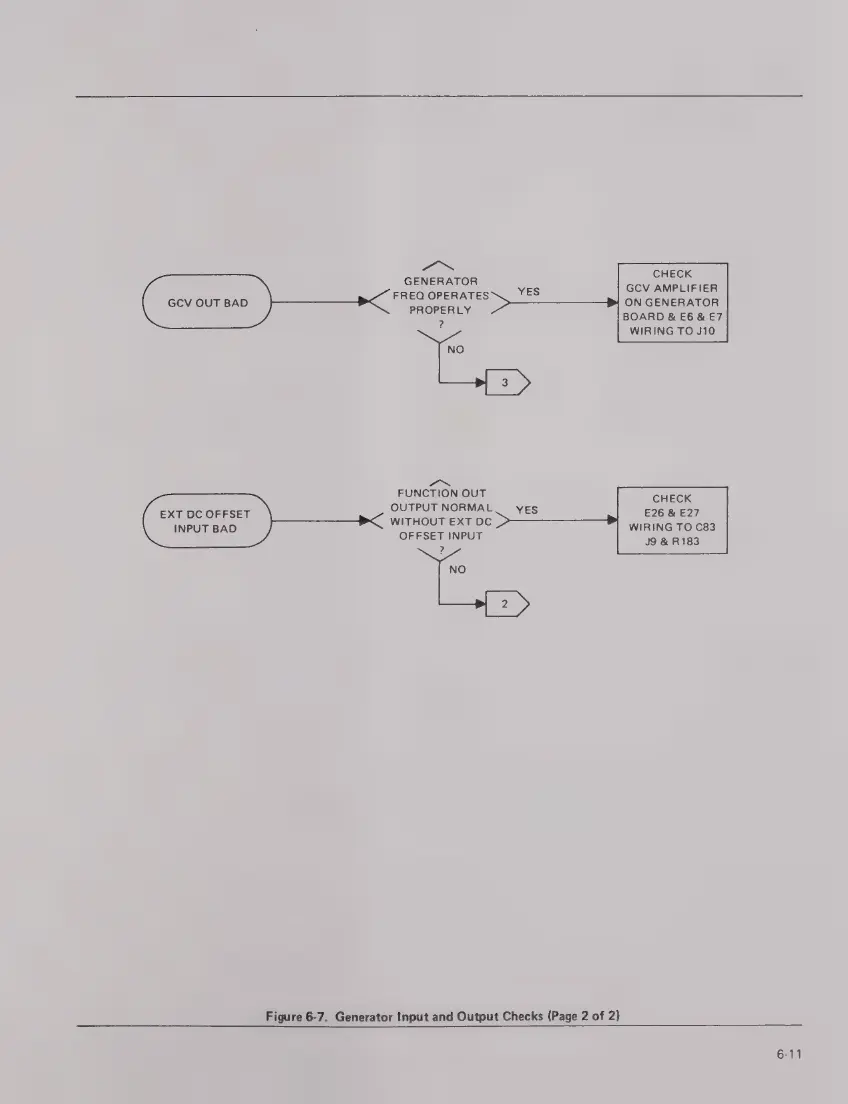

Figure 6-7. Generator Input and Output Checks (Page 2 of 2)
CHECK
GCV AMPLIFIER
ON GENERATOR
BOARD & E6 & E7
WIRING TO J10
CHECK
E26 & E27
WIRING TO C83
99 & R183
6-11
