5.3.2. Wavin DRT-200 digital room thermostat
W
W
i
i
r
r
i
i
n
n
g
g
:
:

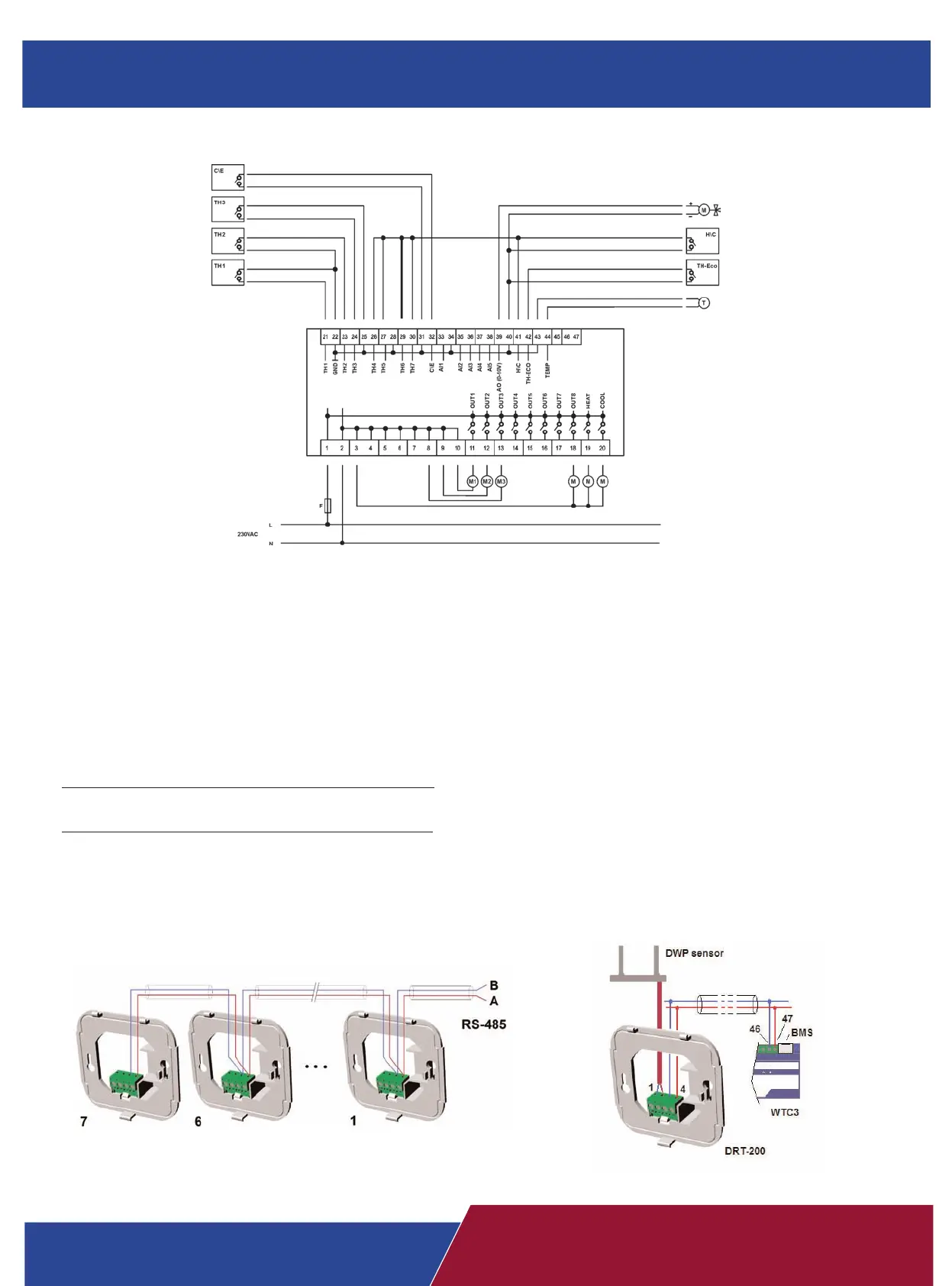

All wiring must comply with local electrical codes and
specifications. Wavin recommends 18 AWG LVT or similar wire for
all thermostat connections. Strip all wires to 1/4 (6.3 mm) to
ensure proper connection to thermostat terminal blocks.
Note:
Reversed polarity will not damage the room thermostat
C
C
O
O
N
N
N
N
E
E
C
C
T
T
I
I
O
O
N
N
: Room Thermostats can be connected to the
WTC-3 in all way (serial, chain, star parallel).
Out of use circuits - Connection in parallel
