Seven rooms may be separately temperature
c
ontrolled with Analogue thermostat.
D
ew point sensor may be also used on the first
five control circuits.
Output 8 indicates the heating/cooling demand
and the last two outputs control fault-free
changeover between cooling and heating.
Output terminal strip points of control circuits out
of use must be left unconnected.
Thermostat inputs of control circuits out of use
must be connected in parallel with the
changeover input of cooling and heating.
Otherwise output 8 (heating/cooling demand) will
be continuously switched in cooling mode.
Control circuit 6 may be used only for heating.
Comfort/Economy mode: the energy saving mode
may be adjusted on C\E input or via the
communication line. Then the set point is given
by thermostat connected to input "THEco",
and the seven r
ooms ar
e controlled in parallel
based on this.
The energy saving mode operates only
in case of heating; energy saving mode
set in the cooling mode switches off cooling.
Mixing valve control: controlled inlet water
temperature may be set with the use of the
analogous output (0-10V) as well as of "Temp"
input. Factory default for cooling is 15
°C, and 45
°C for heating.
If contr
ol is not required, the terminal strip points
of the analogues output and of the measuring
input must be left unconnected

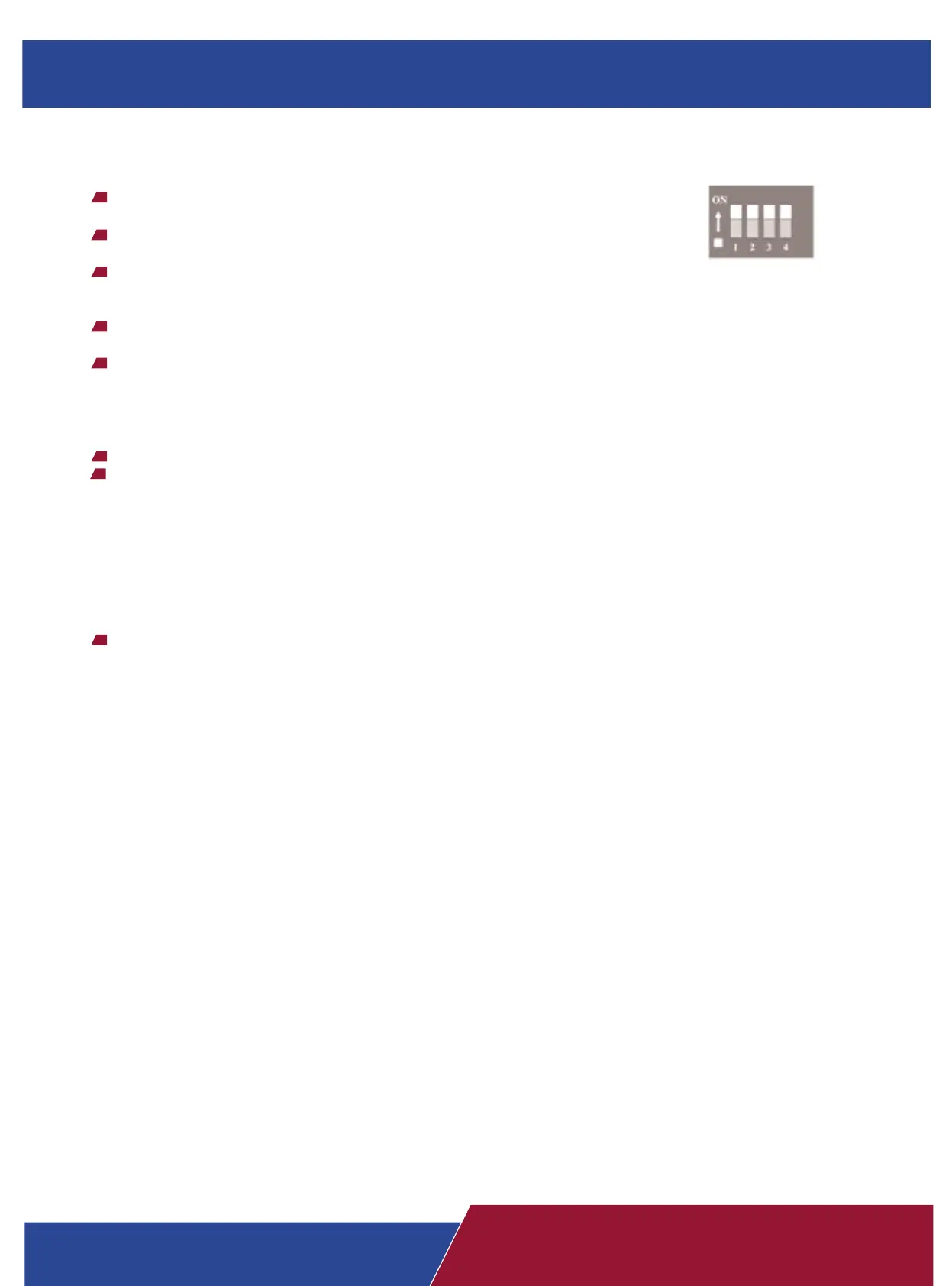

7.1.1. Configuration switch
Switch 1 = ON
Switch 2 = ON
Switch 3 = ON
Switch 4 = ON
