Wavtech Steg SDSP6 - Page 6

5
SDSP8
Chassis
Ground
8AWG
(min)
<2ft
(60cm)
12V
<18in (45cm)
Œ Ž‘’ “ ”•
FL INPUT
FR INPUT
White
White/Black
-
+
Green
Green/Black
-
+
RL INPUT
RR INPUT
Purple
Purple/Black
-
+
Gray
Gray/Black
-
+
SUB-L INPUT
SUB-R INPUT
Blue
Blue/Black
-
+
Brown
Brown/Black
-
+
COAX INPUT
CH8 OUT
CH7 OUT
AUX-R IN
AUX-L IN

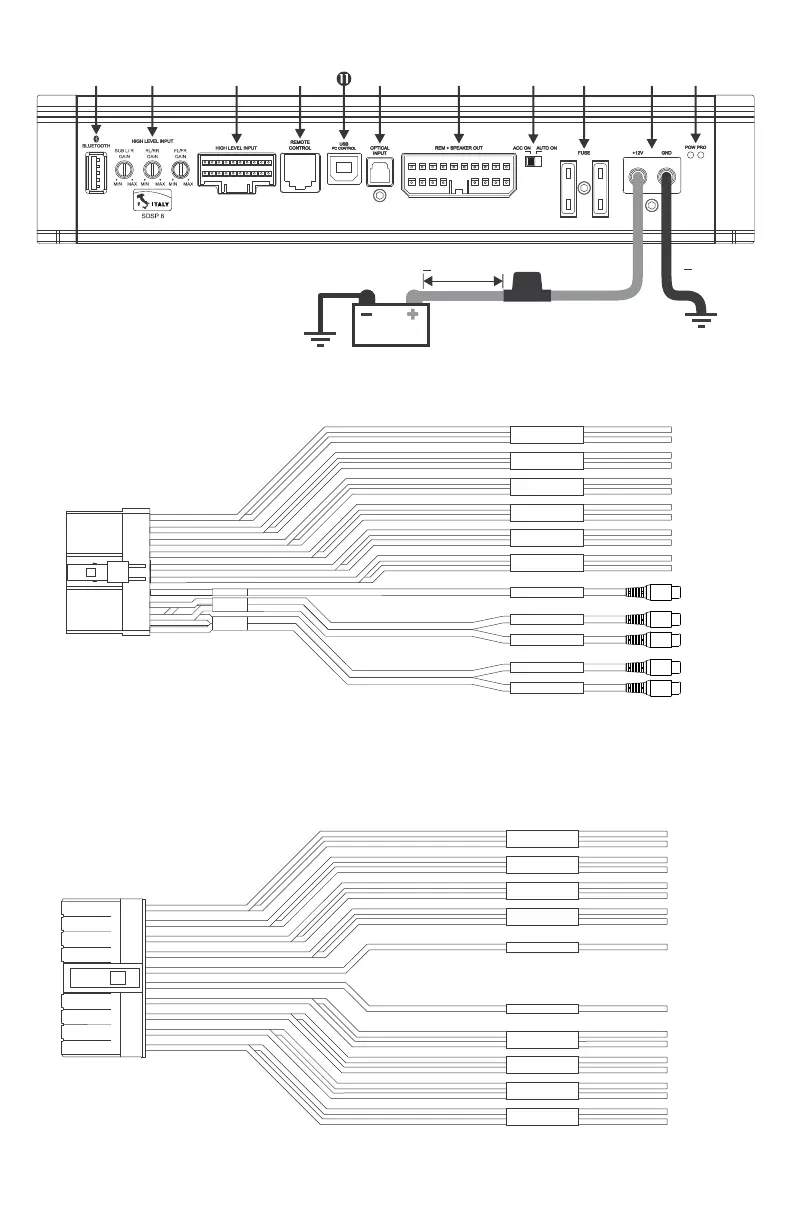

High Level/AUX/Coax Input and Pre-out Harness:
Speaker Output and Remote In/Out Harness:
White
White/Black
-
+
Green
Green/Black
-
+
Blue
Red
Purple
Purple/Black
-
+
Gray
Gray/Black
-
+
Blue
Blue/Black
-
+
Orange
Orange/Black
-
+
Pink
Pink/Black
-
+
Brown
Brown/Black
-
+
CH1 OUT
CH2 OUT
CH3 OUT
CH4 OUT
REM OUT
REM IN
CH5 OUT
CH6 OUT
CH7 OUT
CH8 OUT
External
Fuse: 50A
