Wayne Classicdrive 3014 - Parts Breakdown Rail Assembly - All Models

35

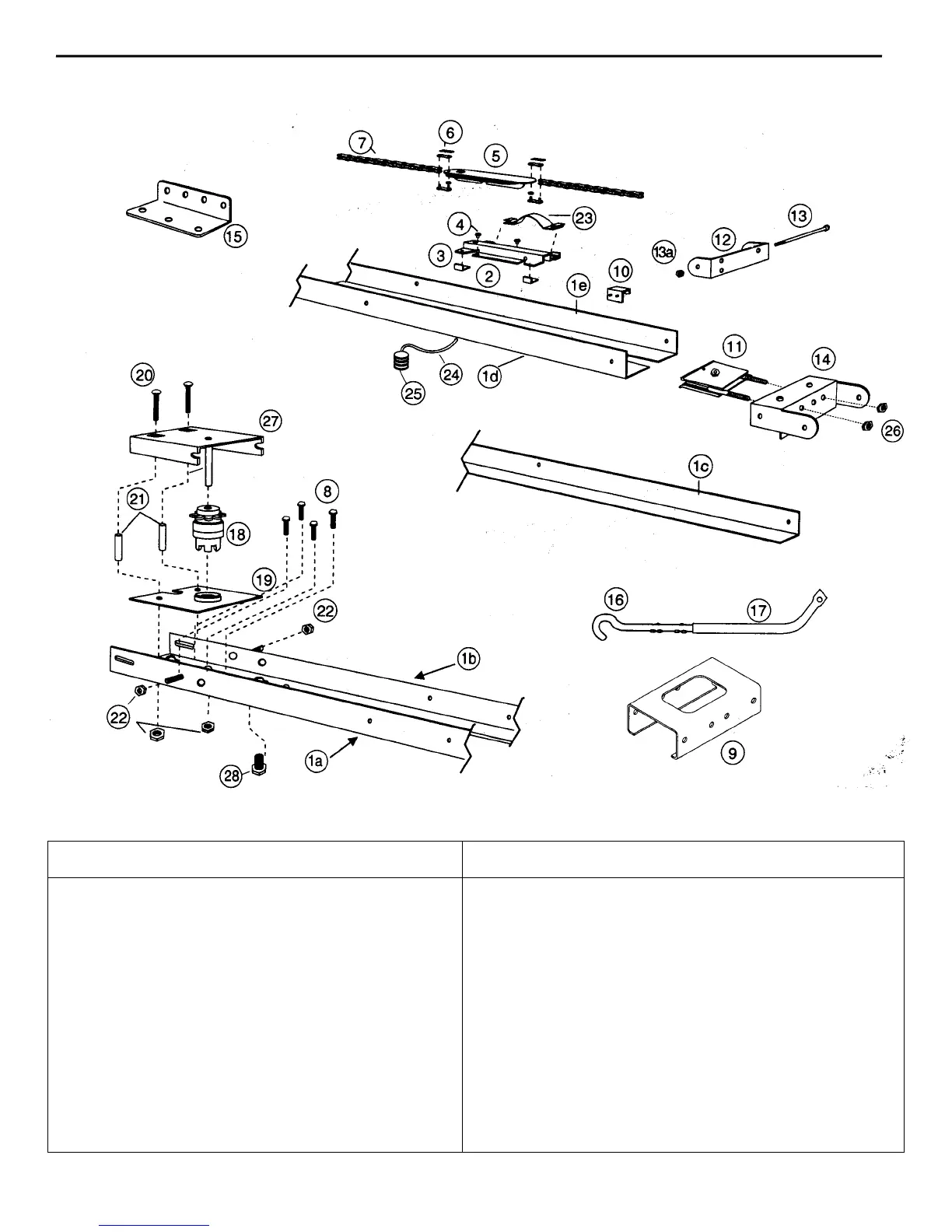

Parts Breakdown Rail Assembly – All Models
#. Part # Description #Per
Unit
#. Part # Description # Per
Unit
1a. 296125 Motor Head Rail Angle, R.H. 1 13a 157561 Lock Nut 1/4 – 20 x 4” Hex Bolt 1
1b. 296126 Motor Head Rail Angle, L.H. 1 14. 220958 Front Rail Bracket 1
1c. 296127 Intermediate Rail Angle 2 15. 220956 Door Bracket 1
1d. 296128 Front Rail Angle, R.H. 1 16. 229858 Arm Rod, 14” 1
1e. 296129 Front Rail Angle, L.H. 1 17. 252107 Arm Rod, 13” 1
2. 198077 Trolley Assembly 1 18. 305894 Sprocket Coupling W/ Bushing 1
3. 221020 Trolley Wing Foot 4 19. 252106 Sprocket Coupling Base Assembly 1
4. 220961 Nylon Button 4 20. 251228 5/16” x 2” Hex Bolts 2
5. 252109 Chain Latch Assembly 1 21. 221014 Spacer Tube 2
6. 157666 Master Link Assembly W/Spacer 2 22. 220999 5/16” Kep Nut 4
7. 220966 Chain, 7’ Opener 1 23. 220987 Molded Chain Guard 1
8. 157510 Hex Head Bolts, 1/4” x 5/8” 4 24. 220977 Red Emergency Release Cord 1
9. 296130 Splice Bracket 2 25. 157143 Red Release Knob 1
10. 294674 Rail Stop With Set Screw 1 26. 157665 Chain Adjusting Nut 2
11. 157662 “U” Bolt 1 27. 287265 Sprocket Coupling Cap Assembly 1
12. 220959 Front Wall Bracket 1 28. 157500 Stop Bolt 1
13. 157559 1/4 – 20 x 4” Hex Bolt 1
