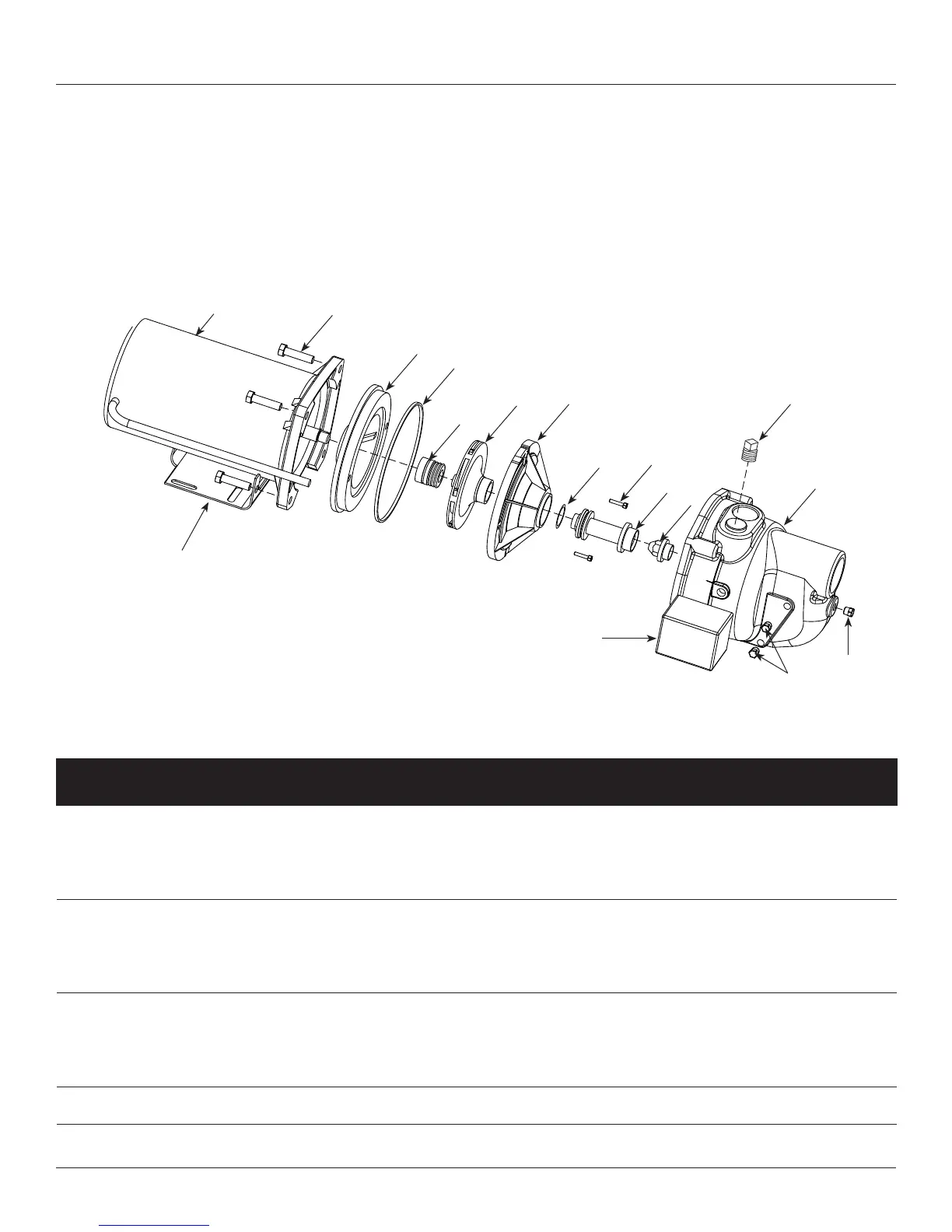

Wayne Shallow well model - Replacement Parts Information; Ordering Replacement Parts; Illustrated Parts Breakdown

10
For Replacement Parts, call 1-888-636-6628
Please provide following information: Address parts correspondence to:
- Model number WAYNE Pumps
- Serial number (if any) 101 Production Drive
- Part description and number as shown in parts list Harrison, OH 45030 U.S.A.
Ref.
No. Description
Part Numbers
Qty.SWS50-1/2 HP SWS75-3/4 HP SWS100-1 HP
1 Motor 32059-001 34142-001 34142-001 1
2 Screw 16636-002 16636-002 16636-002 4
3 Seal plate 4372-001 4372-001 4372-001 1
4 • Square ring rubber gasket 17150-001 17150-001 17150-001 1
5 • Shaft seal assembly 56393 56393 56393 1
6 Impeller 23285-021 23285-022 23285-022 1
7 Diffuser 17148-021 17148-021 17148-021 1
8 Screw 67007-001 67007-001 67007-001 2
9 • O-ring 15557 15557 15557 1
10 Venturi 17151-002 17151-003 17151-004 1
11 Nozzle 15672 15672 15672 1
12 Pipe plug 3/4” 15921 15921 15921 1
13 Volute 56869-001 56869-001 56869-001 1
14 Pipe plug 1/4” NPT 16314-002 16314-002 16314-002 1
15 Pipe plug 1/8” NPT 15766-002 15766-002 15766-002 1
16 Base 23029-021 23029-021 23029-021 1
17 Pressure switch 30010-021 30010-021 30010-021 1
• Repair kit (Includes #4, 5 and 9) 56874-001 56874-001 56874-001 1
