(1) POOL COVER PUMP
(1) CHECK VALVE/
HOSE ADAPTER
(1) 25' ROPE
(1) PUMP STRAINER

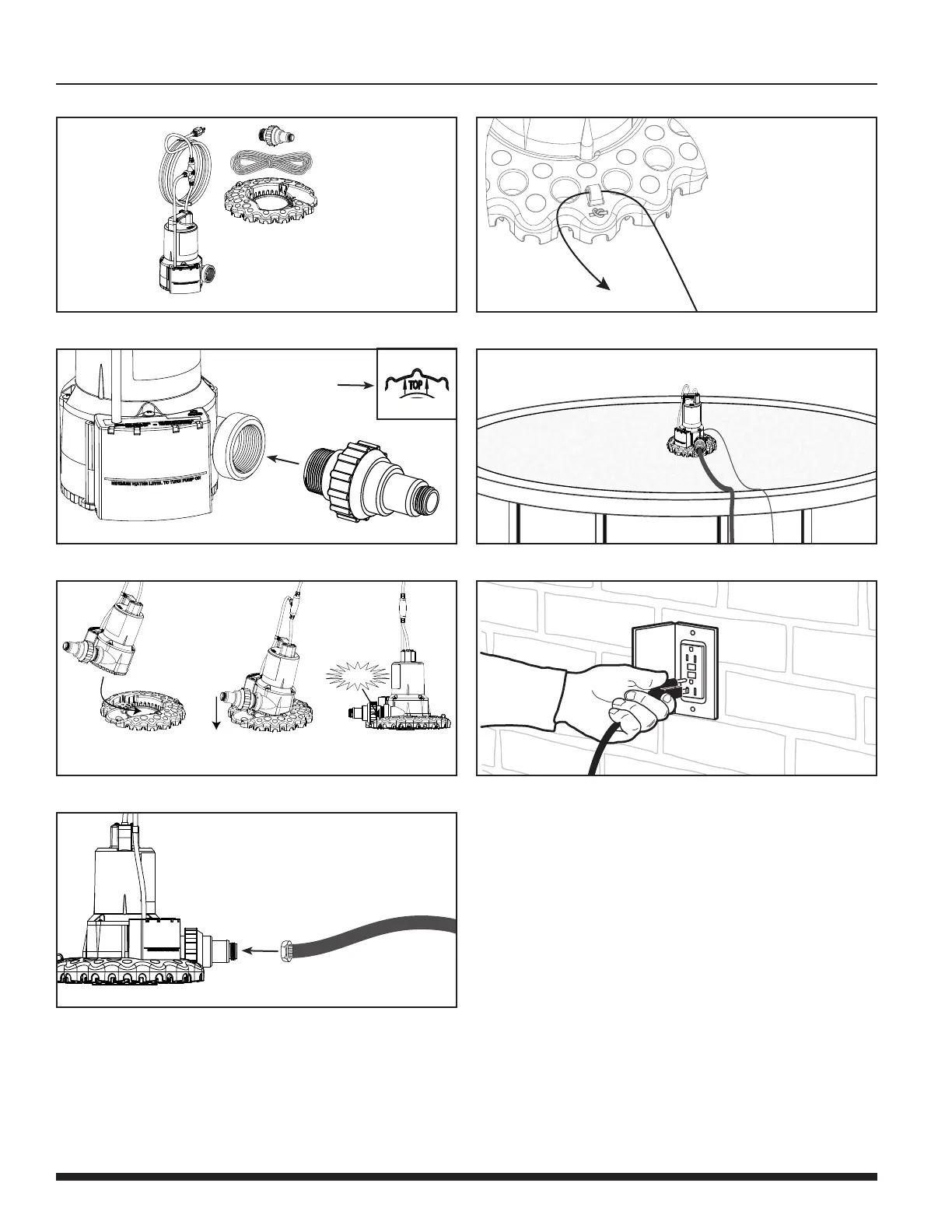

STEP 2 - INSTALL CHECK VALVE
STEP 3 - ATTACH STRAINER
STEP 4 - CONNECT GARDEN HOSE
STEP 5 - SECURE ROPE TO STRAINER
STEP 6 - POSITION ON POOL COVER
STEP 7 - PLUG INTO GFCI OUTLET
FOR FURTHER PLACEMENT TECHNIQUES AND DETAILED INSTALLATION FOR
INGROUND AND ABOVE GROUND POOL APPLICATIONS, REFER TO PAGES 5
and 7- FIGURES (A-E).
ROTATE PUMP
DOWN TO LOCK
LISTEN FOR PUMP TO
"CLICK" IN PLACE
FEED ROPE THROUGH
LOOP ON STRAINER AND
SECURE WITH KNOT
CLICK
INSTALL CHECK VALVE
SO ARROWS ARE
POINTING UPWARD
The most common cause for the pump not removing water can be
resolved by following step 6 of the troubleshooting section. (Page 9)
STEP 1 - VERIFY PACKAGE CONTENTS
