CAUTION The wall mount must bear a minimum of five times
the monitor’s net weight. To mount your MONITOR to the wall
or another surface, you need to purchase a VESA wall mount.
Use four PM
Ф4.0 x 6mm screws (the base attachment screws
removed in step 1 below are PM
Ф4.0 x6mm) to attach the mount.
The monitor mount VESA hole pattern is ( 0E-19VGHDMI2
/ 22VGHDMI2 (100mm x 100mm))
Mountin
g
Guide

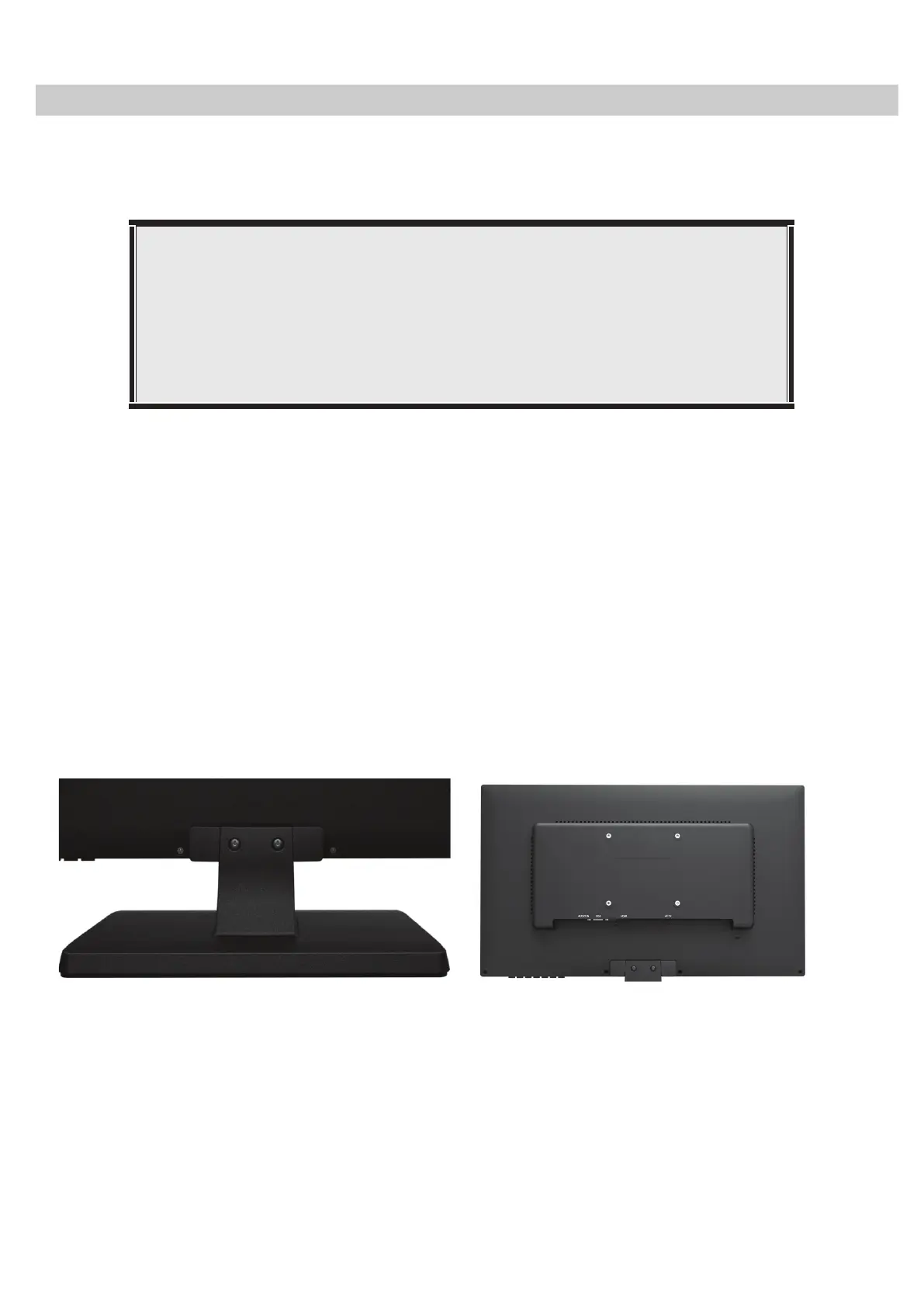

Wall or Other Mounting with VESA Standard
Note: Metric (PM
Ф4.0 x 6 mm) is the type screw that should be used (do not use longer
screws or the monitor may be damaged).
1. Before mounting the monitor, remove the base riser (vertical portion of the base) by
removing the four screws near the top with a screwdriver. Then the base and the
riser can be removed. In order to prevent losing these screws, we suggest repl
acing
the screws in their original holes.
2. Attach the VESA mount ( 0E-19VGHDMI2 / 22VGHDMI2 (100mm x 100mm))
plate to the rear of the monitor and follow all of the instructions provided with the
mount to complete the mounting process.
