Base Installation Instructions
19

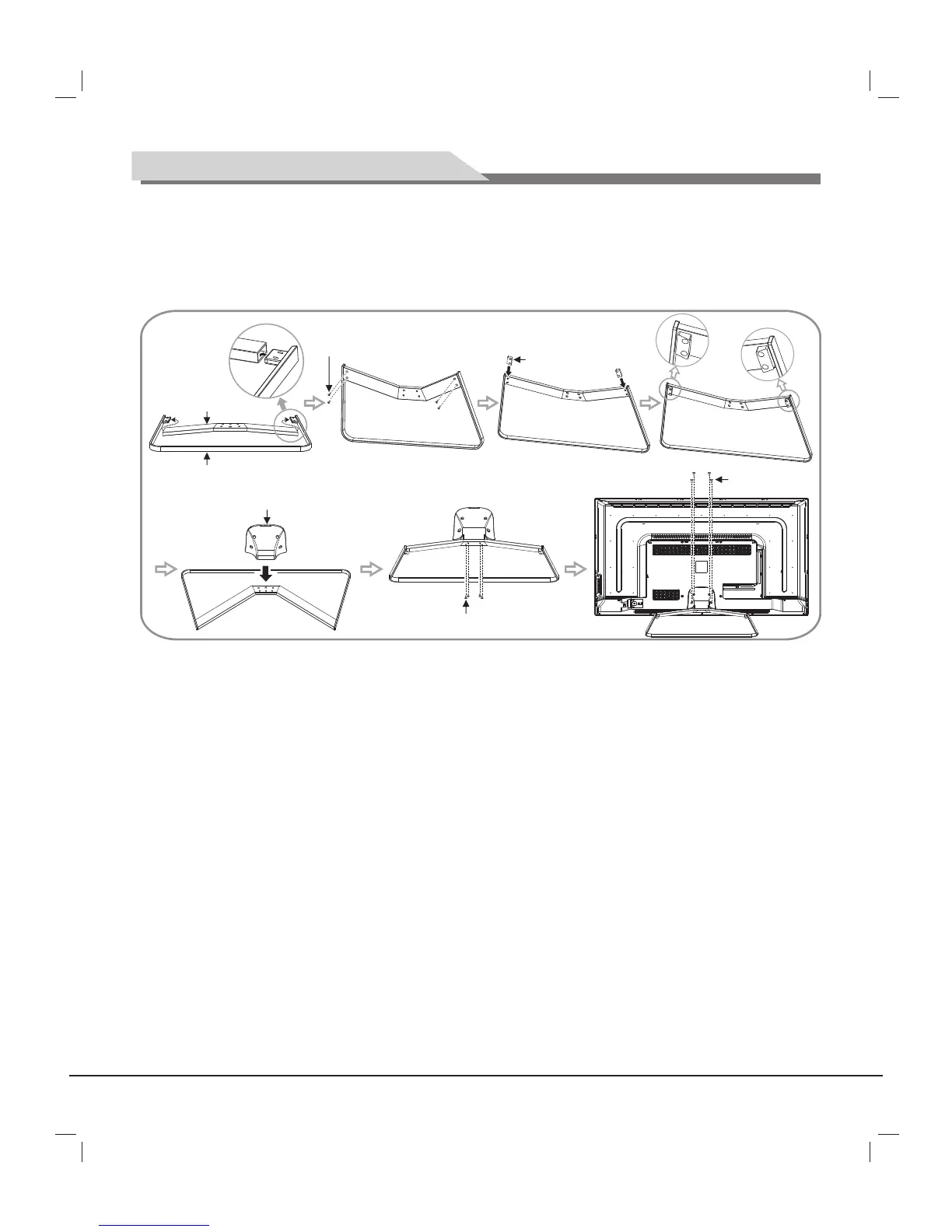

Install metal support and Iron base according to direction in the picture, and note that locking them
tightly with 4 PCS Φ5×7mm flat-head machine screws after screw holes aligned(except for installation finished
part).
. Then lock base and base support with 4PCS Φ4×(10+8)mm H-head machine screws. Finally, lock
the whole base module on machine back cover with 4PCS Φ4×16mm B-head machine screws.
Make base pad holes and screw center aligned, then stick them on metal support. Notice to distinguish
right and left foot mat installation direction (Do not need to operation this for base pad sticking process finished
situation)
Remark: The actual base and machine appearance may be different from pictures; please refer to the actual
device.
Base pad
Metal support
Iron base
Φ4×(10+8)mm screws
Base support
Φ5×7mm screws
Φ4×16mm screw
To Next Page
