High-Resolution IR Camera

User Manual

Error! Use the Home tab to apply

标题 1 to the text that you want to

appear here.

Issue V1.0 (2018-03-20)

2.2 Device Installation

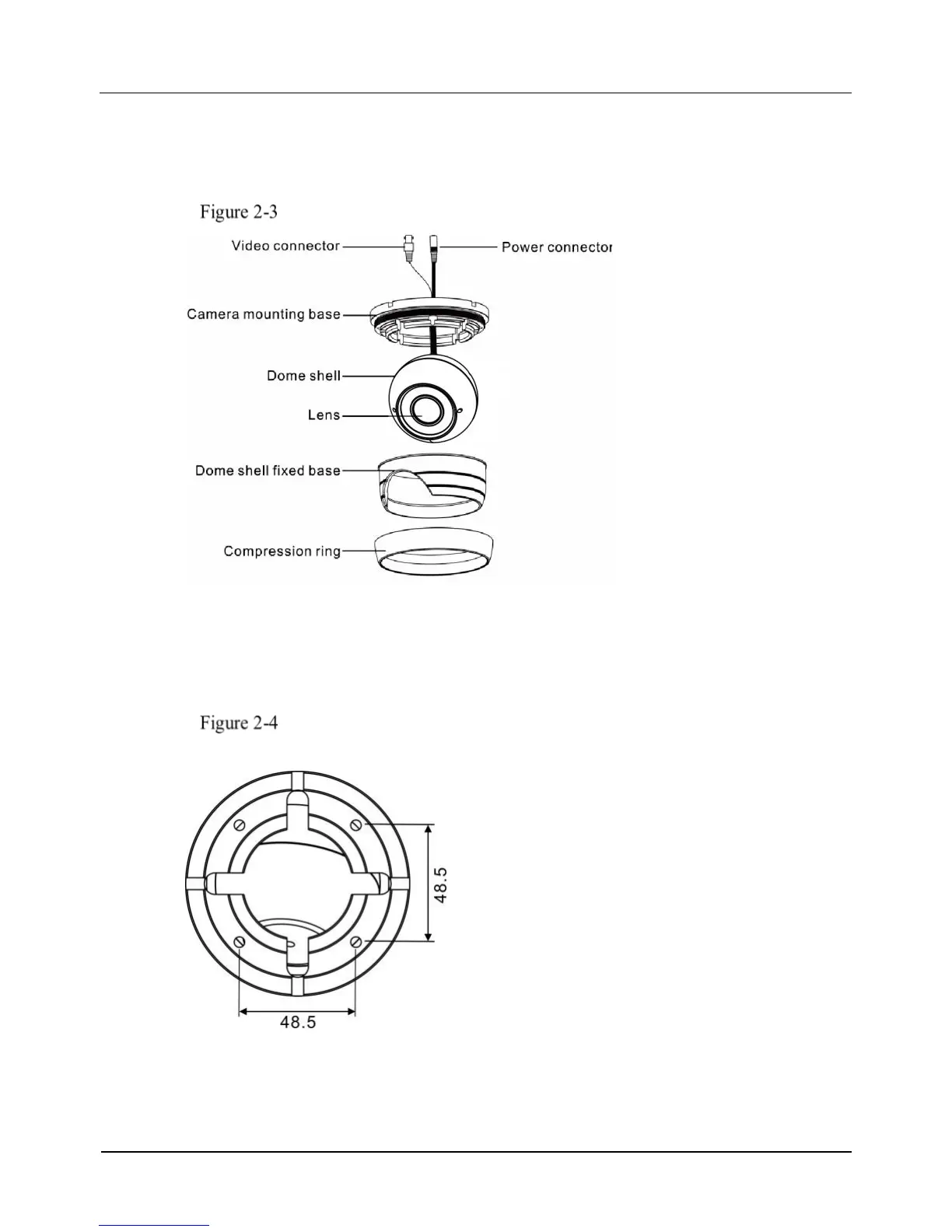

Step 1 Open a package, take out the camera, unscrew the camera compression ring, and

disassemble the camera, the camera components is shown in Figure 2-3.

Camera components

Step 2 Use the base as drill template, drill holes on the ceiling or wall, and reserve the cable

entries of the video/power cables.

Figure 2-4 and Figure 2-5 shows the dimensions of the camera mounting base.

Dimensions of the 0E-HDD1MP28(G) and 0E-HDD2MP28(G) mounting

base
