WBOX Technologies 0E-HDMIEX4K4 - Page 11

10

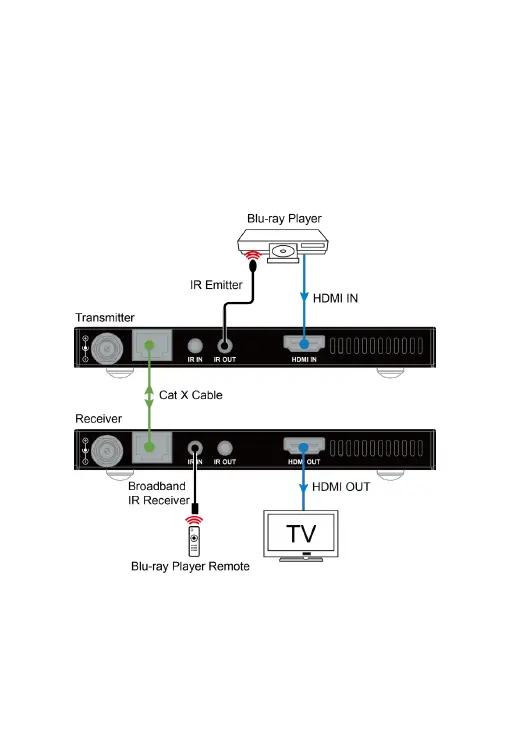

Control the Source
To control the source from the display location:
1. Connect the IR emitter provided to IR OUT of the
0E-HDMIEX4K4 transmitter.
2. Connect the broadband IR receiver provided to IR IN of the
0E-HDMIEX4K4 receiver.
When all set, the source can be controlled at the display location
through a source remote.
