WBOX Technologies 0E-HDMIEX4K4 - Receiver

5

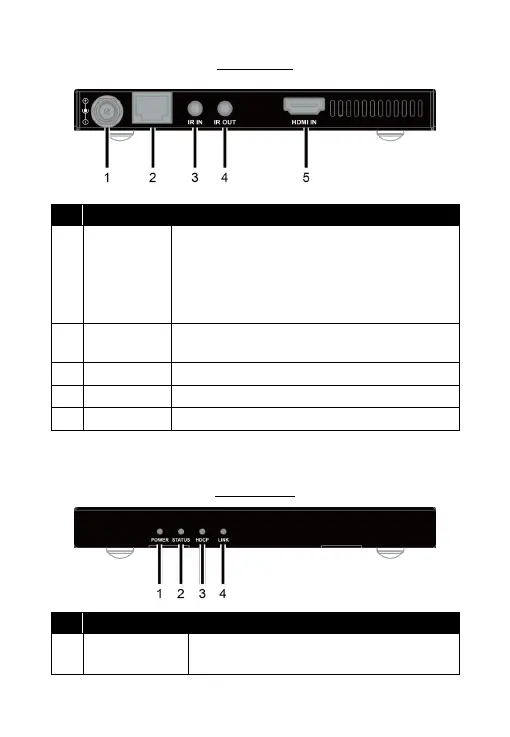

Rear Panel
ID.
Name
Description
1
DC 18V
Connect to the power adapter provided.
Note: Connect the power adapter to either
the transmitter or receiver can power both
units. Only one power adapter is needed
for 0E-HDMIEX4K4.
2
HDBT OUT
Connect to the receiver via a Cat 5e/6/7
cable.
3
IR IN
Connect to the IR receiver provided.
4
IR OUT
Connect to the IR emitter provided.
5
HDMI IN
Connect to an HDMI source device.
Receiver
Front Panel
ID.
Name
Description
1
Power LED
(Red)
On: The receiver is powered on.
Off: The receiver is powered off.
