9
IR Operation
IR pass-through function allows you to remotely control the source
from the display location or the display from source location.
Control the Display

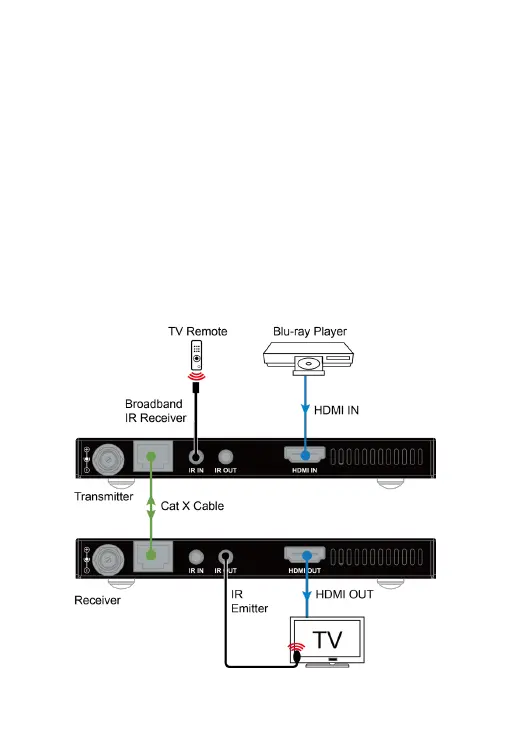

To control the display from the source location:
1. Connect the broadband IR receiver provided to IR IN of the
0E-HDMIEX4K4 transmitter.
2. Connect the IR emitter provided to IR OUT of the
0E-HDMIEX4K4 receiver.
When all set, the display can be controlled at the source end
through a display remote.
