2.1 Lower excavation
Keep the angle between bucket base and the bevel at 30°, and retract the arm to start work.
2.2 Upper excavation
Keep the bucket blade vertical to the ground, and retract the arm to start work.

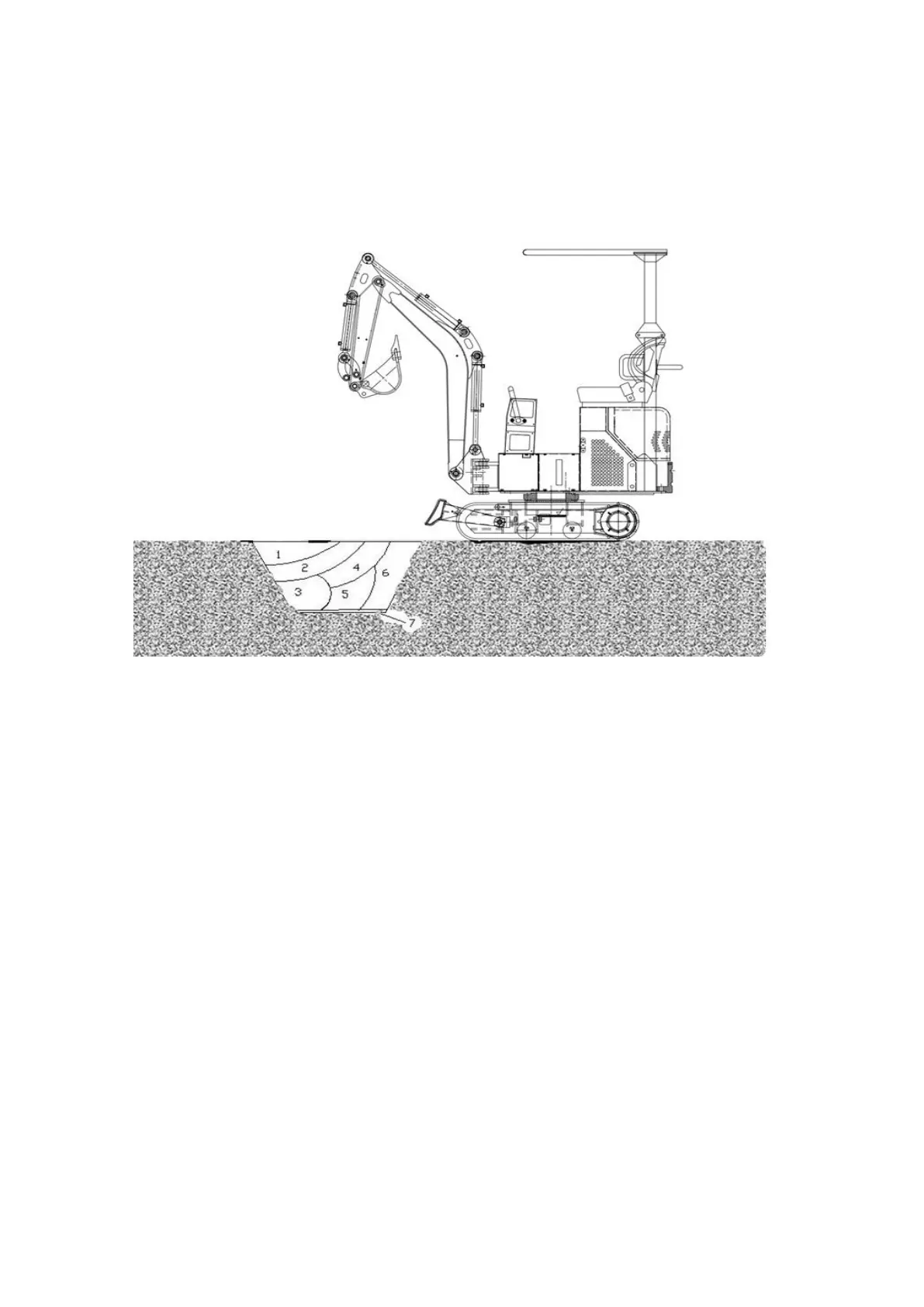

2.3 Ditching is carried out in 7 steps, as shown in figure.
