2 General description Roof-top air-conditioning system CC8
204
2.3 Air ducting system (option)
The modular air ducting system (Fig. 204) can be installed in the vehicle to distribute air. The system comprises an air
distribution panel, the central air duct and the end air duct. Several central air ducts may be installed, depending on the
required length of the air distribution system.
The modules of the air ducting system are mounted on a frame, which is in turn secured to the cabin ceiling or roof
arches. The frame consists of frame segment(s), the frame end and the segment connectors.
The system controls are mounted on the dashboard when installing the air ducting system. The wiring harness for
"external controls" is required for this purpose.

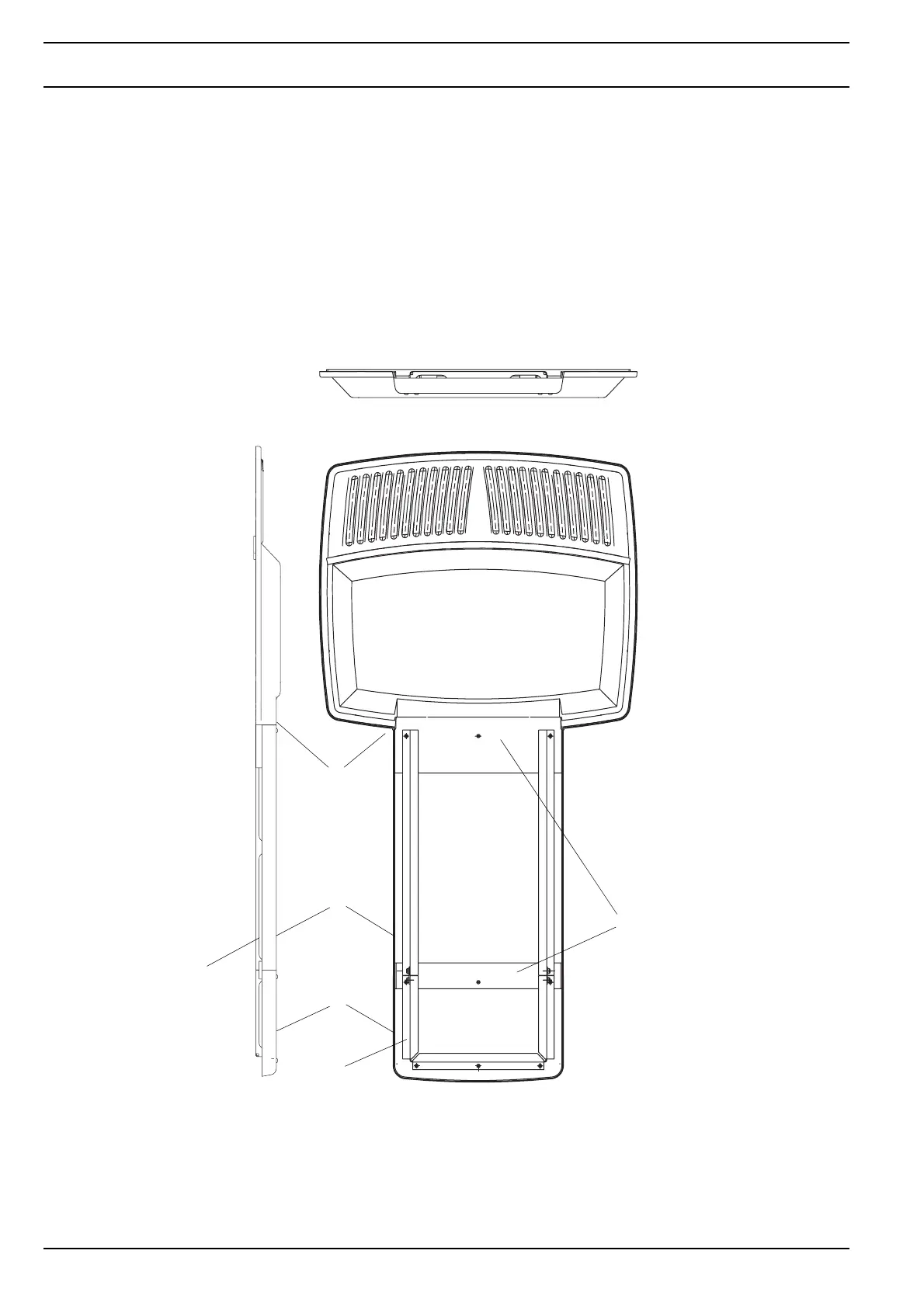

Fig. 204 Air ducting system
1 Air distribution panel
2 Central air duct
3 End air duct
1
2
3
4
4 Frame segment
5 Frame end
6 Segment connector
5
6
