Webasto CC8 User Manual

CC8 roof-top air-conditioning system 4 Installation instructions
405
Kältemittelschlauch
Distanzstück
Id.-Nr. 97562
schematisch
dargestellte
Dachkontur
Kondenswasserschlauch
Id.-Nr. 97136 NW 13
R min 85
min 22,5 min 38
SCHNITT B - B
180° gedreht
Kältemittelschlauch
SCHNITT C - C
Kältemittelschlauch NW12
R min 88,9 mm
Kabelbinder u. Kantenschutz
zur Positionsfixierung
SCHNITT A - A
Anschluss an Expansionsventil
mit Schlauchanschluss NW16, 90° m. Flansch,
OR ZSB, Ident.-Nr. 65612
Kältemittelschlauch NW16
R min 114,3 mm
Armaflex/Eurobatex
Schmutzschutzstreifen
Armaflex/Eurobatex
Schmutzschutzstreifen

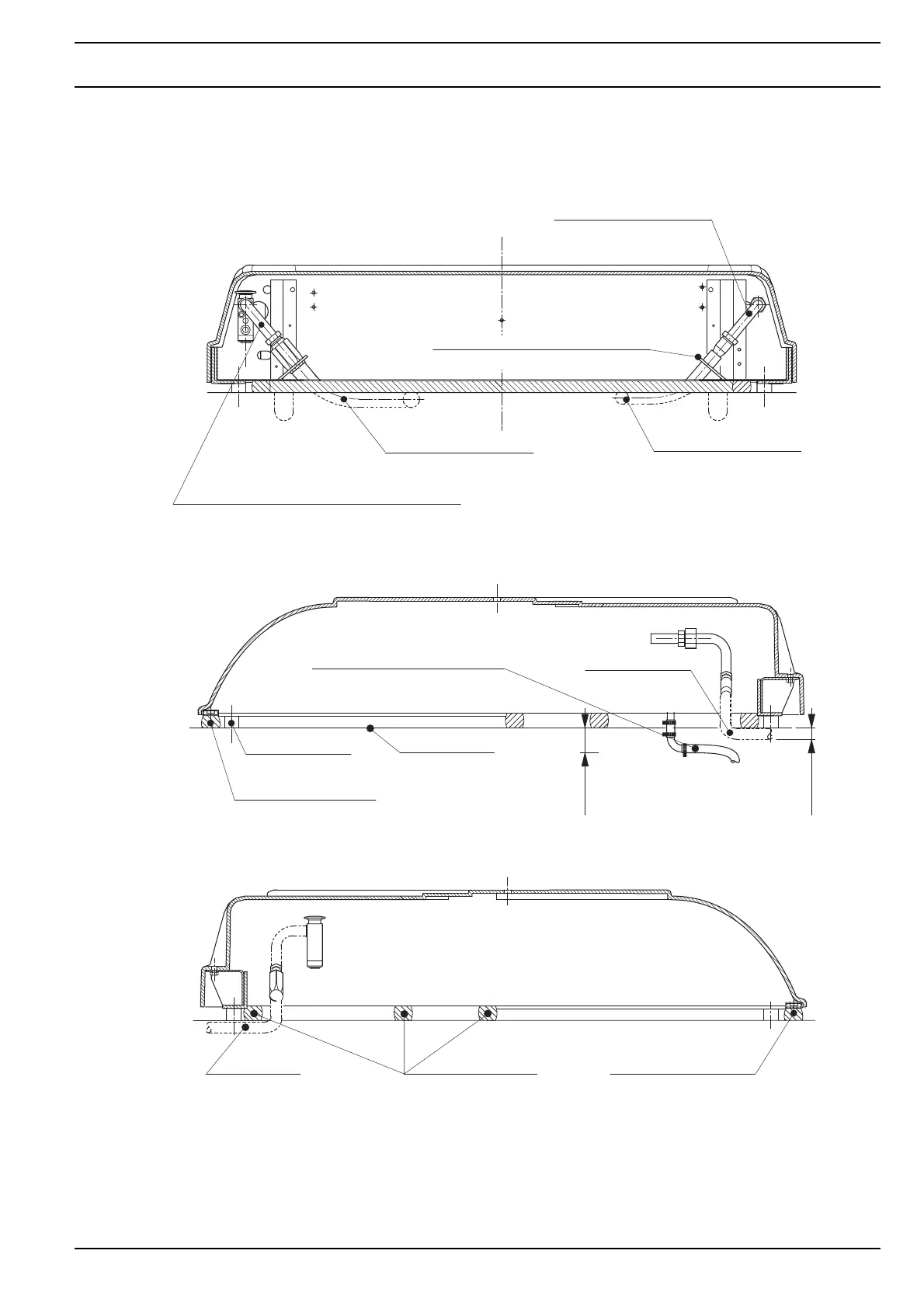

Fig. 401 Preparations on vehicle / cab roof (page 1 of 2)
Fig. 401 Preparations on vehicle / cab roof (page 2 of 2)
min 22.5
min 38
Compressed
sealing frame
Coolant hose
Distance piece
Ident No. 97562
Roof contour
schematic
shown
Condensation water hose
Ident. No. 97136 NW 13
R min 85
SECTION B - B
180° rotated
Coolant hose
SECTION C - C
Coolant hose NW12
R min 88.9 mm
Cable ties and edge protection
for fixing in position
SECTION A - A
Connection to expansion valve
with hose fitting NW16, 90° with flange,
OR ZSB, Ident. No. 65612
Coolant hose NW16
R min 114.3 mm
Connection with fitting
Ident. No. 98512
Armaflex/Eurobatex
dirt protection strip
Armaflex/Eurobatex
dirt protection strip
NOTE
Section A-A does not show the dirt
protection strip
