Operation / Installation Manual – FCF 5,000, 9,000, 12,000, 16,000
Page 15

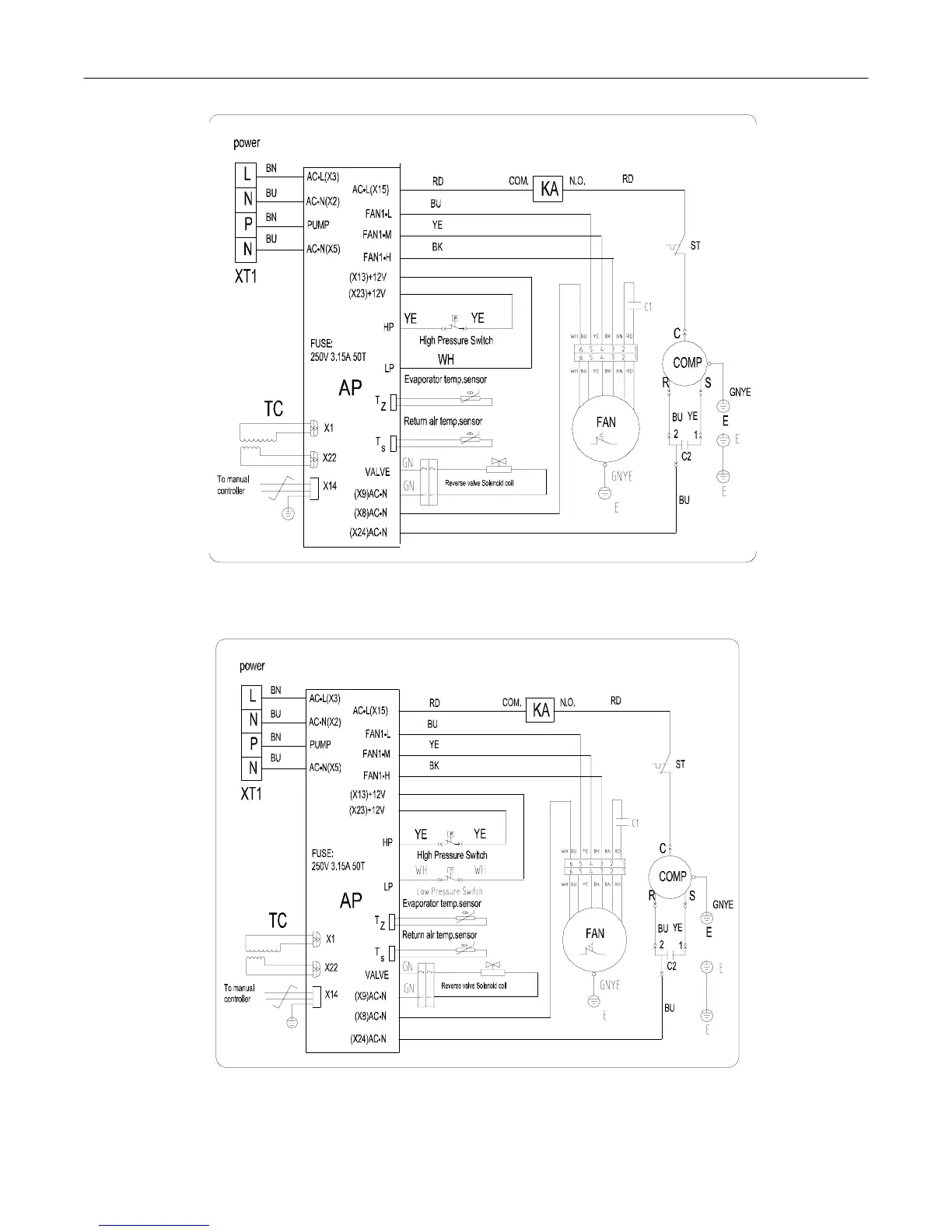

Wiring Diagram FCF 5,000 (115v/230v) – FCF 9,000 (115v/230v)
(FCF 9,000 230v comes with a Panasonic Compressor; all other model are equip with Samsung Compressors)
Wiring Diagram FCF 12,000 (115v/230v) – FCF 16,000 (115v/230v)
