Webasto Ford Transit - Control Panel Installation

22
London Ford Transit
Item
Number
Part Number Description Quantity
18
5012813A CONTROLLER - NEO 2 HVAC 1
35
5010321A
WIRE HARNESS - COOLANT PUMP 1
28
5012948A
WIRE HARNESS - HEATER CONTROL EXTENSION SEALED 1
33
5012876A WIRE HARNESS - BLOWER - 5500-8100mm 1
34
5012880A
WIRE HARNESS - NEO ADAPTER 1
29
5012643A
WIRE HARNESS - COMPRESSOR - 12,000mm 1
32
5012883A
WIRE HARNESS - EXTREME BOARD 1
27
5012587A
WIRE HARNESS - T-STAT or LOW PRESSURE SWITCH 1
20
5013072A BAG - CABLE TIES AND TRIM As needed
69 5013178 BAG - ELECTRICAL SMALL PARTS 1
36
5012447A
BATTERY CABLE - POWER 1
37
5012570A
BATTERY CABLE - GROUND 1
30
5012429A
WIRE HARNESS - LP-HP SWITCH 5,900mm 1
31
5012584A
WIRE HARNESS - CONDENSER FAN 2
Parts required for electrical installation:
NOTE: A dome-light bezel location was used
for this installation, the control panel can be
mounted in alternate locations.

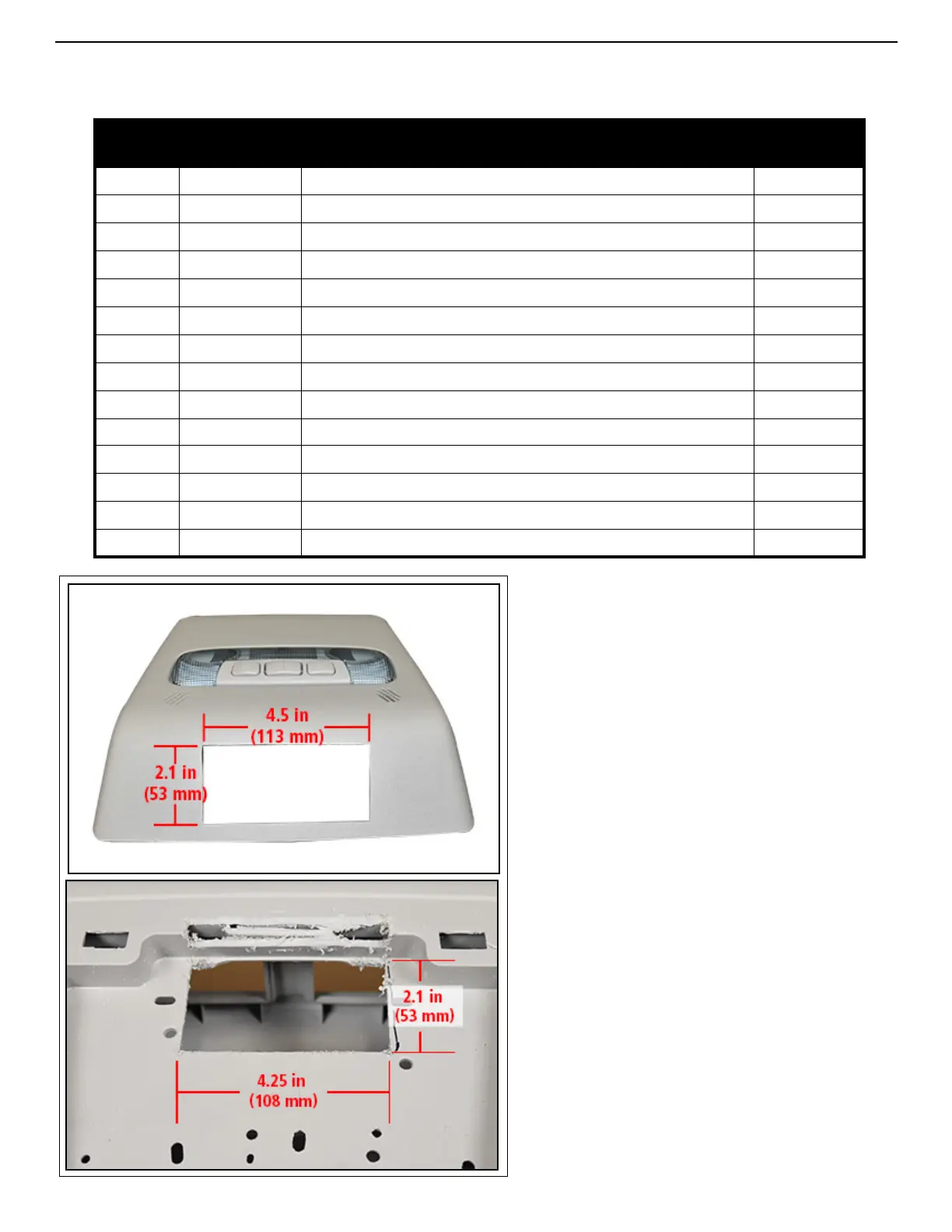

16.Cut the dome light bezel and panel to accept
the control panel. Install the NEO control panel
(18) in the dome light bezel.
