Installation

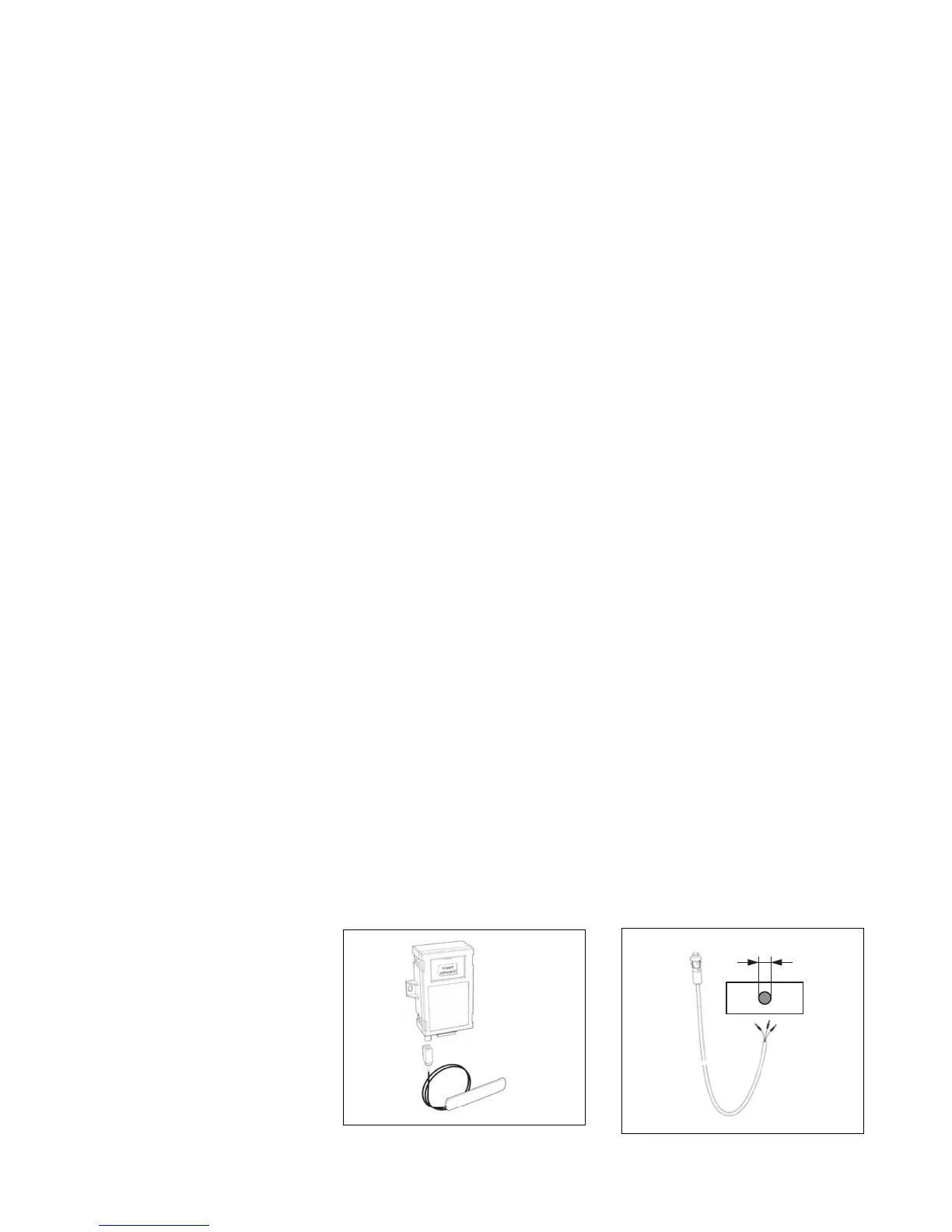

Installing GSM module
The GSM module must be installed in the
passenger compartment.
- Specify the installation location in the
passenger compartment (preferably un-
der the instrument panel, when retrofit-
ting preferably near the digital timer or
the radio receiver).
- Fasten the GSM module with self-tapping
screws (ensure sufficient clearance for the
connection of the wiring harness and the
antenna)
- Watch vehicle parts located behind the
module when mounting it with the self-
tapping screws!
NOTE
Please mark the installation location of the
GSM module on the last page of these instal-
lation instructions for any replacement of the
SIM card!
Installing GSM antenna
The antenna must be installed on the front or
rear window.
However, never in the tinted area or under
the heating wires of the window heater or
wires of the window antenna.
- Clean the window thoroughly with a
cleaning cloth
- Pull the protective film off the antenna and
glue on the antenna (maintain a minimum
distance of 30 mm from metal parts)
- Route the antenna cable to the GSM
module (never shorten or kink) and con-
nect to the module
Installing push button
The push button contained in the delivery
scope must be installed.
- To do this, drill an 8 mm dia. hole in a
blind switch or another suitable location
easily accessible to the driver (coordinate
the installation location with the vehicle
owner if necessary)
- Mount the push button in the 8 mm dia.
hole
- Route the push button wiring harness to
the 12-pin connector on the module and
connect it to the module (blue wire on Pin
9, green on Pin 10 and red on Pin 11)
8 mm dia.
