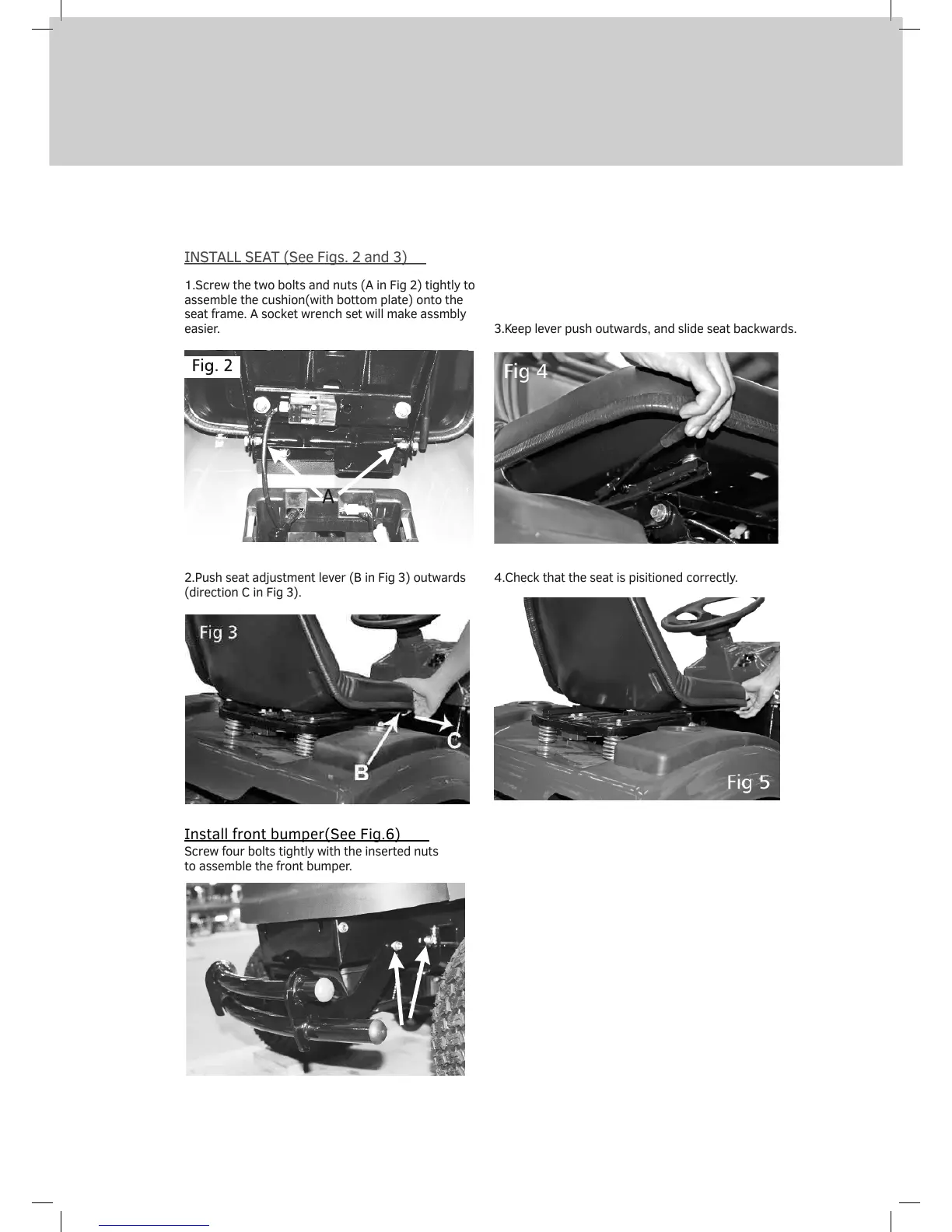

INSTALL SEAT (See Figs. 2 and 3)
1.Screw the two bolts and nuts (A in Fig 2) tightly to
assemble the cushion(with bottom plate) onto the
seat frame. A socket wrench set will make assmbly
easier.
2.Push seat adjustment lever (B in Fig 3) outwards
(direction C in Fig 3).
3)
3.Keep lever push outwards, and slide seat backwards.
4.Check that the seat is pisitioned correctly.
Install front bumper(See Fig.6)
Screw four bolts tightly with the inserted nuts
to assemble the front bumper.
A
.
