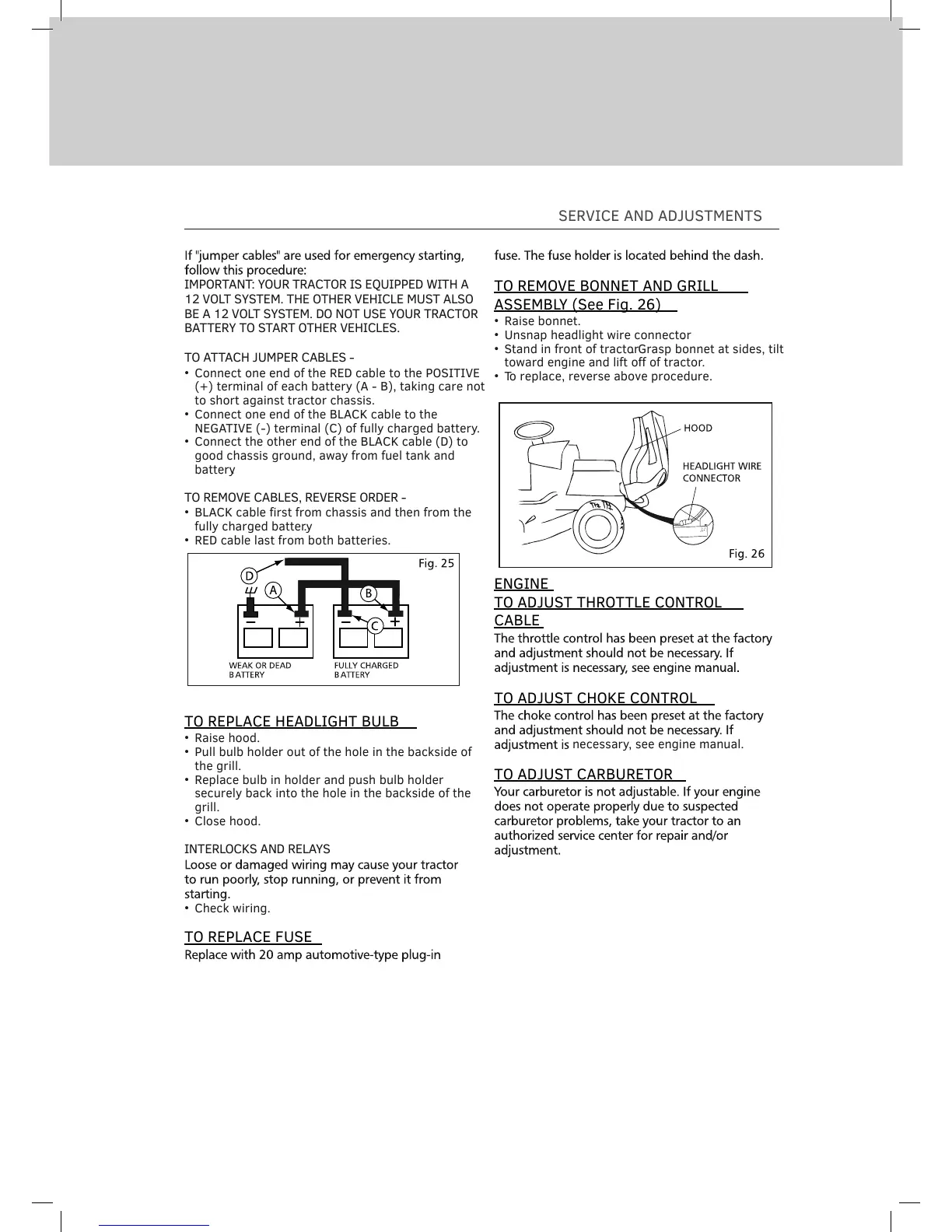

IMPORTANT: YOUR TRACTOR IS EQUIPPED WITH A
12 VOLT SYSTEM. THE OTHER VEHICLE MUST ALSO
BE A 12 VOLT SYSTEM. DO NOT USE YOUR TRACTOR
BATTERY TO START OTHER VEHICLES.
TO ATTACH JUMPER CABLES -
• Connect one end of the RED cable to the POSITIVE
(+) terminal of each battery (A - B), taking care not
to short against tractor chassis.
• Connect one end of the BLACK cable to the
NEGATIVE (-) terminal (C) of fully charged battery.
• Connect the other end of the BLACK cable (D) to
good chassis ground, away from fuel tank and
battery.
TO REMOVE CABLES, REVERSE ORDER -
• BLACK cable first from chassis and then from the
fully charged battery.
• RED cable last from both batteries.
TO REPLACE HEADLIGHT BULB
• Raise hood.
• Pull bulb holder out of the hole in the backside of
the grill.
• Replace bulb in holder and push bulb holder
securely back into the hole in the backside of the
grill.
• Close hood.
INTERLOCKS AND RELAYS
• Check wiring.
TO REPLACE FUSE
TO REMOVE BONNET AND GRILL
ASSEMBLY (See Fig. 26)
• Raise bonnet.
• Unsnap headlight wire connector.
• Stand in front of tractor. Grasp bonnet at sides, tilt
toward engine and lift off of tractor.
• To replace, reverse above procedure.
ENGINE
TO ADJUST THROTTLE CONTROL
CABLE
TO ADJUST CHOKE CONTROL
necessary, see engine manual.
TO ADJUST CARBURETOR
.
.
