Webb WEMC26 - PARTS LIST - WEMC26 Brushcutter

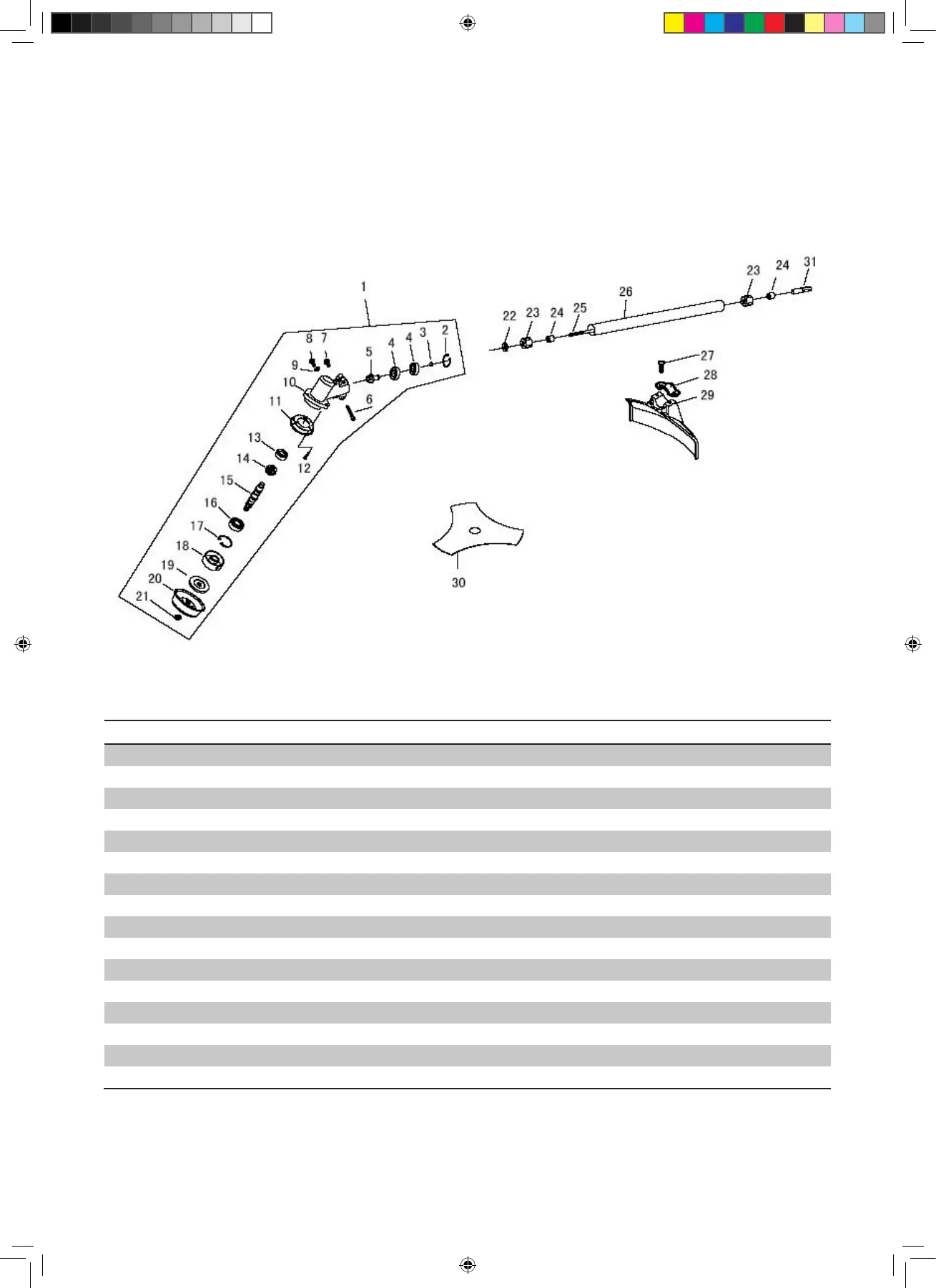

PARTS DIAGRAM - WEMC26 Brushcutter
PARTS LIST - WEMC26 Brushcutter
Item No Webb Part No Webb Description Qty Item No Webb Part No Webb Description Qty
1 WE61270030106 Gearhead Assembly 1 1-16 WE03090010019 Bearing 6201-2RS 1
1-2 WE03120020006 Retaining Ring 24 1 1-17 WE03120020001 Retaining Ring 32 1
1-3 WE03120010008 Retaining Ring 9 1 1-18 WE02020100024 Holder A 1
1-4 WE02060040143 Bearing 609-2Z/P5 2
1-19 WE02020100013 Holder B 1
1-5 WE02020090066 Gear 1 1-20 WE02020160305 Nut Cover 1
1-6 WE03020030022 Screw M6x25 1
1-21 WE03030070024 Nut M10*1.25 1
1-7 WE03020030017 Screw M5x12 1 22 WE02020150010 Locked Washer 1
1-8 WE03010030009 Bolt M6X10 1
23 WE02080020082 Rubber 3
1-9 WE03040050033 Washer 1 24 WE02040010005 Oil Bearing 3
1-10 WE70070010018 Gear Case 1
25 WE02020060021 Driveshaft 1
1-11 WE02020160234 Cover 1 26 WE02010010114 Shaft 1
1-12 WE03010060058 Screw M4x8 3
27 WE03020030024 Screw M6x20 2
1-13 WE03090010015 Bearing 6000-2RS 1 28 WE02020160202 Bracket 1
1-14 WE02020090015 Gear 1
29 WE70030030341 Safety Guard 1
1-15 WE02020090003 Gear Shaft 1 30 WE02020070002 Blade 1.4x230 1
31 WE02020160294 Joint B 1
PARTS DIAGRAM - WEMC26 Shaft & Sundries
PARTS LIST - WEMC26 Shaft & Sundries
Item
Part No
Webb Description
Qty
Item
Part No
Webb Description
Qty
1
WE02010010019
Shaft 24x1.5x750
1
21
WE70030160031
Handle Clamp
1
2
WE02020150010
Washer
1
22
WE61270040018
Trigger Assembly
1
3
WE02040010005
Oil Bearing
3
23
WE03010010029
Screw M5x14
1
4
WE02080020082
Rubber Cover
3
24
WE02020160213
Clamp
1
5
WE02020060020
Drive Shaft (785mm)
1
25
WE03030060008
Nut M5
3
6
WE70030180133
Harness Clamp
1
26
WE70030070164
Trigger Housing - Right
1
7
WE70030160007
Clamp
1
27
WE02080020054
Rubber Cover
1
8
WE03040030002
Washer 5
1
28
WE70030180090
Clamp
1
9
WE03010060053
Screw M5x20
1
29
WE03010010022
Screw M5x20
2
10
WE70030180089
Handle Wheel
1
30
WE02050050078
Stop Switch
1
11
WE70070090011
pipe jion
1
31
WE70030070047
Tine
1
12
WE03020030017
Screw(M5x12)
1
32
WE02020110039
Spring
1
13
WE03040020015
Washer 6
1
33
WE02020110041
Spring
1
14
WE03050010012
Washer 6
1
34
WE70030070172
Safety Lever
1
15
WE03010010024
Bolt M6x35
1
35
WE02020110041
Spring
1
16
WE03060030005
Pin
1
36
WE70030070074
Throttle Lever
1
17
WE02050060016
Harness
1
37
WE02050040045
Electrical Cable
1
18
WE61270090004
Handle Assembly
1
38
WE03010010046
Screw M5x30
1
19
WE03010010049
Screw M5x35
4
39
WE70030070216
Trigger Housing - Left
1
20
WE70030160079
Handle
1
40
WE03030010002
Nut M6
2
41
WE01040030002
Tube
1
