Webb WEMC26 - PARTS DIAGRAM - WEMC26 Hedgecutter; PARTS LIST - WEMC26 Hedgecutter

PARTS DIAGRAM - WEMC26 Line Trimmer
PARTS LIST - WEMC26 Line Trimmer
Item No
Webb Part No
Webb Description
Qty
Item No
Webb Part No
Webb Description
Qty
1
WE61270030043
Gearhead Assembly
1
20
WE02020150010
Locked Washer
1
1-2
WE03120020002
Retaining Ring 26
1
21
WE02080020006
Rubber
3
1-3
WE03120010001
Retaining Ring 10
1
22
WE02040010004
Oil-Bearing
3
1-4
WE03090010015
Bearing 609-2Z/P5
2
23
WE02020060112
Driveshaft
1
1-5
WE02020090098
Gear
1
24
WE02010010177
Shaft
1
1-6
WE03020030013
Screw M5x25
1
25
WE02020160731
Joint B
1
1-7
WE03020030017
Screw M6x12
2
26
WE03030010012
Nut M5
2
1-8
WE70070010031
Gear Case
1
27
WE03010010055
Screw M5x14
1
1-9
WE02020160080
Cover
1
28
WE70030030539
Bracket
1
1-10
WE03020020025
Screw M5x12
3
29
WE03010010061
Screw M5x20
2
1-11
WE03090010013
Bearing 6000-2RS
1
30
WE61270070058
Safety Guard Assembly
1
1-12
WE02020090012
Gear
1
30-31
WE70030030634
Safety Guard
1
1-13
WE02020090029
Gear Shaft
1
30-32
WE02010030001
Clamp
2
1-14
WE03090010013
Bearing 6201-2RS
1
30-33
WE03010110125
Screw M5x20
4
1-15
WE03120020001
Retaining Ring 32
1
30-34
WE03010040074
Screw
1
1-16
WE02020100020
Holder A
1
30-35
WE70030030469
Guard Shield
1
1-17
WE02020100012
Holder B
1
30-36
WE03010040024
Screw
2
1-18
WE03030010008
Nut M10x1.25
1
30-37
WE02020070102
Knife
1
1-19
WE03060020004
Pin 2x16
1
30-38
WE02080020110
Knife Cover
1
39
WE02050220026
Nylon Cutter Head
1

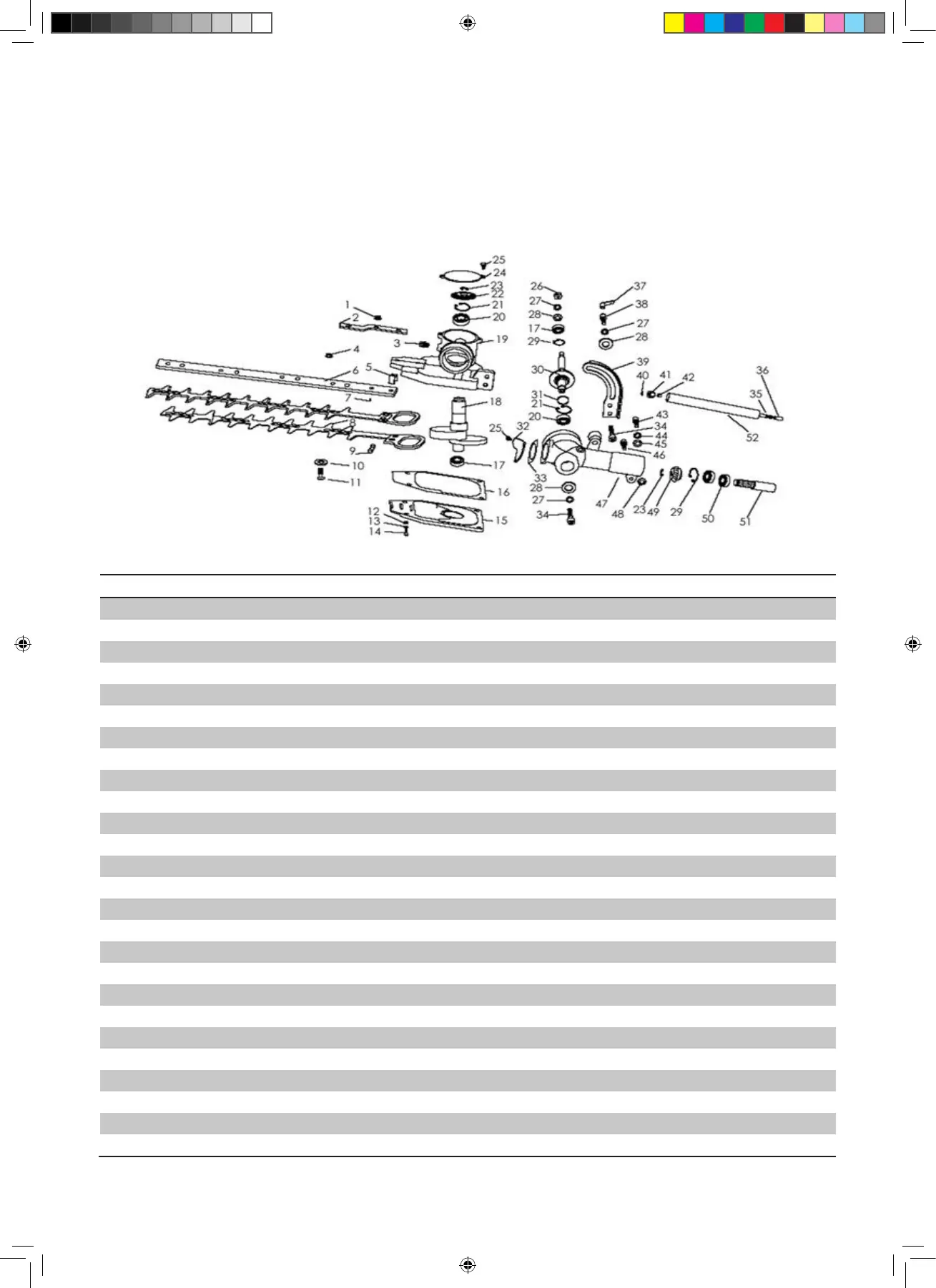

PARTS DIAGRAM - WEMC26 Hedgecutter
PARTS LIST - WEMC26 Hedgecutter
Item No Webb Part No Webb Description Qty Item No Webb Part No Webb Description Qty
1 WE03030060007 Nut M5 2 27 WE03050010012 Washer 6 3
2 WE02020160100 Frame 1 28 WE03040050050 Washer 6 3
3 WE03010110043 Grease Nipple 3 29 WE03120020007 Retaining Ring 22 2
4 WE03030060010 Nut M6 4
30 WE02020090014 Gear Shaft Assembly 1
5 WE02020160099 Clip 1 31 WE03110020004 Sealing Washer 41x3.5 1
6 WE02020070039 Blade Brace 1
32 WE02020160047 Gear Case Cover 1
7 WE03010110089 Screw M5x18 2 33 WE02070010103 Washer 1
8 WE02020070038 Blade Assembly 1
34 WE03010010037 Screw M6*14 3
9 WE02090030002 Felt 1 35 WE02020060021 Driveshaft 1
10 WE03040050055 Washer 6 4
36 WE02020160294 Joint B 1
11 WE03010110009 Bolt 4 37 WE70010050021 Angle Adjuster 1
12 WE03040020011 Washer 4 4
38 WE02020160304 Adjuster Screw 1
13 WE03050010016 Washer 4 4 39 WE02020070040 Angle Bracket 1
14 WE03010010026 Screw M4x12 4
40 WE02020150010 Washer 1
15 WE70070080058 Gear Case Cover 1 41 WE02080020082 Rubber Pipe 3
16 WE02070010054 Gear Case Gasket 1
42 WE02040010005 Oil Bearing 3
17 WE03090010005 Bearing 608-2RS 2 43 WE03010010010 Screw M5x25 1
18 WE02020090042 Blade Driver 1
44 WE03050010014 Washer 5 1
19 WE70070010013 Gear Case 1 45 WE03040020019 Washer 5 1
20 WE03090010015 Bearing 6000-2RS 2
46 WE03010010008 Sscrew M5x10 1
21 WE03120020002 Retaining Ring 26 2 47 WE70070010012 Gear Case 1
22 WE02020090016 Gear 1
48 WE03040050061 Washer 5 1
23 WE03120030005 Retaining Ring 6 2 49 WE02020090067 Gear 1
24 WE02110020009 Round Cover 1
50 WE03090010010 Bearing 6900-2Z/P5 2
25 WE03020010002 Screw M4x10 4 51 WE2020090138 Small Shaft 1
26 WE03030010003 Nut M6 1
52 WE02010010110 Shaft 1
