Webb WER18HW - Page 11

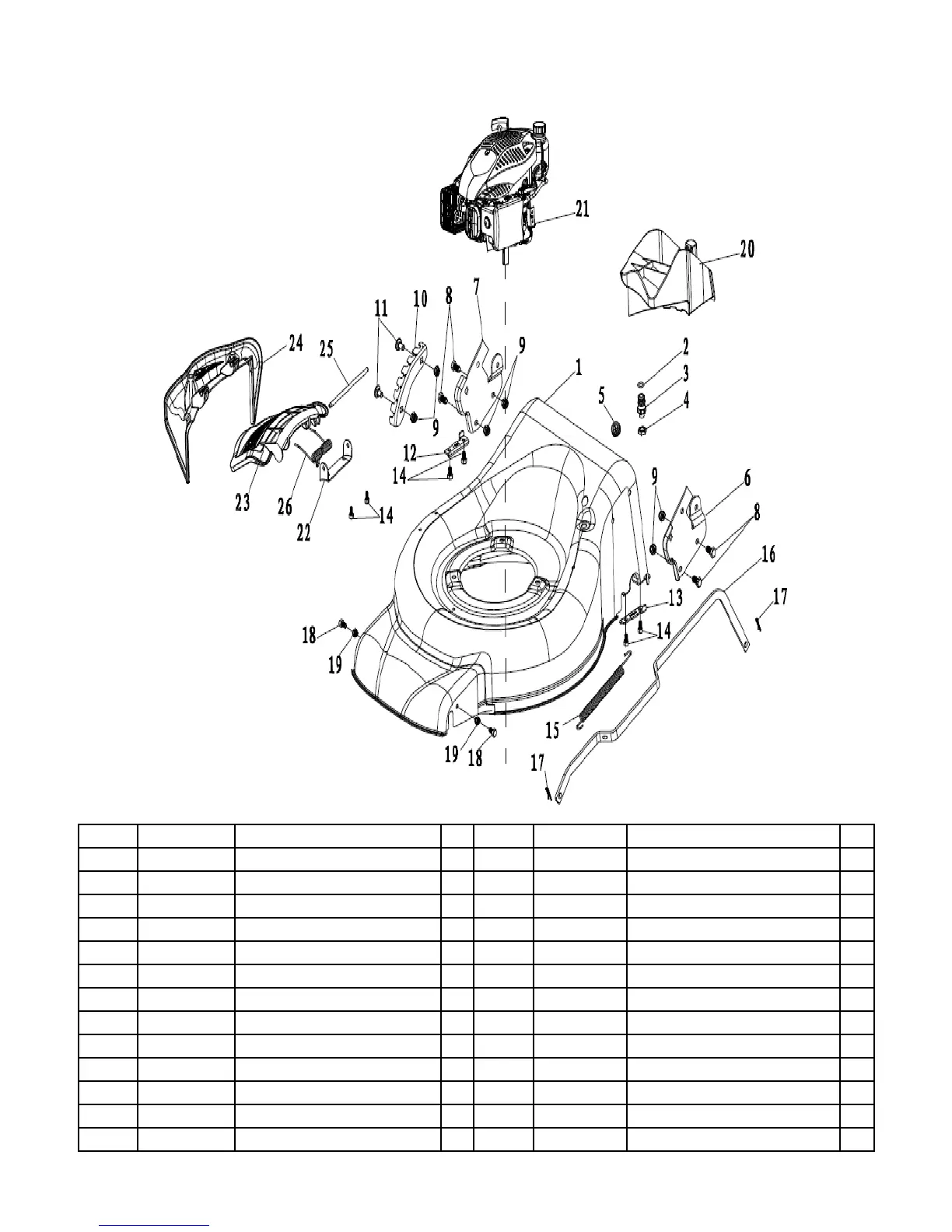

PARTS DIAGRAM - DECK ASSEMBLY
Item No Part Number Description Qty Item No Part Number Description Qty
1 WE115-1 Deck 1 14 WE113-37 Hex Self-Tapping screw M6x10 6
2 WE113-25 "O" Ring 11.2x2.65 1 15 WE113-38 Height Adjustment Spring 1
3 WE113-26 Inlet 1 16 WE113-39 Height Adjustment Rod 1
4
WE113-27
Pipe Connector Nut M12x1.25 1 17 WE113-40 R Pin 1.5x25 2
5
WE113-28
Cable Stopper 1 18 WE113-41 Bolt M6x12 2
6
WE113-29
Left Handle Bracket 1 19 WE113-42 Lock Nut M6 2
7
WE113-30
Right Handle Bracket 1 20 WE113-47 Mulch Plug 1
8
WE113-31
Hex Bolt M8x14 4 21 WE115-3 B&S 500E Petrol Engine 1
9
WE113-32
Lock Nut M8 6 22 WE115-4 Side Discharge Bracket 1
10
WE115-2
Height Adjustment Board 1 23 WE115-5 Side Discharge Cover 1
11
WE113-34
Square Neck Bolt M8x15/8.8 2 24 WE115-6 Side Discharge Chute 1
12
WE113-35
Rear Drive Right Bracket 1 25 WE115-7 Side Discharge Shaft 1
13
WE113-36
Rear Drive Left Bracket 1 26 WE115-8 Side Discharge Spring 1
