GRASS COLLECTOR
ASSEMBLY

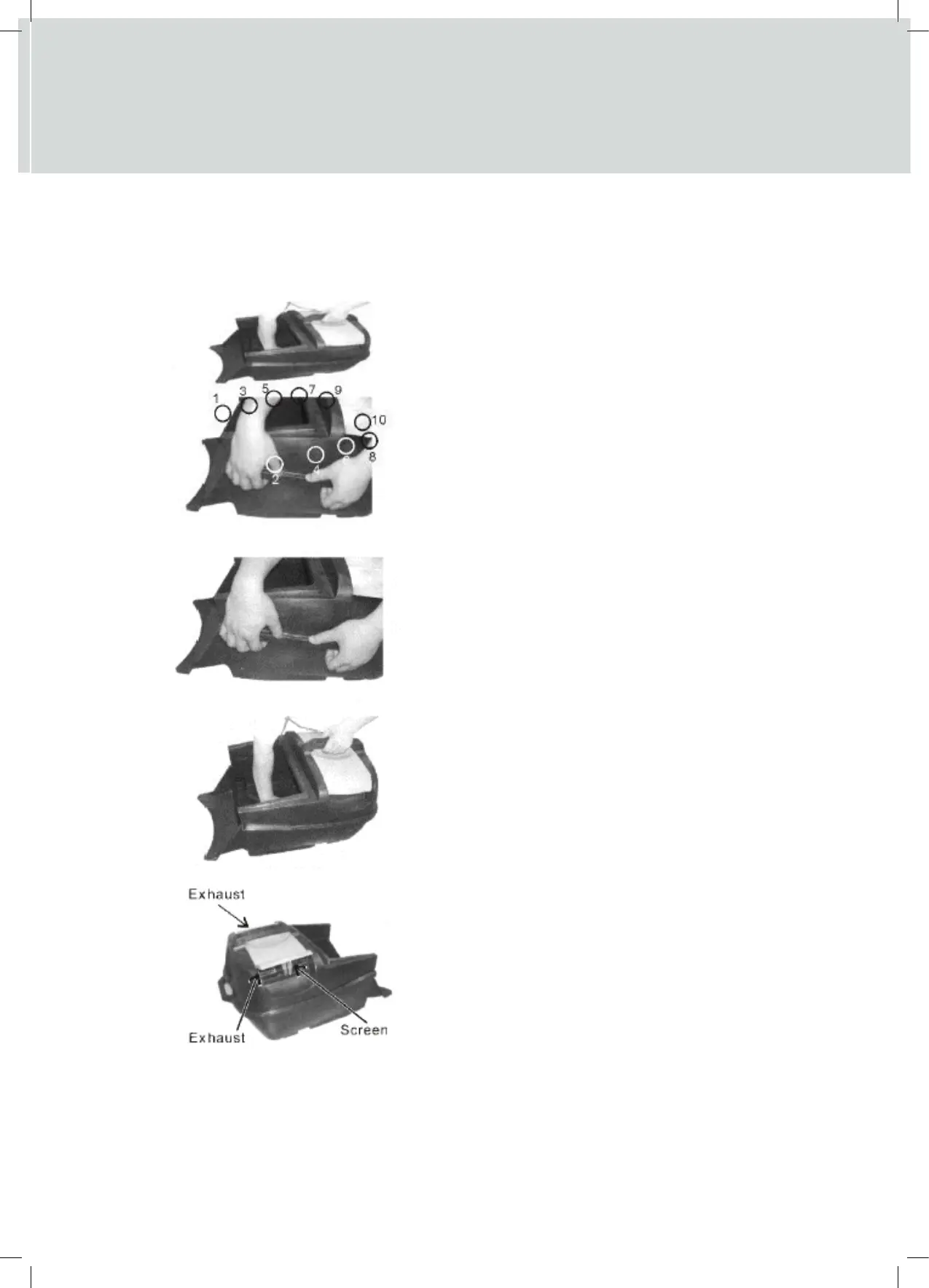

1. Assemble the grass collector following the below steps:
Step 1:
Position the upper and lower sections of the grass
collector.
Align the lugs marked 1 & 2 of the lower section to
the front of the upper section.
Place the collector on the ground and apply
downward pressure to secure the two sections.
Always start the assembly at the front and work
round the collector.
Step 2:
Continue working from the front and push each lug
into position until completed.
WARNING: Do not hit the collector with your hand
or any hand tool, this will break the collector.
Step 3:
Before fitting the collector to the machine, check
that all the lugs are positioned correctly and secure.
To test, hold the collector and apply downward
pressure to the base of the mesh collector.
Step 4:
Regular cleaning of the collector, will ensure that
maximum collection is achieved at all times.
Clean all vents and screens.
