Webb WEV20LT - Parts Diagram and List; Exploded View of Machine Components

PARTS LIST
Item
No
Webb Part No.
Webb Description
Qty
1
WE188-301063368A
Left Handle
1
2
WE188-301051100M
Safety Button
1
3
WE188-102020315
Switch
1
4
WE188-301062665M
ON/OFF Trigger
1
5
WE143-103060183
Safety Button Spring
2
6
WE188-102080685
Spring Line Assembly
1
7
WE188-301063370
Battery Insert Assembly
1
8
WE188-102080684
Internal Wiring Assembly
1
9
WE188-301063369A
Right Handle
1
10
WE123-104030161
Self-Tapping Screw
23
11
WE188-301029498
Front Handle Grip
1
12
WE132-301029419
Front Handle Lower
1
13
WE188-301023043Z
Front Handle Button Right
1
14
WE143-103060028
Adjuster Spring
1
15
WE188-301023045Z
Front Handle Button Left
1
16
WE123-301990135
Pressing Line Plate
1
17
WE188-4040109A
Telescopic Tube Assembly
1
18
WE188-301029421A
Right Shaft Case
1
19
WE143-301062817
Right Motor Housing
1
20
WE188-301070624AC
Rotary Button
1
21
WE143-104030309
Self-Tapping Screw
2
22
WE132-301029422
Rotating Joint
1
23
WE143-103060271
Button Spring
1
24
WE132-103060096
Connector Spring
1
25
WE143-301062818
Left Motor Housing
1
26
WE188-301029420A
Left Shaft Case
1
27
WE188-301070617AA
Head Adjuster Button
1
28
WE188-301062819F
Motor Cover
1
29
WE143-105020063
Rubber Insert
2
30
WE188-102010674
DC Motor
1
31
WE143-301026200
Motor Isolation Plate
1
32
WE143-104030334
Flat Head Screw
2
33
WE143-103990741
Balance Block Assembly
1
34
WE134-104010043
Washer 15x8.2x0.3
1
35
WE143-103060261
Slider Spring
1
36
WE143-301062820
Spool Housing Assembly
1
37
WE143-104050006
Shaft Ring
1
38
WE143-301029312
Edger Wheel
1
39
WE143-301062821
Guard Assembly
1
40
WE188-301100049
Spool & Line Assembly
1
41
WE143-103990789
Plant Guard
1
42
WE188-301029461D
Spool Cover
1
43
WEV20C
20v Charger
1
44
WEV20B2
20v Battery
1
45
WE125-104030423
ST4.2x18 Screw
1

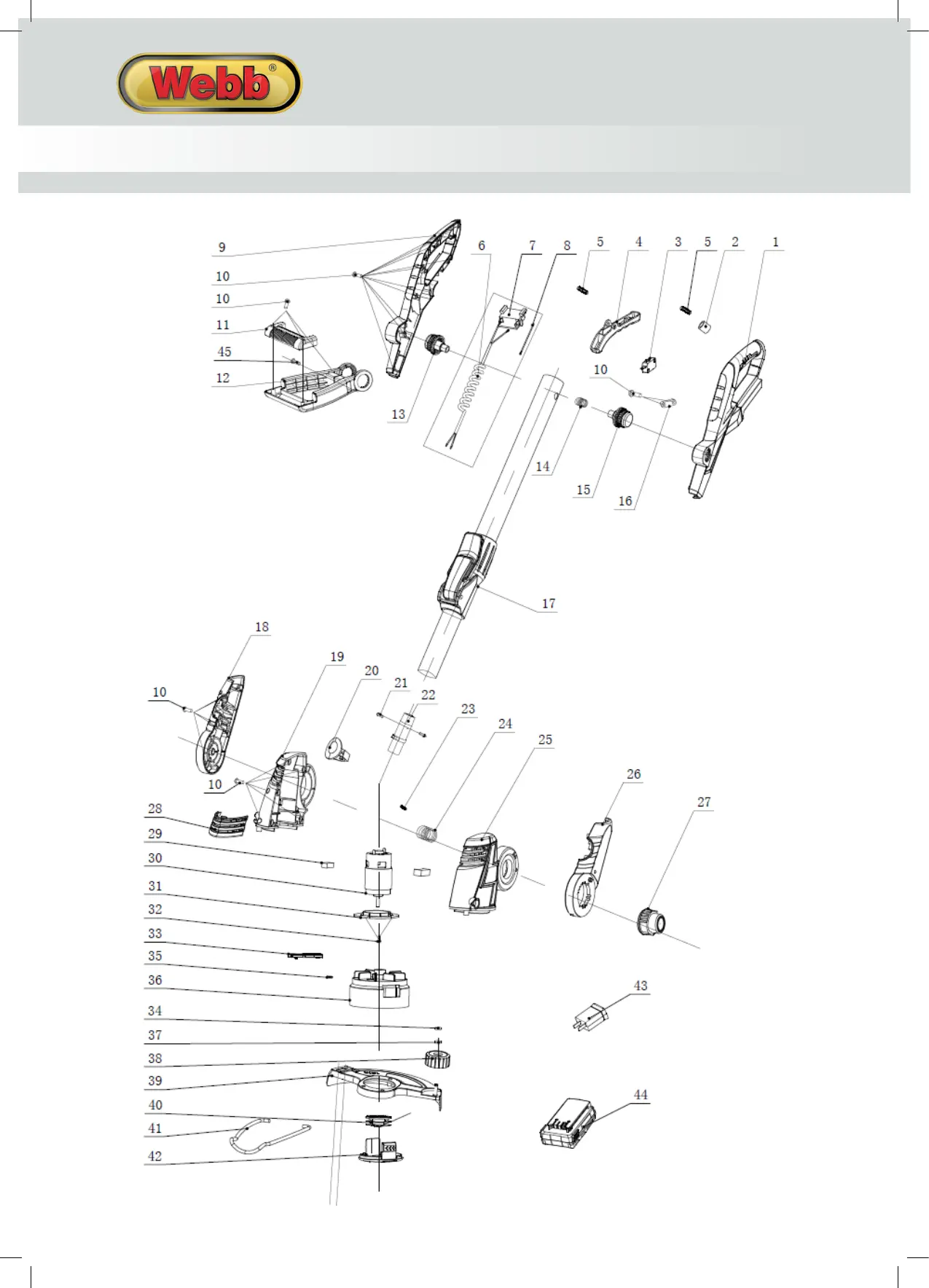

PARTS DIAGRAM
