Weber 1400 - Page 4

4
1. Lid
2. Ceramic Spacer/Plastic Spacer
3. Handle
4. Cooking Grate
5. Heat Element Assembly
6. Heat Element Support
7. Controller Bracket Sleeve
8. Controller
9. Cookbox
10. Handle
11. Rear Cradle
12. Cradle Logo
13. Front Cradle
14. Disposable Drip Pan
15. Wire Hanger
16. Catch Pan

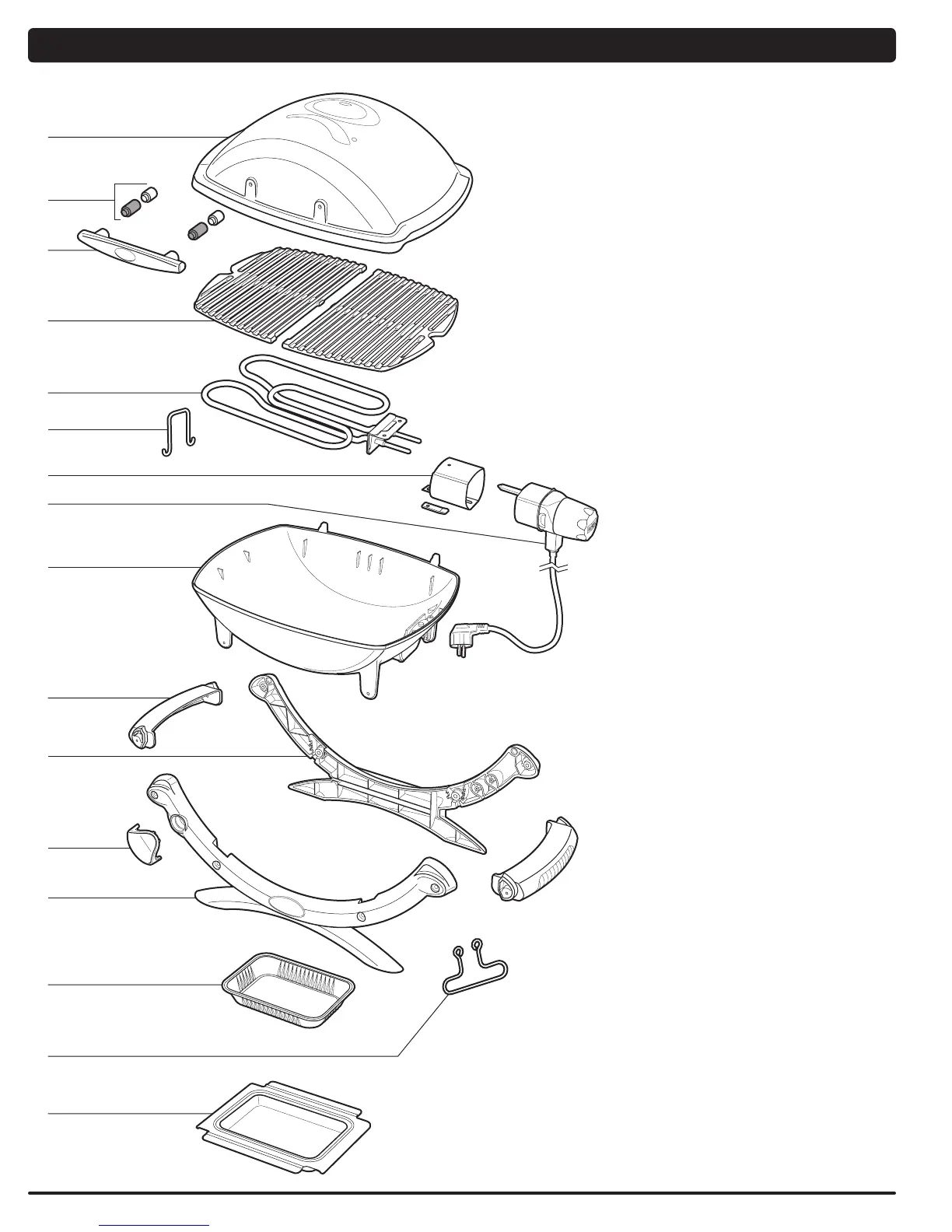

EXPLODED VIEW - Q
®
1400
Q1400_ELECTRIC_EURO_061013
1
2
3
4
7
5
6
8
10
11
13
12
9
14
16
15
