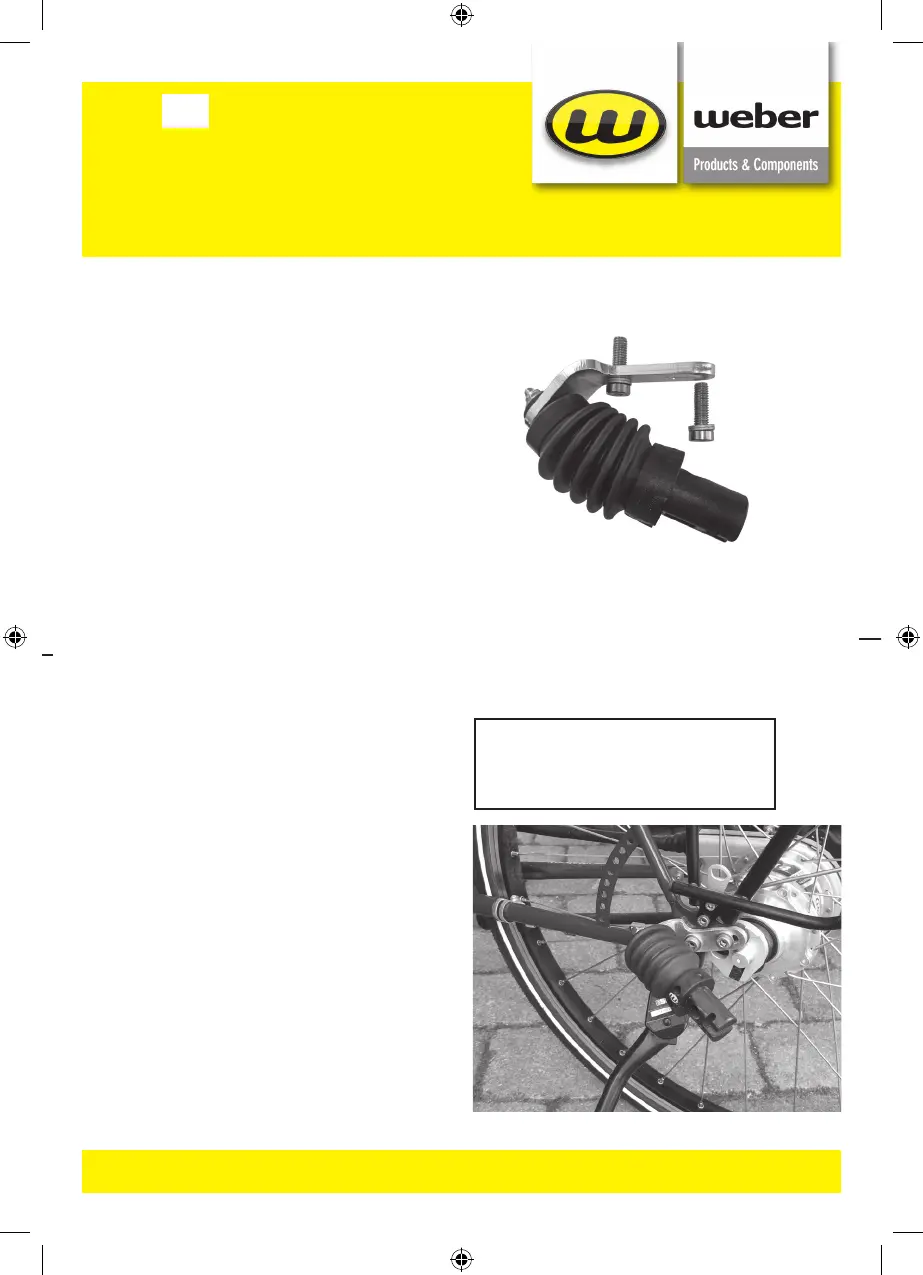

Bicycle trailer – HITCH ER
1. Carefully loosen the screws of the left Rohloff
dropout on your bike. The dropout should not
shift in the process.
2. Put the “ER” hitch on the dropout from the
outside.
3. Screw the “ER” hitch and the dropout rmly
on the frame with the supplied screws and Nor-
dlock® washers. Attention: The supplied thrust
washers must be mounted between the screw
head and the hitch. They must not be left out!
4. Check that the rear wheel is straight in the
frame and if necessary, adjust the seat of the
dropout.
Important notice:
Please take care that the dropout doesn’t shift
during the assembly.
Installation ER HITCH
The ER-hitch is a special version of the popular
E-hitch from WEBER TECHNIK.
Hitch “ER” for Rohloff sliding dropouts.
Scope of delivery:
1x ER hitch
2x screws M8x25mm
2x Nordlock®
INSTALLATION INSTRUCTIONS AND SAFETY INFORMATION
Technical data:
EH-hitch:
allowabel total-weight: 80kg
maximum support load: 6,5 kg
Weight: 220 grams
