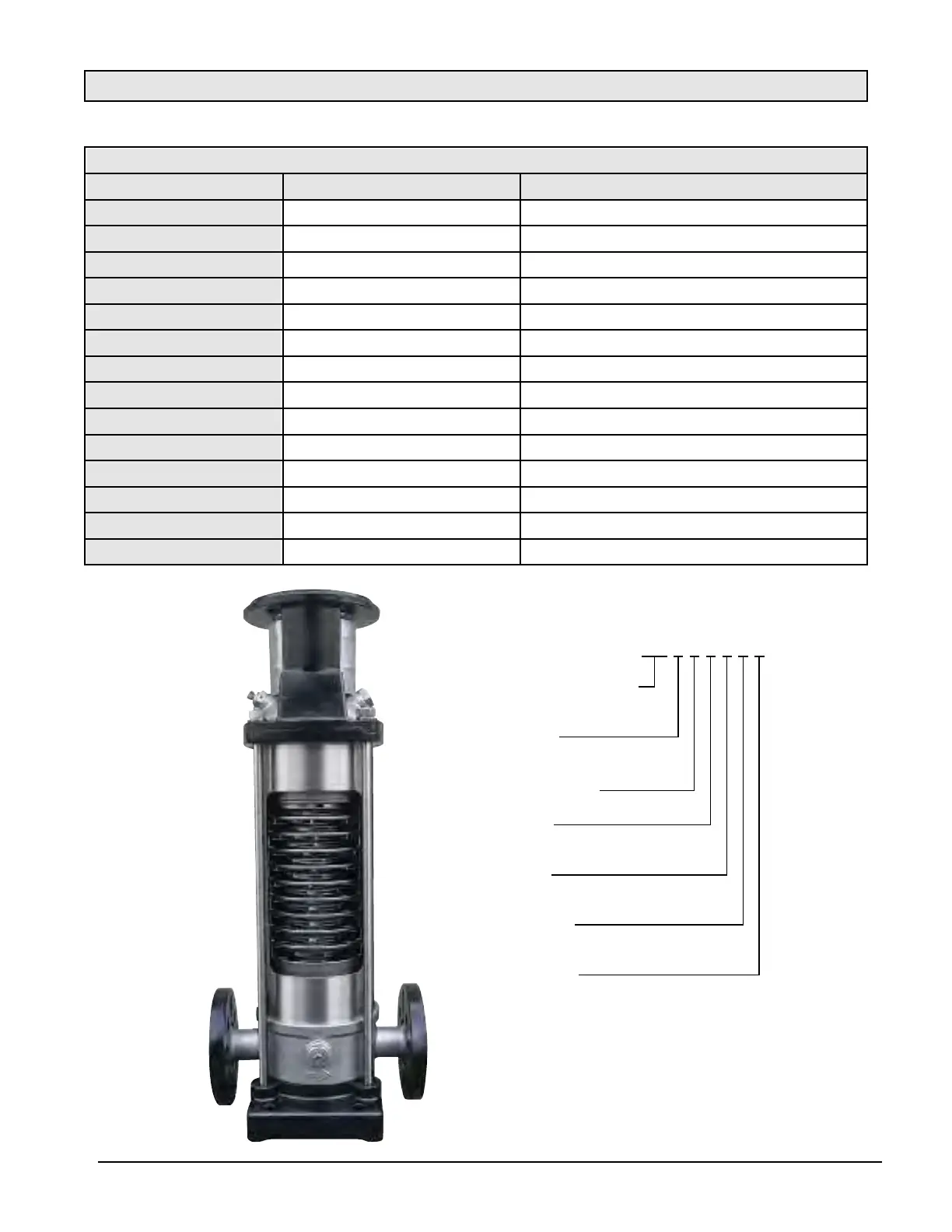

Sectional View Parts Breakdown

Part No. Part Name Material

Motor Bracket Cast Iron

2 Coupling Guard 304 SS

3 Motor Coupling Sintered Fe-Cu-C

4 Shaft 431 SS

5 Fill Plug 304 SS

6 Vent Plug 304 SS

7 Mechanical Seal Silicon Carbide / Silicon Carbide / EPDM

8 Pump Head 304 SS

9 Impeller 304 SS

10 Diffuser 304 SS

11 Casing 304 SS

12 Flange Cast Iron

13 Pump Discharge 304 SS

14 Base Cast Iron

MODEL NO.: N V 2 5 B 9 F E 3 T

Series/Nominal Rated Flow

(GPM)

Construction

B = 304SS S = 316SS

Number of Stages

Connection

F = Flanged V = Victaulic

Elastomers

E = EPDM V = Viton

Phase / Hz (PH)

1= 1PH / 60Hz 3 = 3PH / 60Hz

Motor Enclosure

D = ODP T = TEFC

Sectional View
