Wecon LX5V-2PTS-BD - Appearance and Terminal

2
3 Specification
(1) General specification: Same as PLC main unit. (Please refer to the accompanying manual of the PLC
main unit.)
(2) Power supply specification: The power supply is provided internally by PLC.

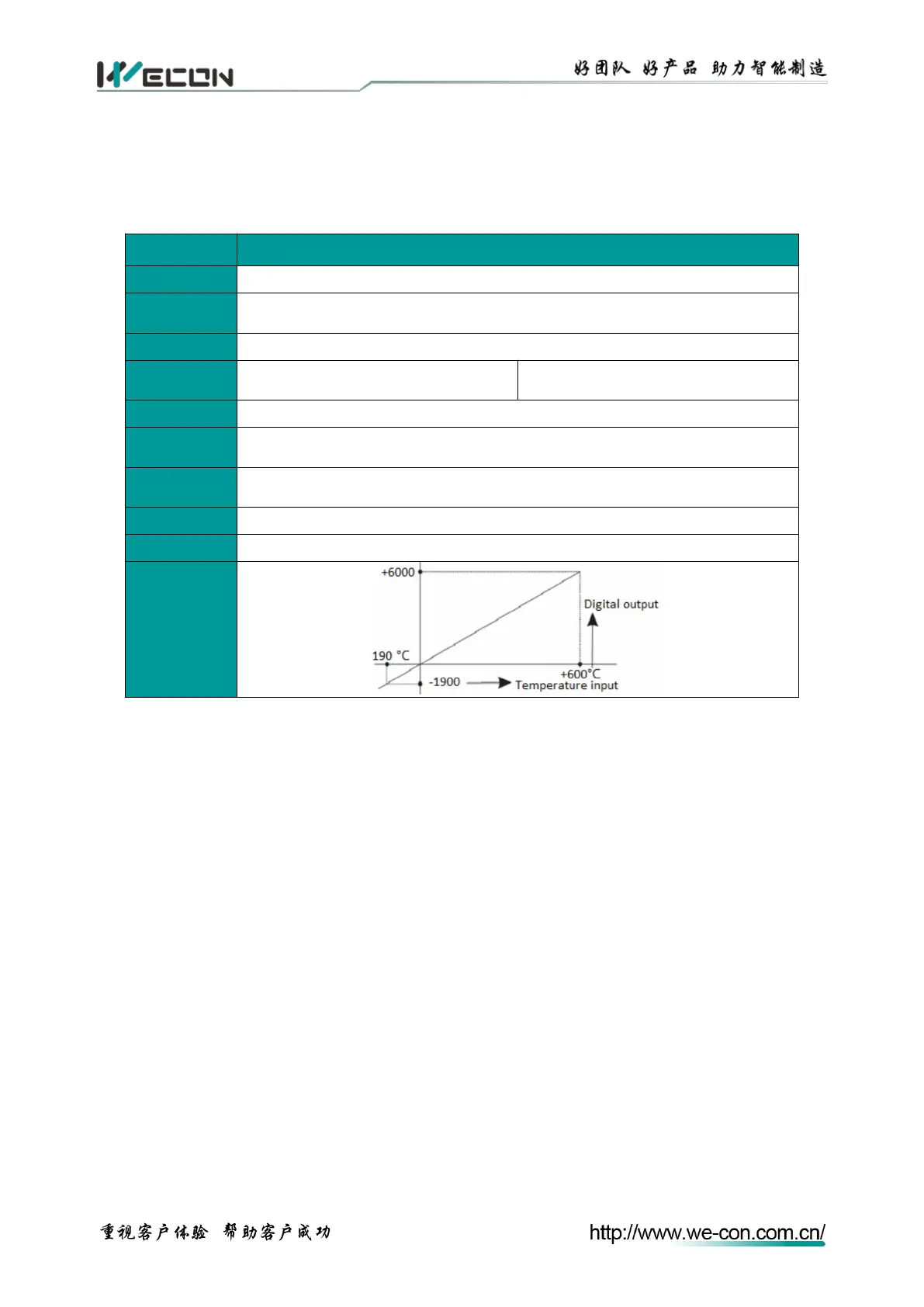

(3) Performance specifications:
Project
Description
Power supply
24VDC±10%, 50mA; 5VDC±10%, 70mA (The power supply is provided internally by host)
Analog input
signal
Platinum thermal resistance PT100 sensor (100Ω), 3-wire 2-channel (CH1, CH2)
Sensor current
1mA
Compensation
range
-190℃to600℃ (recommended range)
Over range display: 32767
Digital output
-2000to6100 (unit 0.1℃)—"maximum display range"
Measurement
accuracy
16-bit conversion 15 data bits +1 sign bit
Measurement
accuracy
0.05℃
Total accuracy
Full range ±0.5% (compensation range)
Conversion speed
2 channels 50ms
Conversion
features
