B600 Service Manual

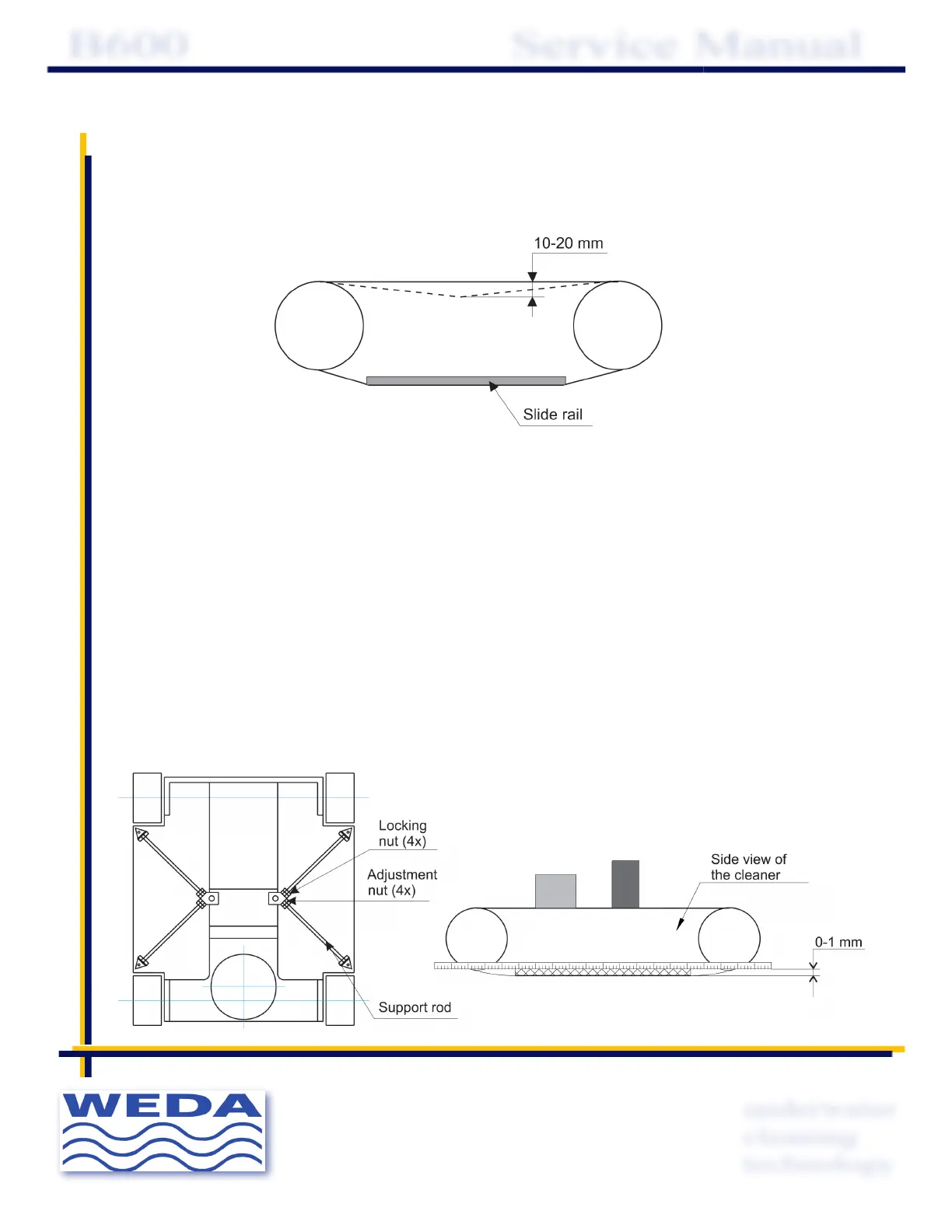

7.3 Drive track tension
The drive track tension can be adjusted by moving the rear wheel forwards or backwards.
Release the shaft slightly, adjust with the adjusting screws.
The drive track should have a play according to the picture.
7.4 Drive track pressure
To ensure that the machine turns and stop correctly the drive track pressure must be
concentrated on the slide rails along the base of the machine.
Position the cleaner on a at surface such as the transport trolley and ensure that the drive tracks
are tted.
1.Loosen the four locking nuts on the support rods at the bracket located on the pump housing.
2.Adjust the nuts against the bracket so that the support rods press the wheels down onto the
surface.
3.Now adjust the nuts until each whel has a maximun 1 mm gap between the track and the
surface.
4.Lock with the locking nuts .
