WHEELS & TIRES
KEY PART
NO. NO. DESCRIPTION
1 59192 Cap Valve Tire
2 65139 Stem Valve
3 106222X Tire F Ts 15 X 6 0 - 6 Service
4 59904 Tube Front (Service Item Only)
5 106732X427 Rim Asm 6"front White Service
6 278H Fitting Grease (Front Wheel Only)
7 9040H Bearing Flange (Front Wheel Only)
8 106108X427 Rim Asm 8"rear White Service
9 124635X Tire R Ts 18x8.5-8 C Service
10 7152J Tube Rear (Service Item Only)
11 104757X428 Cap Axle Blk 1 50 X 1 00
- - 144334 Sealant, Tire (10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
12 177430 Decal Fender
14 160396 Decal V-belt Schematic 42"
16 145005 Decal Battery Danger/Poison
20 64-1733-29 Decal HP Engine
- - 138311 Decal Lift Handle
- - 169210 Decal Bypass Lt Hydro
- - 177019 Manual Owner’s English
1 156868 Decal Instruction Operat English
2 162970 Decal Ins Strg Wh
3 164578 Decal Hood Rh
4 164579 Decal Hood Lh
7 164425 Decal Panel Side
9 171448 Decal Fender Logo
10 157002 Decal Danger English
11 4900J Decal Clutch/brake English
6
2
1
5,8
4,10
3,9
11
7

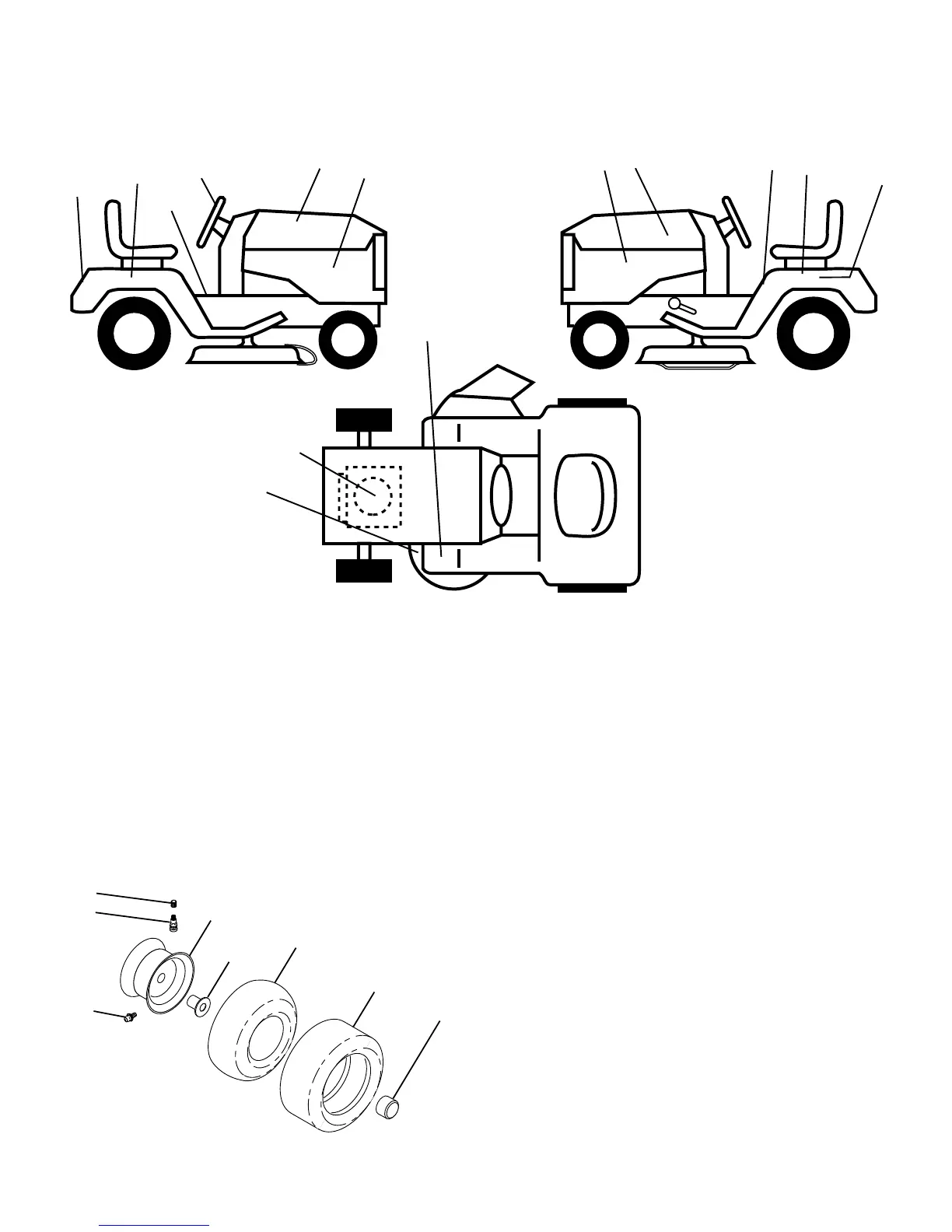

REPAIR PARTS
TRACTOR - - MODEL NUMBER S165H42A
DECALS
16
1
12
12
To Next Page
