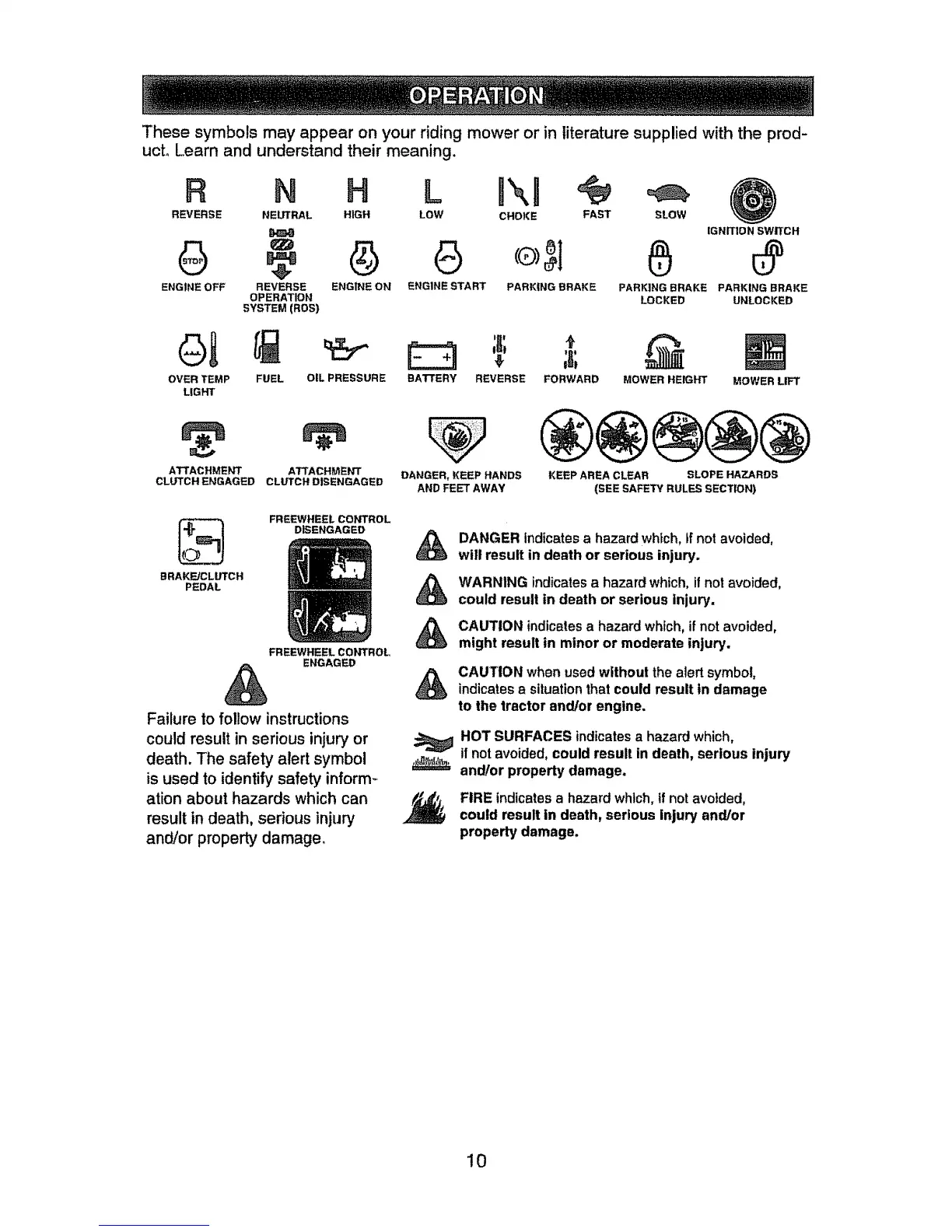

These symbols may appear on your riding mower or in literature supplied with the prod-
ucto Learn and understand their meaning,
R N H L I\B
REVERSE NEUTRAL HIGH LOW CHOKE FAST
8 8
ENGINE OFF REVERSE ENGINE Ohl ENGINE START PARK|FIG BRAKE
OPERATION
SYSTEM (ROS)
SLOW
IGNITION SWITCH
PARKING BRAKE PARKING BRAKE
LOCKED UNLOCKED
OVER TEMP FUEL
LIGHT
ATTACHMENT
CLUTCH ENGAGED
OIL PRESSURE BATTERY REVERSE
ATTACHMENT
CLUTCH DISENGAGED
DANGER, KEEP HANDS
AND FEET AWAY
o ,Q
FORWARD MOWER HEIGHT MOWER LIFT
®@@@@
KEEP AREA CLEAR SLOPE HAZARDS
(SEE SAFETY RULF._ SECTION)
BRAKFJCLUTCH
PEDAL
FREEWHEEL CONTROL
DISENGAGED
FREEWHEEL CONTROL
ENGAGED
Failure to follow instructions
could result in serious injury or
death. The safety alert symbol
is used to identify safety inform-
ation about hazards which can
result in death, serious injury
and!or property damage.
A
&
A
DANGER Indicates a hazard which,if not avoided,
will result in death or serious injury.
WARNING indicatesa hazardwhich,ifnotavoided,
could result in death or serious Injury.
CAUTION indicates a hazardwhich,if notavoided,
might result in minor or moderate injury.
CAUTION whenusedwithout thealertsymbol,
indicatesa situation thatcould result in damage
to the tractor and/or engine.
HOT SURFACES indicatesa hazardwhich,
ifnot avoided,could result in death, serious injury
and/or property damage.
FIRE indicatesa hazardwhich,if notavoided,
could result in death, serious injuryand/or
property damage.
