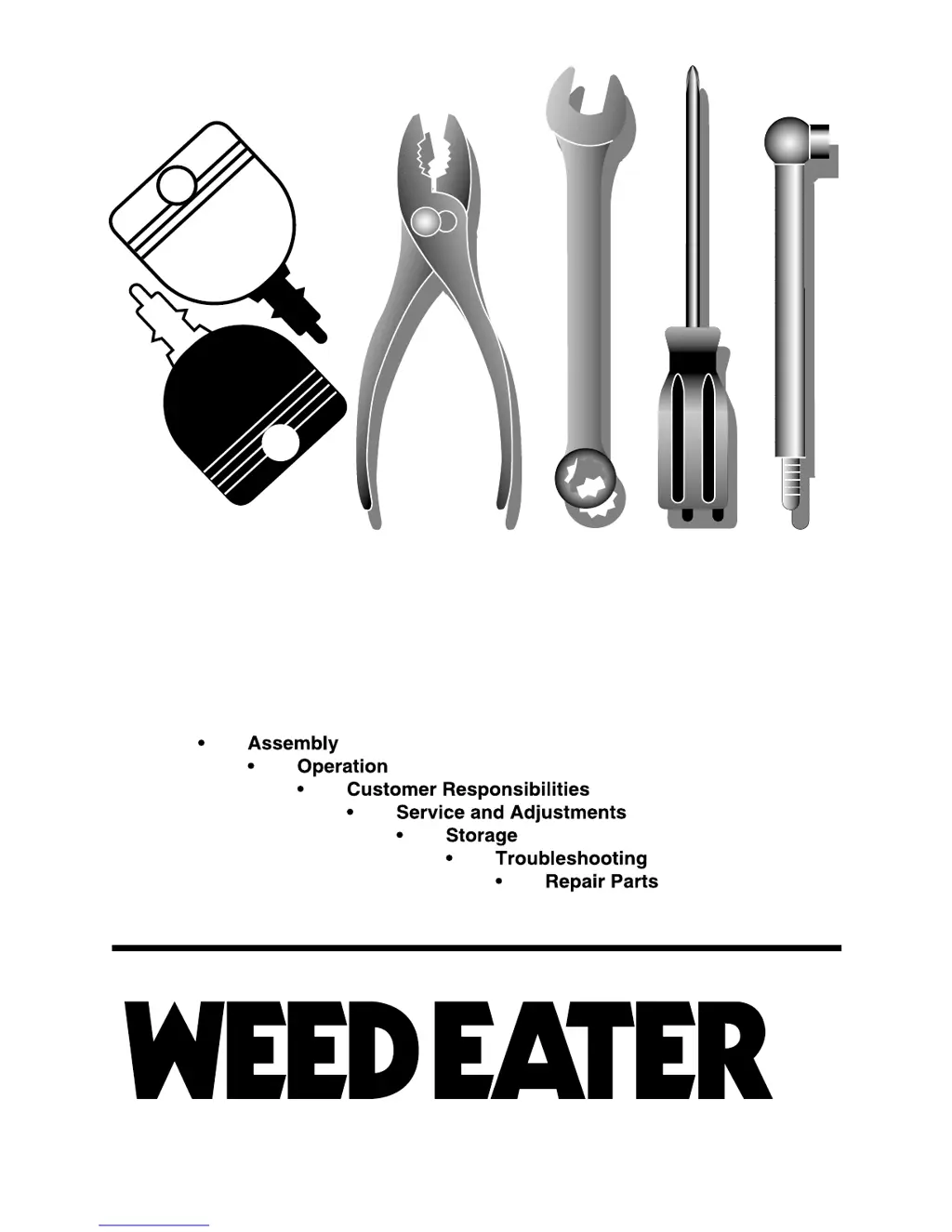

OWNER'S MANUAL
MODEL NO. S165H42C
16.5 HP 42 Inch
Lawn Tractor
For Parts and Service, contact our authorized distributor: call 1-800-849-1297
For Technical Assistance: call 1-800-829-5886
178704 Rev. 1 4.16.01 TR
PRINTED IN U.S.A.
®

Table of Contents

Questions and Answers

  • A
    Anthony RobinsonAug 17, 2025
    Why is my Weed Eater Lawn Mower hard to start?
    • A
      Alexander EdwardsAug 17, 2025
      Your Weed Eater Lawn Mower might be hard to start due to several reasons: * A dirty air filter, which requires cleaning or replacement. * A bad spark plug, which should be replaced. * A weak or dead battery, needing recharge or replacement. * A dirty fuel filter, which needs replacement. * Stale or dirty fuel, so you should drain the fuel tank and refill it with fresh gasoline. * Loose or damaged wiring, requiring a check of all wiring.
  • J
    Jessica AllenAug 20, 2025
    What to do if Weed Eater Lawn Mower engine will not turn over?
    • T
      Terrence RoseAug 20, 2025
      If the engine of your Weed Eater Lawn Mower won't turn over, it could be due to: * The clutch/brake pedal not being depressed; make sure to depress it. * The attachment clutch being engaged; disengage the attachment clutch. * A weak or dead battery; recharge or replace the battery. * A blown fuse; replace the fuse. * Corroded battery terminals; clean the battery terminals. * Loose or damaged wiring; check all wiring. * A faulty ignition switch; check or replace the ignition switch. * A faulty solenoid or starter; check or replace the solenoid or starter.
  • S
    sharon82Aug 23, 2025
    What causes Weed Eater S165H42C Lawn Mower engine to click but not start?
    • C
      Chad WoodAug 23, 2025
      If your Weed Eater Lawn Mower engine clicks but doesn't start, it could be due to: * A weak or dead battery; recharge or replace the battery. * Corroded battery terminals; clean the battery terminals. * Loose or damaged wiring; check all wiring. * A faulty solenoid or starter; check or replace the solenoid or starter.
  • J
    jgarciaAug 28, 2025
    Why does my Weed Eater S165H42C have excessive vibration?
    • K
      Karen PaulAug 28, 2025
      Excessive vibration in your Weed Eater Lawn Mower can be caused by: * A worn, bent, or loose blade; replace the blade and tighten the blade bolt. * A bent blade mandrel; replace the blade mandrel. * Loose or damaged parts; tighten loose parts and replace damaged parts.
  • J
    Jacob RobersonSep 2, 2025
    How to fix uneven cut with Weed Eater Lawn Mower?
    • B
      bradshawjasonSep 2, 2025
      An uneven cut with your Weed Eater Lawn Mower can be due to: * A worn, bent, or loose blade; replace the blade and tighten the blade bolt. * The mower deck not being level; level the mower deck. * Buildup of grass, leaves, and trash under the mower; clean the underside of the mower housing. * A bent blade mandrel; replace the blade mandrel. * Clogged mower deck vent holes from buildup of grass, leaves, and trash around mandrels; clean around mandrels to open vent holes.
  • C
    Christopher CampbellSep 5, 2025
    What causes Weed Eater S165H42C blades not to rotate?
    • G
      Greg TranSep 6, 2025
      If the blades of your Weed Eater Lawn Mower won't rotate, possible causes include: * An obstruction in the clutch mechanism; remove the obstruction. * A worn or damaged mower drive belt; replace the mower drive belt. * A frozen idler pulley; replace the idler pulley. * A frozen blade mandrel; replace the blade mandrel.
  • B
    Brandon RamirezSep 8, 2025
    Why are the headlights not working on my Weed Eater S165H42C?
    • J
      Jack OnealSep 8, 2025
      If the headlights on your Weed Eater Lawn Mower aren't working, check the following: * Ensure the switch is turned “ON”. * The bulb(s) or lamp(s) may be burned out; replace them. * There might be a faulty light switch; check or replace it. * There could be loose or damaged wiring; check the wiring and connections. * A blown fuse; replace the fuse.
  • G
    Gregory SmithSep 12, 2025
    What causes Weed Eater S165H42C Lawn Mower battery not to charge?
    • P
      Phillip LowerySep 12, 2025
      If your Weed Eater Lawn Mower battery will not charge, the issue may be: * Bad battery cells; replace the battery. * Poor cable connections; check and clean all connections. * A faulty regulator (if so equipped); replace the regulator. * A faulty alternator; replace the alternator.
  • M
    Matthew RivasSep 13, 2025
    Why does my Weed Eater S165H42C Lawn Mower engine backfire when turning it off?
    • M
      Melanie GrahamSep 13, 2025
      The Weed Eater Lawn Mower engine might backfire when turning it off if the engine throttle control is not set at the “SLOW” position for 30 seconds before stopping the engine. Move the throttle control to the “SLOW” position and allow it to idle for 30 seconds before stopping the engine.
  • M
    Michelle WilliamsNov 24, 2025
    What to do if Weed Eater S165H42C loses power?
    • D
      dorothy43Nov 24, 2025
      If your Weed Eater Lawn Mower loses power, consider these potential causes: * Cutting too much grass or moving too fast; set to a higher cut position or reduce speed. * The throttle is in the choke position; adjust the throttle control. * There's a build-up of grass, leaves, and trash under the mower; clean the underside of the mower housing. * The air filter is dirty; clean or replace the air filter. * The oil level is low or the oil is dirty; check the oil level or change the oil. * The spark plug is faulty; clean, regap, or change the spark plug. * The fuel filter is dirty; replace the fuel filter. * The fuel is stale or dirty; drain the fuel tank and refill with fresh gasoline. * There is water in the fuel; drain the fuel tank and carburetor, refill the tank with fre...

Summary

SAFETY RULES

GENERAL OPERATION

Guidance for safe operation of the tractor in various conditions.

SLOPE OPERATION

Precautions and practices for safe mowing on slopes.

CHILDREN

Safety instructions regarding children around the machine.

SERVICE

Safety recommendations for maintenance and repair tasks.

PRODUCT SPECIFICATIONS

UNASSEMBLED PARTS

ASSEMBLY

ATTACH STEERING WHEEL

Instructions for attaching the steering wheel assembly to the tractor.

HOW TO SET UP YOUR TRACTOR

Steps for initial setup of the tractor, including battery check.

INSTALL SEAT

Procedure for installing and adjusting the tractor seat.

TO ROLL TRACTOR OFF SKID

Steps for safely removing the tractor from its shipping skid.

CHECK TIRE PRESSURE

Ensuring tires are inflated to the correct pressure for optimal performance.

CHECK BRAKE SYSTEM

Verifying the proper adjustment and operation of the tractor's brake system.

OPERATION

KNOW YOUR TRACTOR

Familiarization with tractor controls and adjustments through illustrations.

HOW TO USE YOUR TRACTOR

General guidance on operating the tractor and its controls.

TO SET PARKING BRAKE

Instructions for engaging the parking brake to secure the tractor.

TO OPERATE ON HILLS

Safety guidelines and procedures for operating the tractor on slopes.

TO TRANSPORT

Instructions for preparing and moving the tractor for transport.

BEFORE STARTING THE ENGINE

Pre-start checks including engine oil and fuel.

TO START ENGINE

Step-by-step instructions for starting the tractor engine.

MOWING TIPS

Advice for achieving optimal mowing performance and cut quality.

CUSTOMER RESPONSIBILITIES

MAINTENANCE SCHEDULE

A schedule outlining routine maintenance tasks and their frequency.

LUBRICATION CHART

Diagram and instructions for lubricating tractor components.

BLADE CARE

Information on maintaining mower blades for best cutting results.

OPERATOR PRESENCE SYSTEM

Explanation of safety interlock systems for operator presence.

ENGINE

Details on engine oil requirements and change procedures.

AIR FILTER

Maintenance procedures for the engine's air filter.

CLEANING

Recommendations for cleaning the tractor's various components.

SERVICE AND ADJUSTMENTS

TO LEVEL MOWER HOUSING

Instructions for adjusting the mower deck for optimal cutting height.

SIDE-TO-SIDE ADJUSTMENT

Procedure for leveling the mower deck side-to-side.

TO ADJUST BRAKE

Steps for adjusting the tractor's braking system for proper stopping.

TO ADJUST STEERING WHEEL ALIGNMENT

Procedure for aligning the steering wheel for straight tracking.

REPLACING BATTERY

Step-by-step guide for replacing the tractor's battery.

TO ADJUST THROTTLE CONTROL CABLE

Instructions for adjusting the throttle control cable for proper engine speed.

TO ADJUST CARBURETOR

Guidance on adjusting the carburetor for engine performance.

STORAGE

ENGINE

Instructions for preparing the engine for storage, including fuel system.

OTHER

General recommendations for storing the tractor and its components.

TROUBLESHOOTING POINTS

Will not start

Common causes and corrections for engine starting failures.

Loss of power

Troubleshooting steps for reduced engine power and performance issues.

Mower blades will not rotate

Diagnosing and fixing issues where mower blades fail to turn.

Poor grass discharge

Identifying causes and solutions for uneven grass discharge.

SCHEMATIC

IGNITION SWITCH

Explanation of the ignition switch positions and related circuits.

REPAIR PARTS

ELECTRICAL

Diagram and list of electrical components for the tractor.

CHASSIS AND ENCLOSURES

Diagram and list of chassis and enclosure parts.

DRIVE

Diagram and list of drive system components.

STEERING ASSEMBLY

Diagram and list of steering system parts.

ENGINE

Diagram and list of engine components.

MOWER LIFT

Diagram and list of mower lift system parts.

SEAT ASSEMBLY

Diagram and list of seat assembly parts.

DECALS

List and location of all safety and identification decals on the tractor.

WHEELS & TIRES

Parts breakdown for the tractor's wheels and tires.

MOWER DECK

Diagram and list of mower deck components.

LIMITED WARRANTY

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

Weed Eater S165H42C Specifications

General IconGeneral
Engine Type4-Cycle
Power SourceGasoline
Cutting Width21 inches
Cutting Height1.25 to 3.75 inches
Fuel Tank Capacity0.5 gallons
