REPAIR PARTS
TRACTOR - - MODEL NUMBER WE165T42A, PRODUCT NO. 954 57 07-96

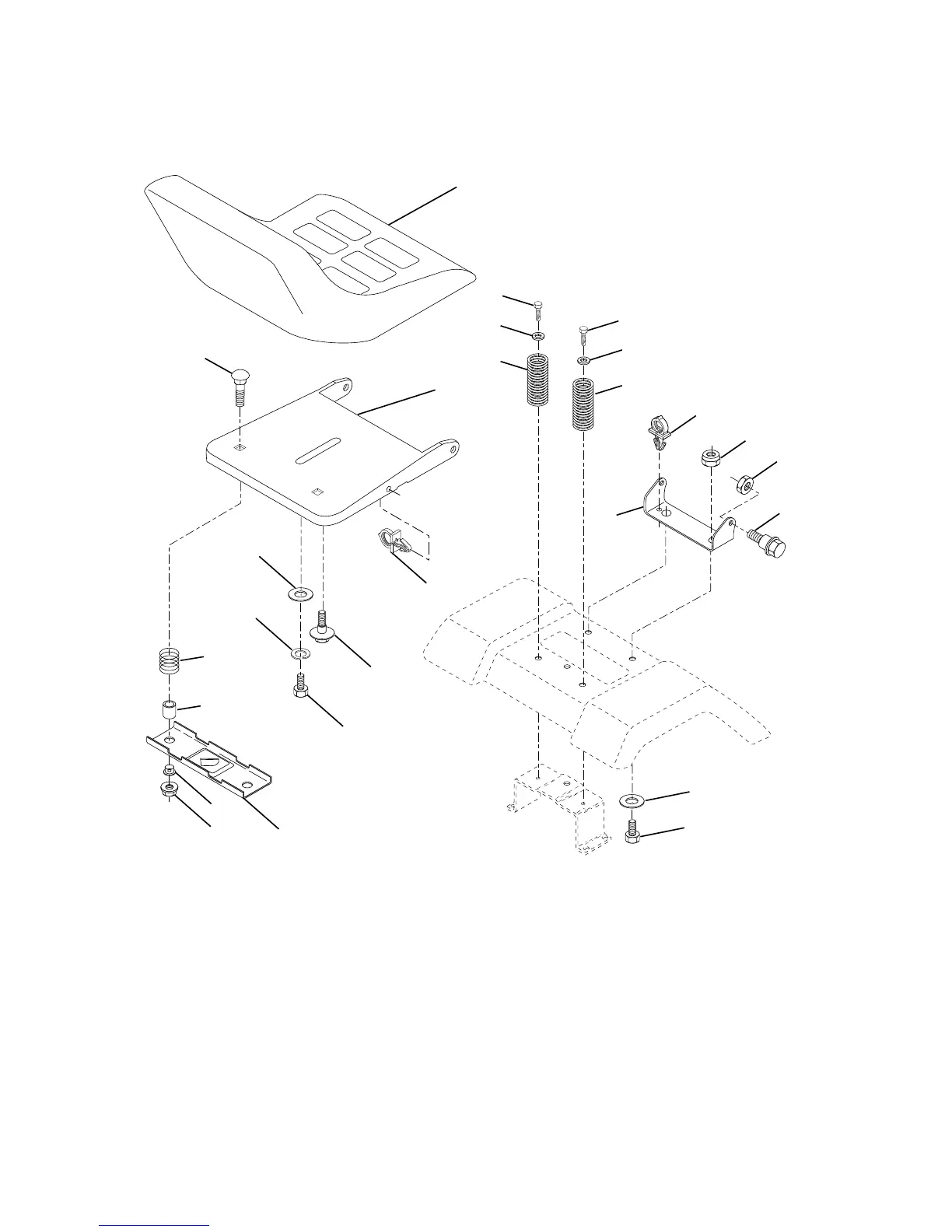

SEAT ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
14 72050412 Bolt Rdhd Sht Nk 1/4-20 x 1-1/2
15 134300 Spac er Split 28 x 96 Yel Zinc
16 121250X Spring Cprsn 1 27 Blk Pnt
17 123976X Nut Lock 1/4 Lge Flg Gr 5 Zinc
21 171852 Bolt Shoulder 5/16-18 Unc Blkz-2A
22 73800500 Nut
23 71110814 Bolt Hex Black
24 19171912 Wash er 17/32 x 1-3/16 x 12 Ga
25 127018X Bolt Shoulder 5/16-18 x 62
26 10040800 Lockwasher
26
23
1
24
16
15
12
13
17
25
4
3
8
9
7
8
9
7
2
6
22
21
5
10
5
14
1 140116 Seat
2 140551 Brack et Pnt Pivot Seat (blk )
3 71110616 Bolt
4 19131610 Wash er 13/32 x 1 x 10 Ga
5 145006 Clip Push-In Hinged
6 73800600 Nut
7 124181X Spring Seat Cprsn 2 250 Blk Zi
8 17000616 Screw 3/8-16 x 1
9 19131614 Wash er 13/32 x 1 x 14 Ga
10 182493 Pan Pnt Seat
12 121246X Brack et Pnt Mounting Switch
13 121248X Bush ing Snap Blk Nyl 50 Id
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
To Next Page
