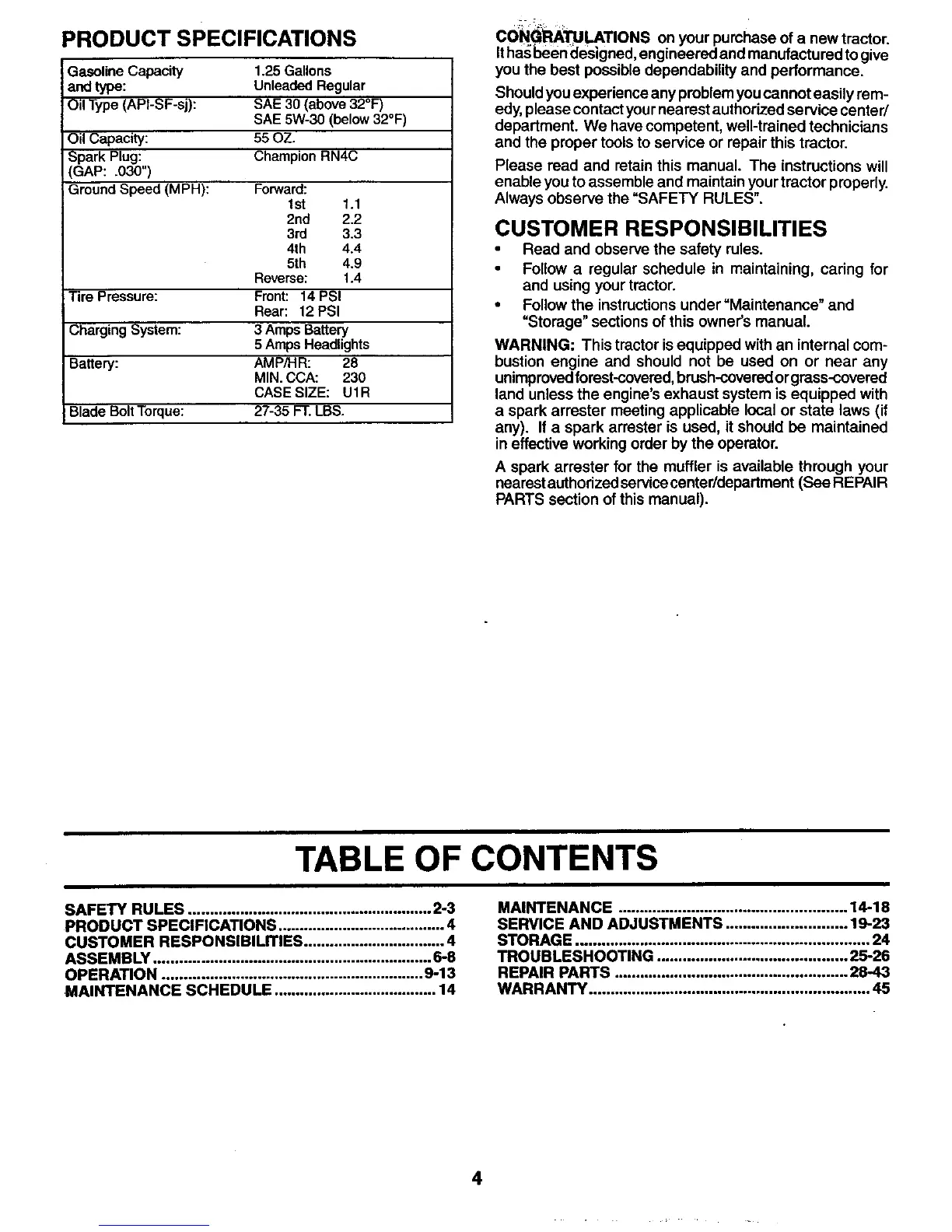

PRODUCT SPECIFICATIONS
GasolineCapacity
and type:
Oil Type (API-SF-sj):
1.25 Gallons
Unleaded Regular
SAE 30 (above 32°F)
SAE 5W-30 (below 32°F)
Oil Capacity: 55 OZ.
Spark Plug: Champion RN4C
(GAP: .030")
Ground Speed (MPH): Forward:
tst 1.1
2nd 2.2
3rd 3.3
4th 4.4
5th 4.9
Reverse: 1.4
Tire Pressure: Front: 14 PSI
Rear: 12 PSI
Charging System: 3 Amps Battery
5 Amps Headlights
Battery: AMP/HR: 28
MIN. CCA: 230
CASE SIZE: UtR
iBlade Bolt Torque: 27-35 FT. LBS.
CONGRATUL._,TIONS on your purchase of a new tractor.
Ithas been cleslgned,engineered and manufactured togive
you the best possible dependability and performance.
Shouldyou experience any problemyoucannot easily ram-
edy,pleasecontact your nearest authorized service center/
department. We have competent, well-trained technicians
and the proper tools to service or repair this tractor.
Please read and retain this manual. The instructions will
enable you to assemble and maintain yourtractor properly.
Always observe the "SAFETY RULES".
CUSTOMER RESPONSIBILITIES
Read and observe the safety rules.
• Follow a regular schedule in maintaining, caring for
and using your tractor.
• Follow the instructionsunder "Maintenance" and
=Storage" sections of this owner's manual.
WARNING: This tractor is equipped with an internal com-
bustion engine and should not be used on or near any
unimprovedforest-coverad, brush-coveredorgrass-covered
land unless the engine's exhaust system is equipped with
a spark arraster meeting applicable local or state laws (if
any). If a spark arrester is used, it should be maintained
in effective working order by the operator.
A spark arrester for the muffler is available through your
nearest authorizedservicecenter/department (See RE PAIR
PARTS section of this manual).
TABLE OF CONTENTS
SAFETY RULES ......................................................... 2-3
PRODUCT SPECIFICATIONS ....................................... 4
CUSTOMER RESPONSIBILITIES ................................. 4
ASSEMBLY ................................................................. 6-8
OPERATION ............................................................. 9-13
MAINTENANCE SCHEDULE ...................................... 14
MAINTENANCE ..................................................... 14-18
SERVICE AND ADJUSTMENTS ............................ 19-23
STORAGE .................................................................... 24
TROUBLESHOOTING ............................................ 26.26
REPAIR PARTS ...................................................... 28-43
WARRANTY ................................................................. 45
