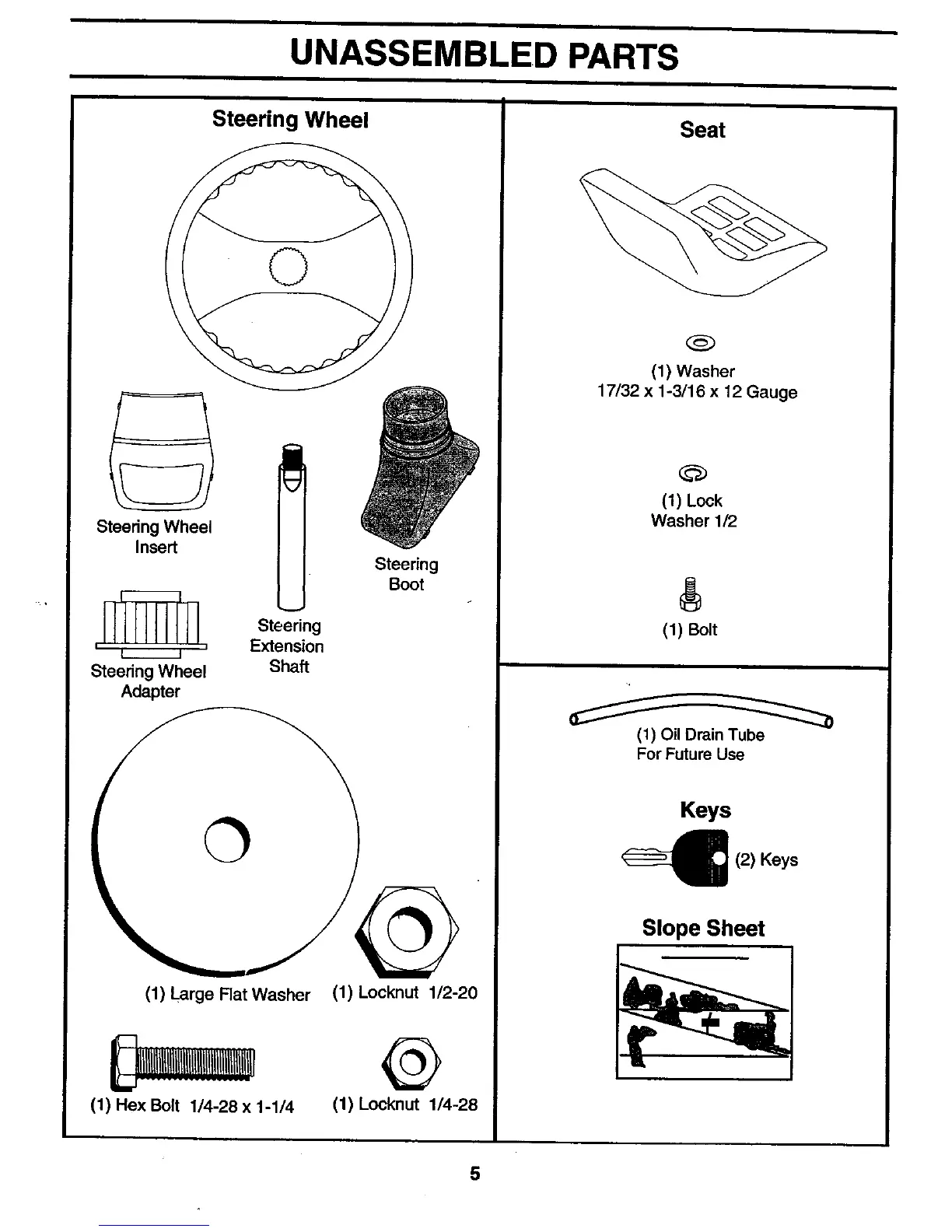

UNASSEMBLED PARTS
Steering Wheel
O
Steering
Extension
Shaft
Steering Wheel
Insert
Steering Wheel
Adapter
O
(1) Large Flat Washer
(1) Hex Bolt 1/4-28 x 1-1/4
Steering
Boot
(1) Locknut 1/2-20
@
(1) Locknut 1/4-28
Seat
(1) Washer
17/32 x 1-3/16 x 12 Gauge
(1) Lock
Washer 1/2
(1) Bolt
(1) Oil Drain Tube
For Future Use
Keys
2) Keys
Slope Sheet
5
