Weelko 4122B - Installation Steps

1. Installation Steps
1）Open the packing carton, connect and tighten the water pipe with shower head. (See as illustration 1)
2）Assemble switch A as the installation diagram below. Put the metal cover on the square plastic strip. And then screw the
inner hexagon screw on square plastic strip through the cover hole. Finally stopple the cover hole with red stopple.

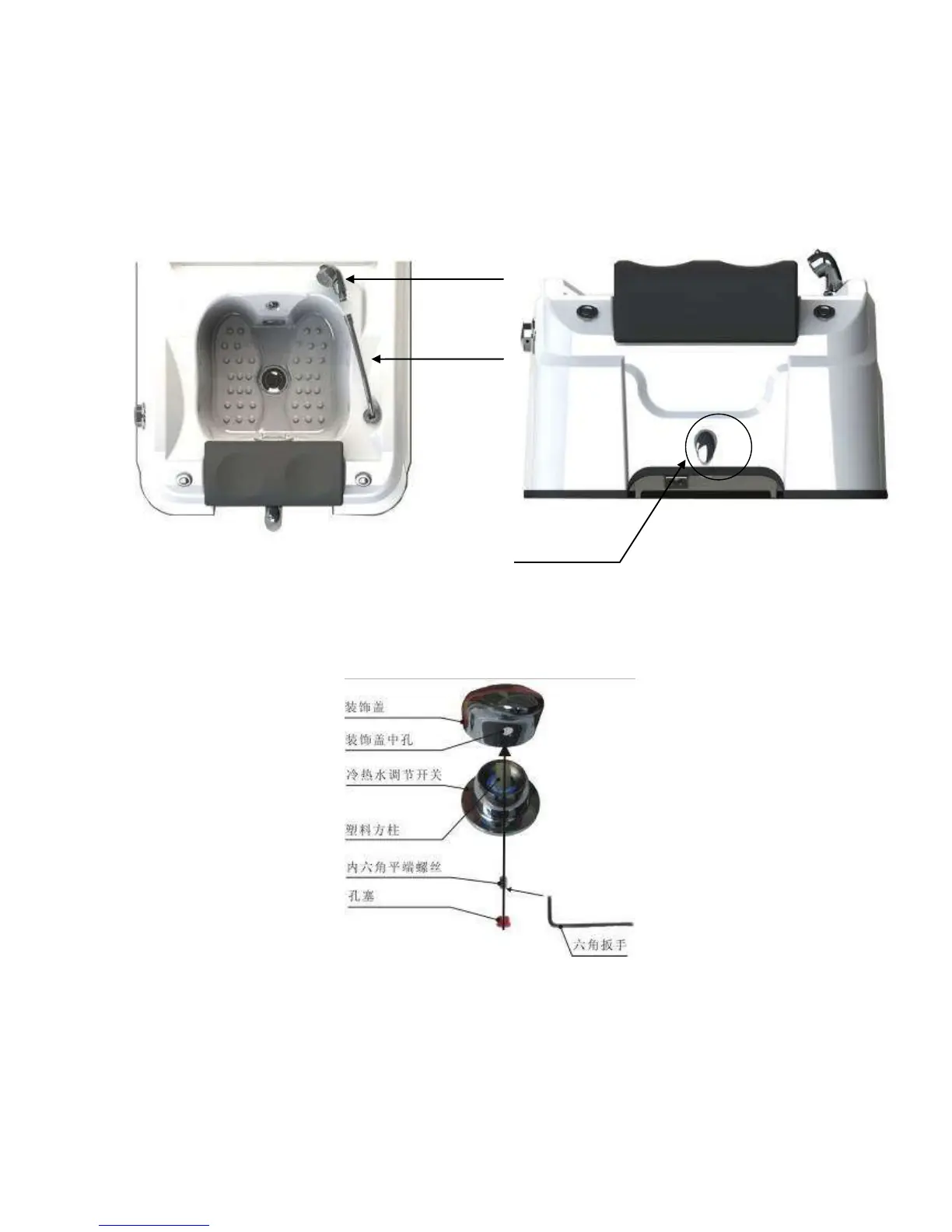

Illustration 1
Installation Diagram of Switch A
Allen key
Stopple
Inner hexagon screw
Square plastic strip
Metal upper cover
Switch for cool and hot water exchanging
Cover hole
Switch A
Shower head
Water inflowing pipe
