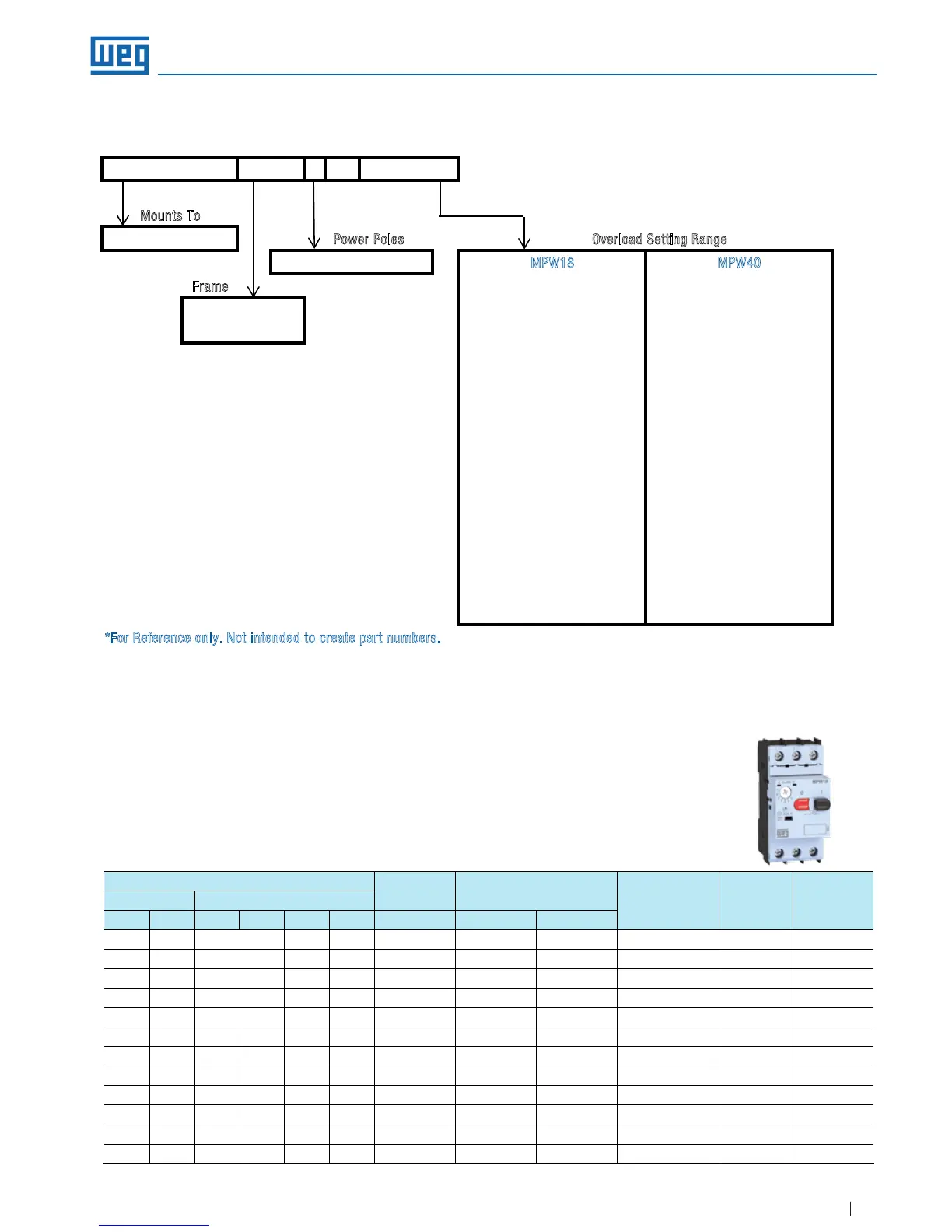

MPW18/40 Catalog Number Structure
Overload Setting Range
U020 = 16.0 - 20.0 Amps
U025 = 20.0 - 25.0 Amps
U032 = 25.0 - 32.0 Amps
U040 = 32.0 - 40.0 Amps**
D016= 1.0 - 1.60 Amps
D025 = 1.60 - 2.50 Amps
U004 = 2.80 - 4.0 Amps
D063 = 4.0 - 6.30 Amps
U004 = 2.80 - 4.0 Amps
D063 = 4.0 - 6.30 Amps
3 = 3NO Power Poles
M
PW18
C025 = 0.160 - 0.250 Amps
M
PW40
MPW U004
Mounts To
CWB9 - CWB38
C016 = 0.10 - 0.160 Amps
U010 = 6.30 - 10.0 Amps
U016 = 10.0 - 16.0 Amps
C016 = 0.10 - 0.160 Amps
C025 = 0.160 - 0.250 Amps
D004 = 0.250 - 0.40 Amps
C063 = 0.43 - 0.63 Amps
U001 = 0.630 - 1.0 Amps
U004 = 2.80 - 4.0 Amps
Power Poles
U010 = 6.30 - 10.0 Amps
U016 = 10.0 - 16.0 Amps
18 = 18 Amps
40 = 40 Amps
U018 = 12.0 - 18.0 Amps
D004 = 0.250 - 0.40 Amps
C063 = 0.43 - 0.63 Amps
U001 = 0.630 - 1.0 Amps
U004 = 2.80 - 4.0 Amps
D016= 1.0 - 1.60 Amps
D025 = 1.60 - 2.50 Amps
MPW18 Motor Protective Circuit Breaker up to 18 A (Screw Terminal) - Thermomagnetic or Magnetic Only
J
With overload and short-circuit protection
J
Fixed short-circuit release 13 x lu
J
With phase-failure sensitivity according to IEC 60947-4-1
J
With temperature compensation
J
For use as main switch (IEC 60947-2)
J
Pushbutton operated
Maximum UL Horsepower
Thermal Setting Short-Circuit interruption capacity
Catalog Number List Price Multiplier SymbolSingle Phase Three Phase
115V 230V 200V 230V 460V 575V [A] 480V 600V
- - - - - - 0.10 - 0.16 50kA 10kA MPW18-3-C016 $97 Z4
- - - - - - 0.16 - 0.25 50kA 10kA MPW18-3-C025 $97 Z4
- - - - - 0.25 - 0.40 50kA 10kA MPW18-3-D004 $97 Z4
- - - - - - 0.40 - 0.63 50kA 10kA MPW18-3-C063 $105 Z4
- - - - - 1/2 0.63 - 1.0 50kA 10kA MPW18-3-U001 $105 Z4
- 1/10 - - 3/4 3/4 1.0 - 1.6 50kA 10kA MPW18-3-D016 $105 Z4
- 1/6 1/2 1/2 1 1 1/2 1.6 - 2.5 50kA 10kA MPW18-3-D025 $105 Z4
1/8 1/3 3/4 3/4 2 3 2.5 - 4.0 50kA 10kA MPW18-3-U004 $105 Z4
1/4 1/2 1 1 1/2 3 5 4.0 - 6.3 50kA 10k A MPW18-3-D063 $105 Z4
1/2 1 1/2 2 3 5 7 1/2 6.3 - 10 50kA 5kA MPW18-3-U010
$105 Z4
1 2 3 5 10 10 10 - 16 30kA 5kA MPW18-3-U016 $105 Z4
1 3 5 5 10 15 12 - 18 30kA 5kA MPW18-3-U018 $120 Z4
Note: Horsepower ratings shown in the table are for reference only. Please refer to the Full Load Amps of the Motor for final selection.
