C-5
WEG Automation - Products and Solutions
Data is subject to change without notice.
Low Voltage Industrial Controls

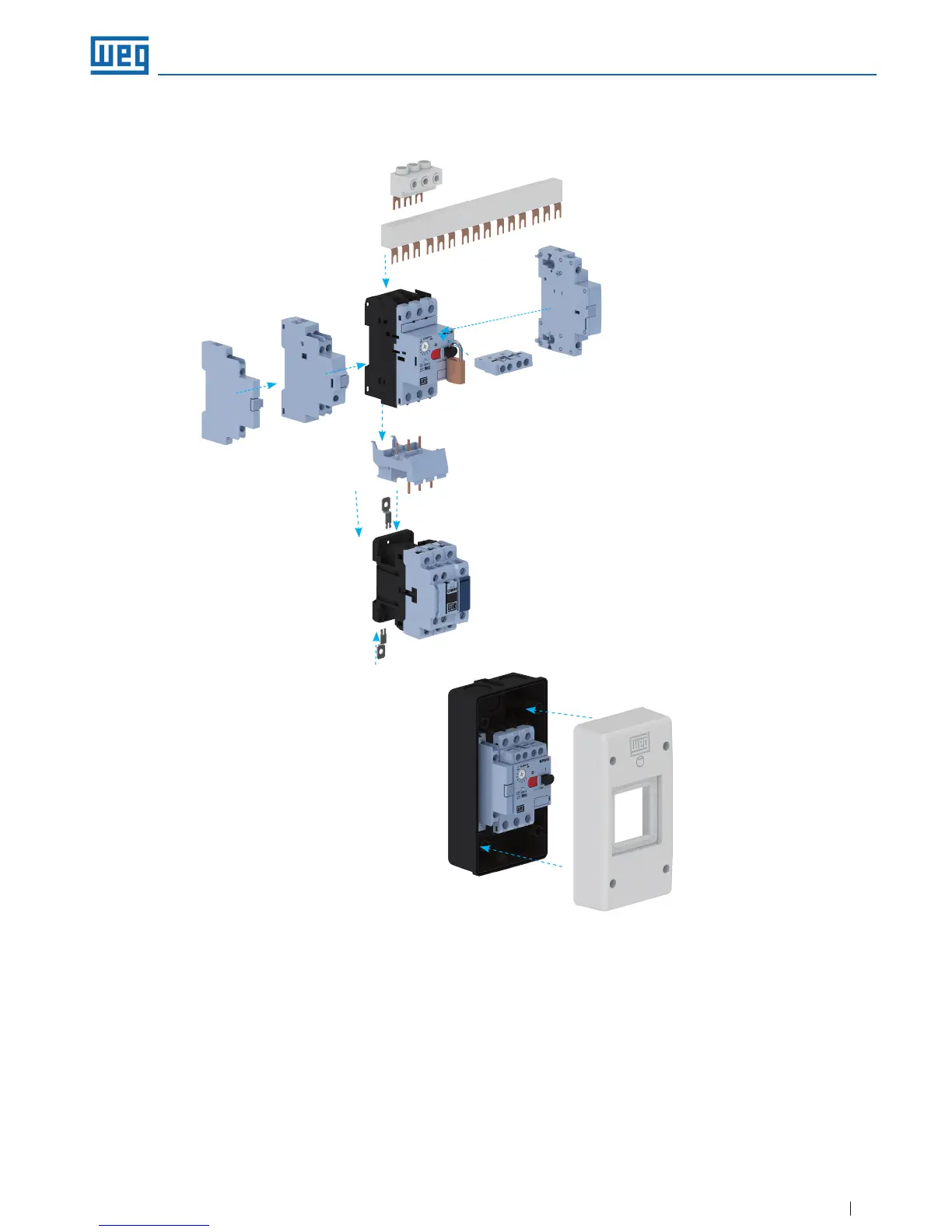

1 - MPW18 motor protective circuit breaker (screw terminal)
2 - Feeder terminal FTBBS
3 - Three-phase busbars BBS
4 - Push-in-lugs PLMP
5 - Side mounted auxiliary contact block ACBS
(screw terminal)
6 - Undervoltage release URMP or shunt release SRMP
(screw terminal)
7 - Front mounted auxiliary contact block ACBF
(screw terminal)
8 - Insulated enclosure PE66GN
9 - Scale cover SCMP
10 - Trip signaling block TSB
11 - CWB9...38 contactors
12 - Link module ECCMP-18B38 (MPW18+CWB9...38)
2
3
6
110
5
7
11
12
4
8
MPW40-PRODUCT SELECTION
Maximum UL Horsepower
Thermal
Setting
Short-Circuit interruption
capacity
Catalog Number List Price
Multiplier
Symbol
Single Phase Three Phase
115V 230V 200V 230V 460V 575V [A] 480V 600V
- - - - - - 0.10 - 0.16 50kA 25kA MPW40-3-C016 $116 Z4
- - - - - - 0.16 - 0.25 50kA 25kA MPW40-3-C025 $116 Z4
- - - - - - 0.25 - 0.40 50kA 25kA MPW40-3-D004 $116 Z4
- - - - - 1/4 0.40 - 0.63 50kA 25kA MPW40-3-C063 $137 Z4
- - - - 1/2 1/2 0.63 - 1.0 50kA 25kA MPW40-3-U001 $137 Z4
- 1/10 1/4 1/3 3/4 1 1.0 - 1.6 50kA 25kA MPW40-3-D016 $137 Z4
- 1/6 1/2 1/2 1 1/2 1 1/2 1.6 - 2.5 50kA 25kA MPW40-3-D025 $137 Z4
1/8 1/3 3/4 1 2 3 2.5 - 4.0 50kA 25kA MPW40-3-U004 $137 Z4
1/4 3/4 1 1/2 1 1/2 3 5 4.0 - 6.3 50kA 25kA MPW40-3-D063 $137 Z4
1/2 1 1/2 3 3 5 7 1/2 6.3 - 10 50kA 25kA MPW40-3-U010 $137 Z4
1 3 5 5 10 15 10 - 16 50kA 25kA MPW40-3-U016 $150 Z4
1 1/2 3 5 7 1/2 15 15 16 - 20 50kA 25kA MPW40-3-U020 $150 Z4
2 3 7 1/2 7 1/2 15 20 20 - 25 50kA 25kA MPW40-3-U025 $170 Z4
- 5 10 10 20 25 25 - 32 42kA 25kA MPW40-3-U032 $190 Z4
- 5 10 15 25 - 32 - 40 42kA 25kA MPW40-3-U040** $225 Z4
Note: Horsepower ratings shown in the table are for reference only. Please refer to the Full Load Amps of the Motor for final selection.
MPW18 Manual Motor Protector - Overview
