Wega P700 User Manual

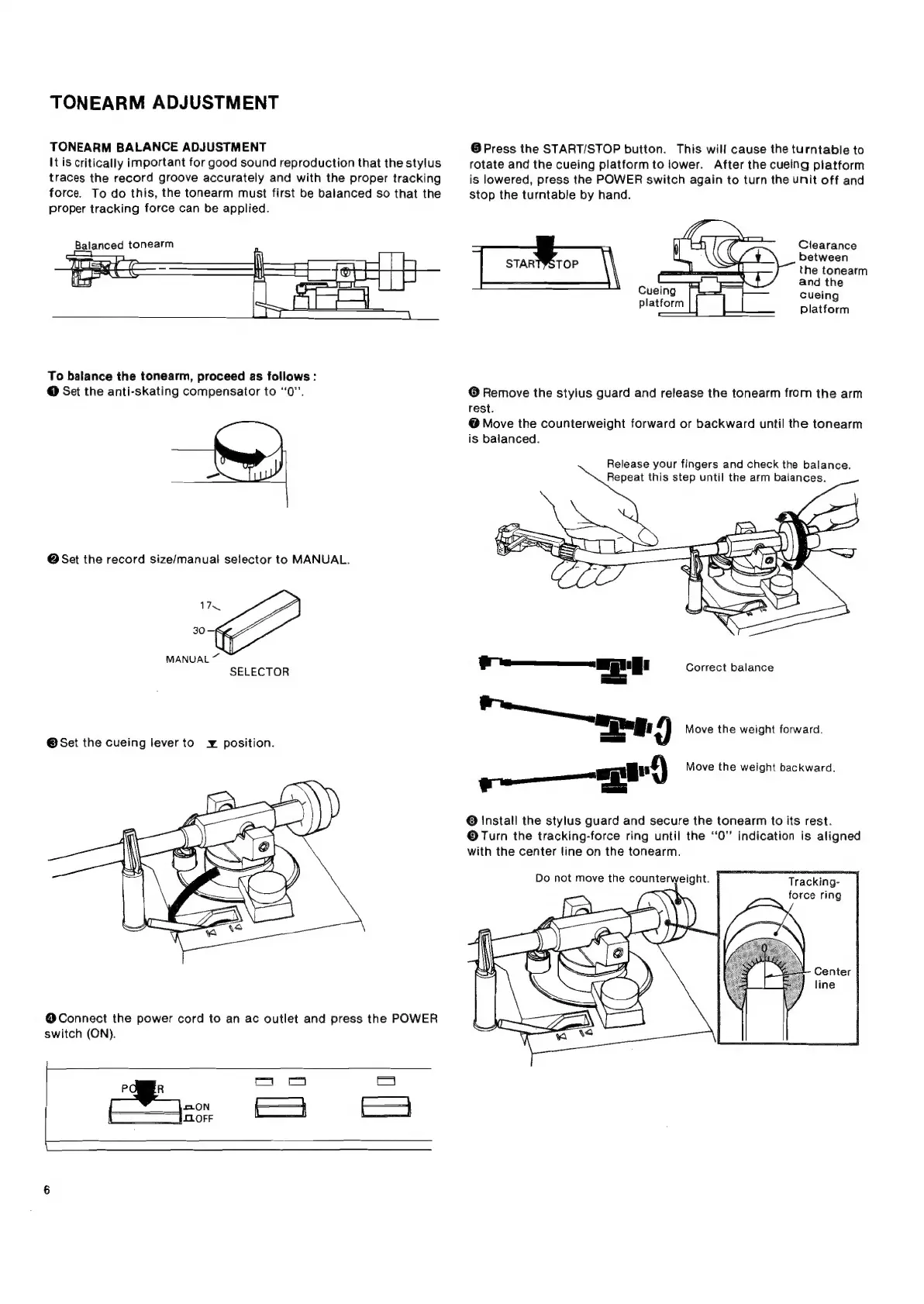

TONEARM ADJUSTMENT
TONEARM BALANCE ADJUSTMENT
It is critically important for good sound reproduction that the stylus
traces the record groove accurately and with the proper tracking
force. To do this, the tonearm must first be balanced so that the
proper tracking force can be applied.
Balanced tonearm
ay |
To balance the tonearm, proceed as follows :
@ Set the anti-skating compensator to “0”.
@ Set the record size/manual selector to MANUAL.
i
30 -
MANUAL ~
SELECTOR
@Set the cueing lever to -¥ position.
@Connect the power cord to an ac outlet and press the POWER
switch (ON).
@ Press the START/STOP button. This will cause the turntable to
rotate and the cueing platform to lower. After the cueing platform
is lowered, press the POWER switch again to turn the unit off and
stop the turntable by hand.
Clearance
between
the tonearm
and the
cueing
platform
Cueing
platform
@ Remove the stylus guard and release the tonearm from the arm
rest.
@ Move the counterweight forward or backward until the tonearm
is balanced.
Release your fingers and check the balance.
Repeat this step until the arm balances.
Correct balance
Move the weight forward.
oo
———
4
Move
the
weight
backward.
® install the stylus guard and secure the tonearm to its rest.
© Turn the tracking-force ring until the ‘0’ indication is aligned
with the center line on the tonearm.
Tracking- “T
force ring
Do not move the counterweight. |
