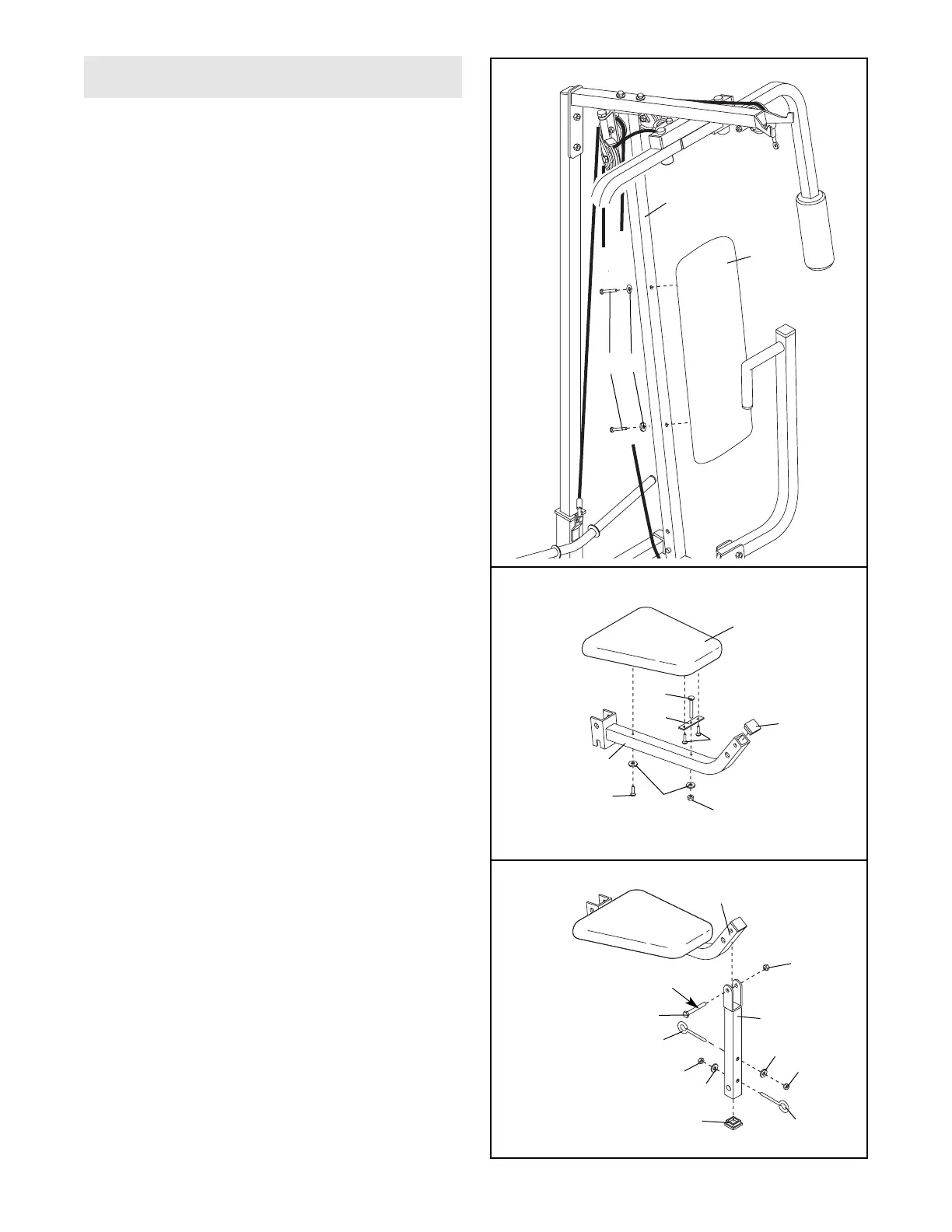

23. Attach the Backrest (41) to the Front Upright (42)
with two 1/4” x 2 1/2” Screws (43) and two 1/4”
Washers (10).
SEAT ASSEMBLY
23
41
42
10
43
13
24. Press a 1 1/2” Square Inner Cap (32) into the
Seat Frame (36).
Insert a 1/4” x 2” Carriage Bolt (38) into the center
hole in the Seat Plate (37). Attach the Seat Plate
to the Seat (13) with two 1/4” x 3/4” Screws (18).
Insert the 1/4” x 2” Carriage Bolt (38) into the indi-
cated hole in the Seat Frame (36). Tighten a 1/4”
Nylon Locknut (2) with a 1/4” Washer (10) onto
the Carriage Bolt.
Attach the other end of the Seat (13) to the Seat
Frame (36) with a 1/4” Washer (10) and the 1/4” x
2” Screw (24).
25. Press a 1 1/2” Square Inner Cap (32) into the Leg
Lever (29).
Lubricate the 5/16” x 2 3/4” Bolt (11). Attach the
Leg Lever (29) to the Seat Frame (36) with the
Bolt and a 5/16” Nylon Locknut (3). Do not over-
tighten the Nylon Locknut; the Leg Lever
must pivot freely.
Insert the two 3/8” x 2 1/2” Eyebolts (35) into the
Leg Lever (29) from the directions shown. Tighten
a 3/8” Washer (9) and a 3/8” Nylon Locknut (21)
onto each Eyebolt. Note: Be sure the Eyebolts
are positioned vertically on the Leg Lever.
