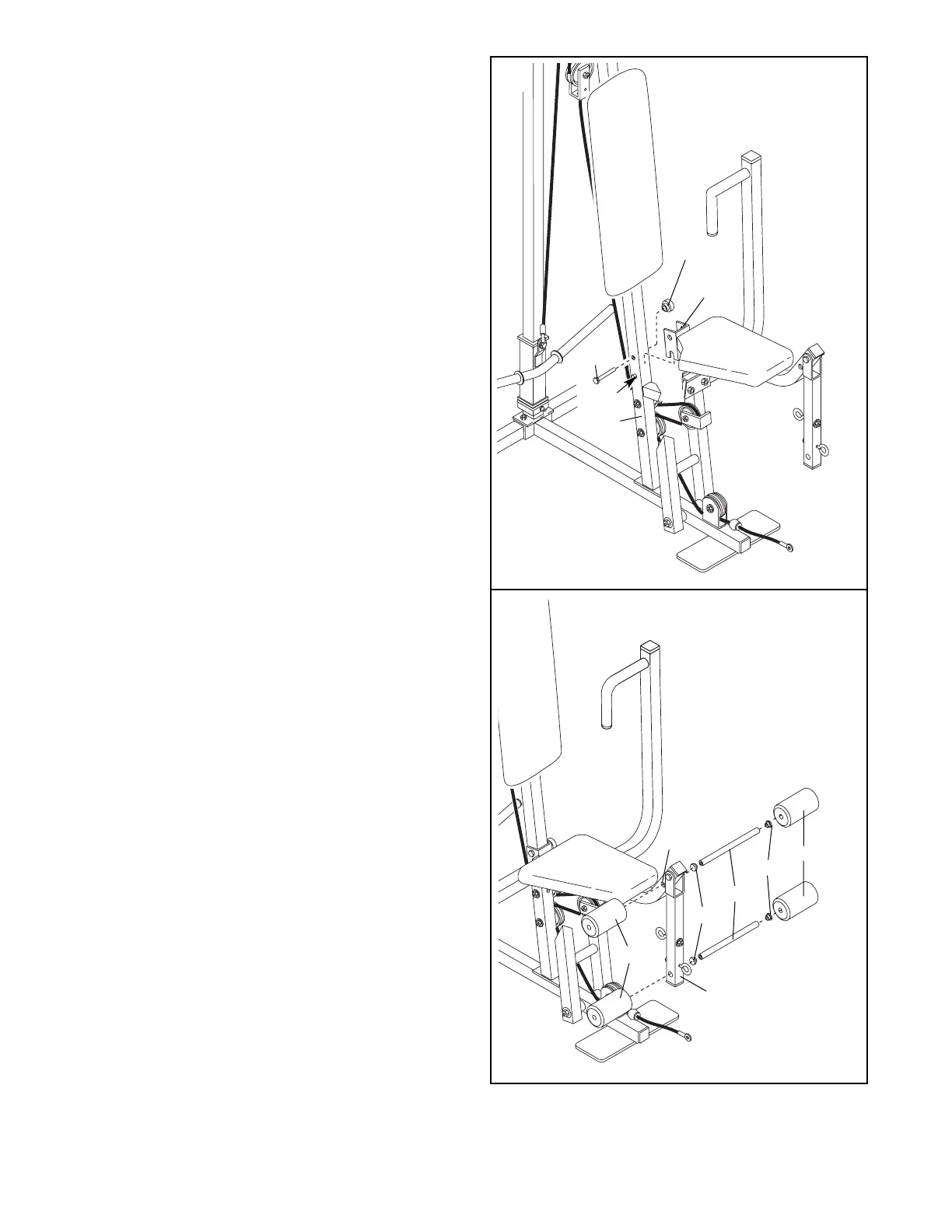

26. Rest the Seat Frame (36) on the indicated pin in
the Front Upright (42). Attach the Seat Frame to
the Front Upright with a 5/16” x 2 3/4” Carriage
Bolt (14) and the Seat Knob (40).
26
36
40
Pin
42
14
27. Press 3/4” Round Inner Caps (34) into the ends
of both Pad Tubes (28).
Insert one Pad Tube (28) into the Seat Frame
(36). Slide a Foam Pad (30) onto each end of the
Pad Tube.
Insert the other Pad Tube (28) into the Leg Lever
(29). Slide a Foam Pad (30) onto each end of the
Pad Tube.
27
30
34
28
34
29
30
36
