Weider 831.150340 - Page 6

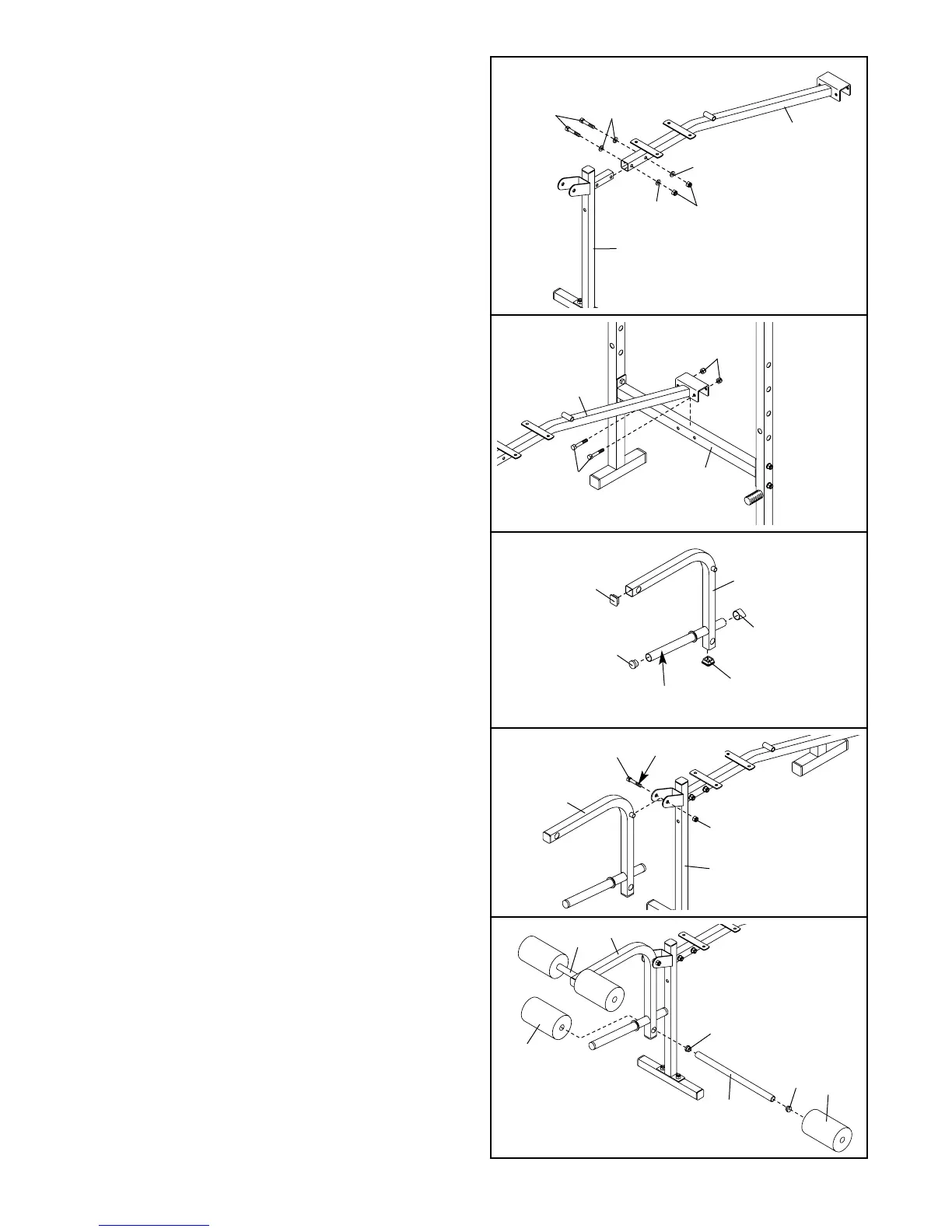

3. Attach the Front Leg (8) to the Frame (2) with two
M8 x 43mm Bolts (39), four M8 Washers (16),
and two M8 Nylon Locknuts (17). Note: Do not
tighten the Locknuts yet.
4. Attach the Frame (2) to the Crossbar (3) with two
M8 x 55mm Bolts (18) and two M8 Nylon Locknuts
(17).
5. Tap two 30mm Square Inner Caps (22) into the
ends of the Leg Lever (4).
Tap a 25mm Round Inner Cap (24) into the indi-
cated end of the weight tube on the Leg Lever
(4). Tap the 25mm Round Angled Cap (20) onto
the other end of the weight tube.
6. Lubricate the M10 x 63mm Bolt (32) with grease.
Attach the Leg Lever (4) to the Front Leg (8) with
the Bolt and an M10 Nylon Locknut (33). Do not
overtighten the Locknut; the Leg Lever must
be able to pivot easily.
3
17
2
39
16
16
8
16
4
2
3
17
18
22
24
Weight
Tube
4
20
22
5
33
4
6
Lubricate
32
8
6
7. Tap two 19mm Round Inner Caps (9) into a Long
Pad Tube (10). Slide the Long Pad Tube through
a hole in the Leg Lever (4). Slide two Long Foam
Pads (23) onto the Long Pad Tube.
Repeat this step with the other Long Pad Tube
(10).
9
10
10
9
4
23
23
7
