Weider 831.15973 - Seat and Backrest Assembly

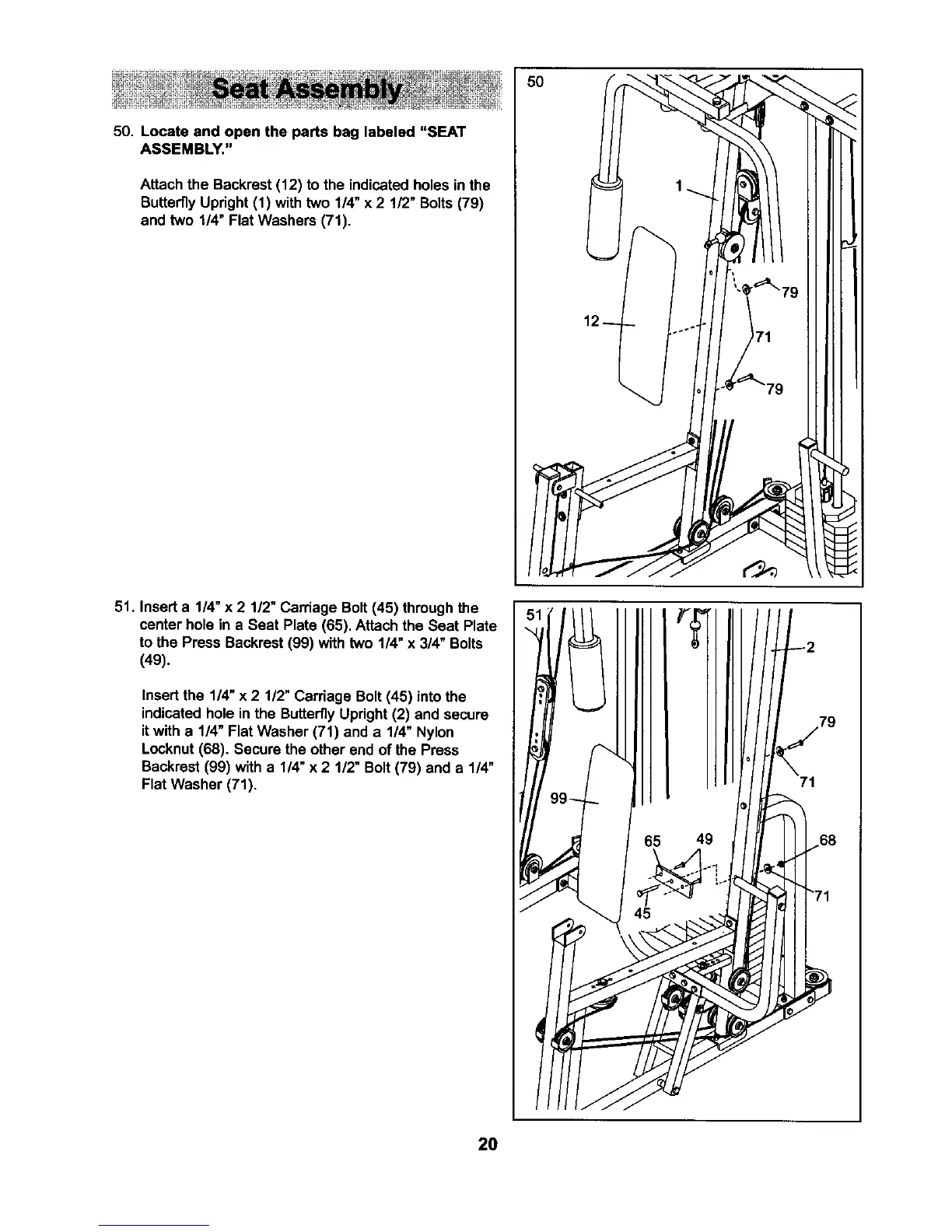

50. Locate and open the parts bag labeled "SEAT
ASSEMBLY."
Attach the Backrest(12) to the indicatedholesin the
ButterflyUpright(1) withtwo 1/4"x 2 1/2" Bolts(79)
and two 114"Flat Washers (71).
51. Inserta 1/4"x 2 1/2" Carriage Bolt(45) throughthe
center hole in a Seat Plate (65). Attachthe Seat Plate
to the Press Backrest (99) with two 1/4" x 3/4" Bolts
(49).
Insertthe 1/4" x 2 1/2" Carriage Bolt(45) into the
indicatedhole inthe ButterflyUpright(2) and secure
itwith a 1/4" Flat Washer (71) and a 1/4" Nylon
Locknut(68). Secure the other end of the Press
Backrest (99) with a 1/4"x 2 1/2" Bolt(79) and a 1/4"
Flat Washer (71).
