17

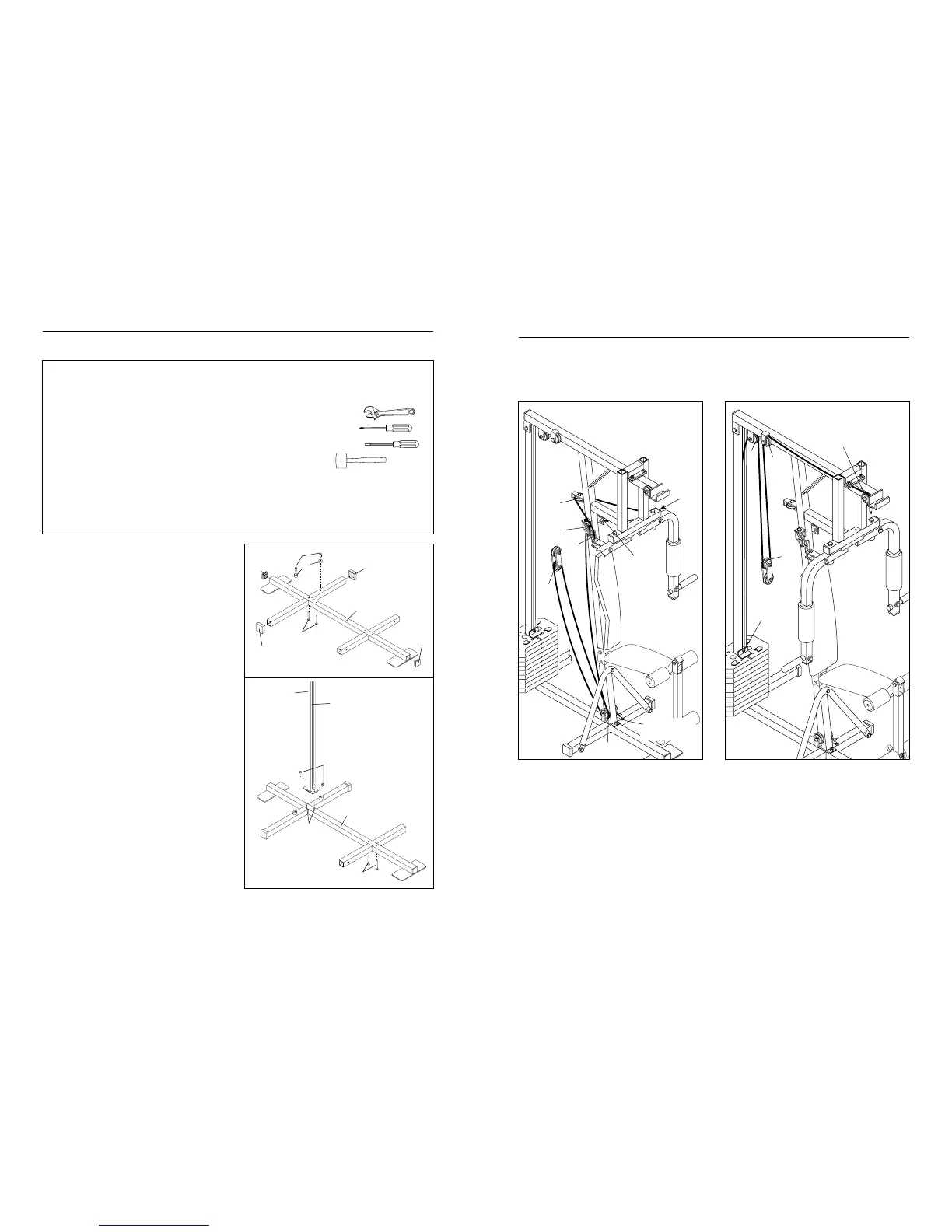

CABLE DIAGRAMS
The diagrams below show the proper routing of the Low Cable (70) and the High Cable (71). Use the diagrams
to make sure that the two cables are assembled correctly. The numbers show the routing of the Cables from the
starting to ending points.
4
5
6
7
LOW CABLE (70)
2
1—Low Pulley
Station
3
8—Bracket
HIGH CABLE (71)
3
4
5—High Pulley Station
1—Weight
Stack
2
ASSEMBLY
1. Press two 2” Outer Caps (37) onto the Base (38)
in the indicated locations. Insert two 2” Inner
Caps (36) into the ends of the Base.
Attach the two Weight Bumpers (40) to the Base
(38) with the two 1 1/4” Tap Screws (39).
Insert two 5/16” x 2 1/2” Carriage Bolts (35) up
through the indicated holes in the Base (38).
2. Attach the Guide Tube (34) to the two 5/16” x
2 1/2” Carriage Bolts (35) in the Base (38) with
two 5/16” Nylon Locknuts (1). Be sure that the
Guide Tube is turned so the slot is on the
side shown.
Insert two 5/16” x 2 1/2” Carriage Bolts (35) up
through the indicated holes in the Base (38).
4
1
2
34
Slot
35
38
1
35
39
40
38
37
36
36
37
35
Before beginning assembly, carefully read the
following information and instructions:
• Place all parts of the POWERGUIDE X2 in a
cleared area and remove the packing materials;
do not dispose of the packing materials until
assembly is completed.
• For help identifying the small parts used in
assembly, use the PART IDENTIFICATION
CHART located in the centre of this manual.
Note: Some small parts may have been pre-
attached for shipping. If a part is not in the parts
bag, check to see if it has been pre-attached.
• During assembly, be sure that all parts are orient-
ed as shown in the drawings.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
The following tools (not included) are required:
• Two (2) adjustable wrenches
• One (1) phillips screwdriver
• One (1) standard screwdriver
• One (1) rubber mallet
• Lubricant, such as grease or petroleum jelly,
and soapy water will also be needed.
Assembly will be more convenient if you have the
following tools: A socket set, a set of open-end or
closed-end wrenches, or a set of ratchet wrenches.
