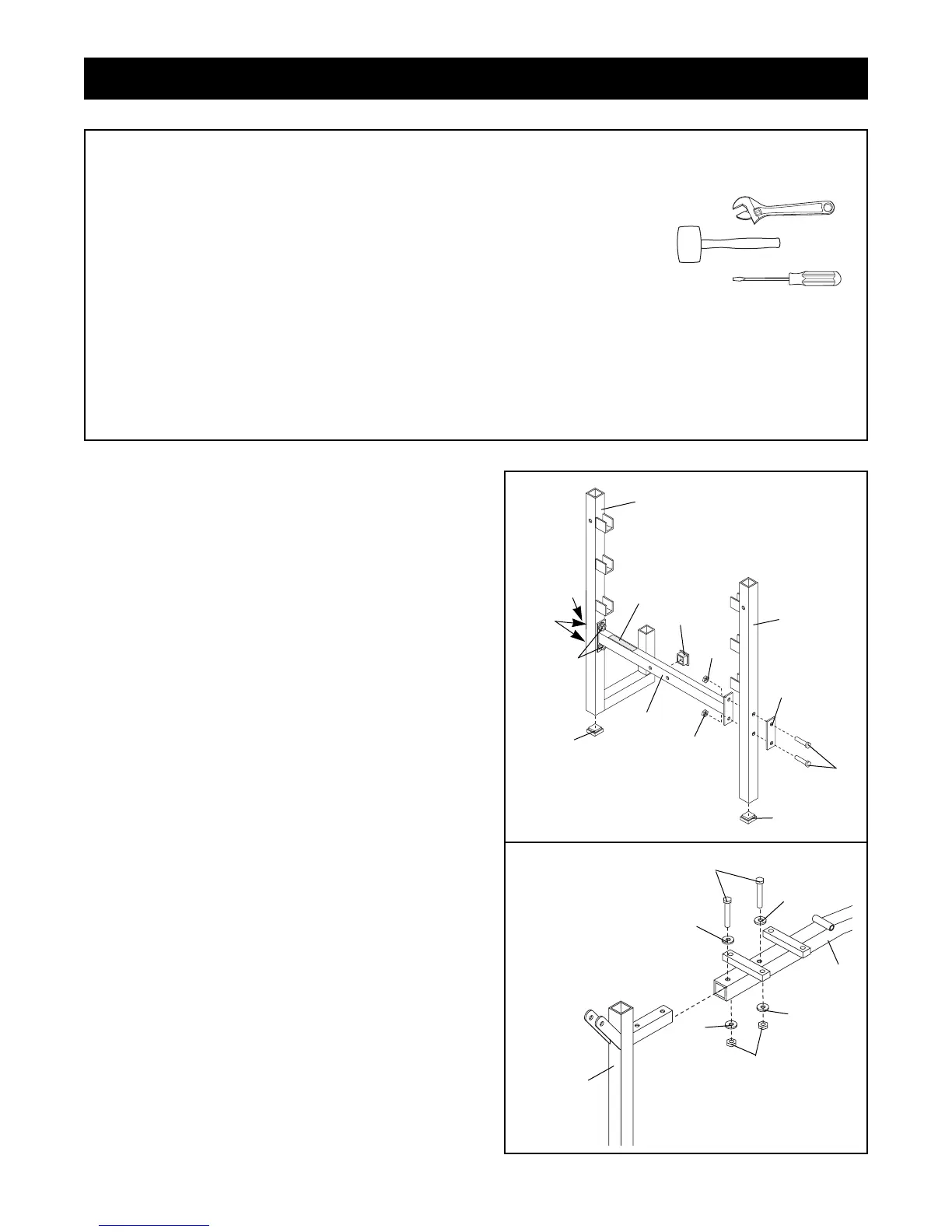

6
Before beginning assembly, carefully read the
following information and instructions:
¥ Place all parts in a cleared area and remove the
packing materials; do not dispose of the packing
materials until assembly is completed.
¥ Tighten all parts as you assemble them, unless
instructed to do otherwise.
¥ For help identifying the small parts used in
assembly, use the PART IDENTIFICATION
CHART on the page 5.
¥ As you assemble the weight bench, be sure that
all parts are oriented as shown in the drawings.
THE FOLLOWING TOOLS (NOT INCLUDED) ARE
REQUIRED FOR ASSEMBLY:
¥ Two (2) adjustable wrenches
¥ One (1) rubber mallet
¥ One (1) standard screwdriver
¥ Lubricant, such as grease or petroleum jelly,
and soapy water.
Assembly will be more convenient if you have the
following tools: A socket set, a set of open-end or
closed-end wrenches or a set of ratchet wrenches.
2
1
1. Before assembling this product, make sure you
understand the information in the box above.
Press a 50mm x 50mm Square Inner Cap (36) into
the lower end of each Upright (1, 15). Press a
45mm x 45mm Square Inner Cap (28) into the base
of the Right Upright (1).
Orient the Crossbar (3) with the warning decal fac-
ing up as shown. Attach the Crossbar to the Left
Upright (15) with two M10 x 70mm Bolts (26), a
Support Plate (14) and two M10 Nylon Locknuts
(30). The Upright must be oriented as shown.
Attach the Crossbar (3) to Right Upright (1) in the
same manner.
2. Attach the Frame (2) to the welded bracket on the
Front Leg (8) with two M8 x 50mm Bolts (44), four
M8 Washers (17), and two M8 Nylon Locknuts (34).
Assembly
26
36
36
14
14
26
3
15
30
30
30
8
44
34
17
17
2
17
17
28
1
Decal
To Next Page
