7

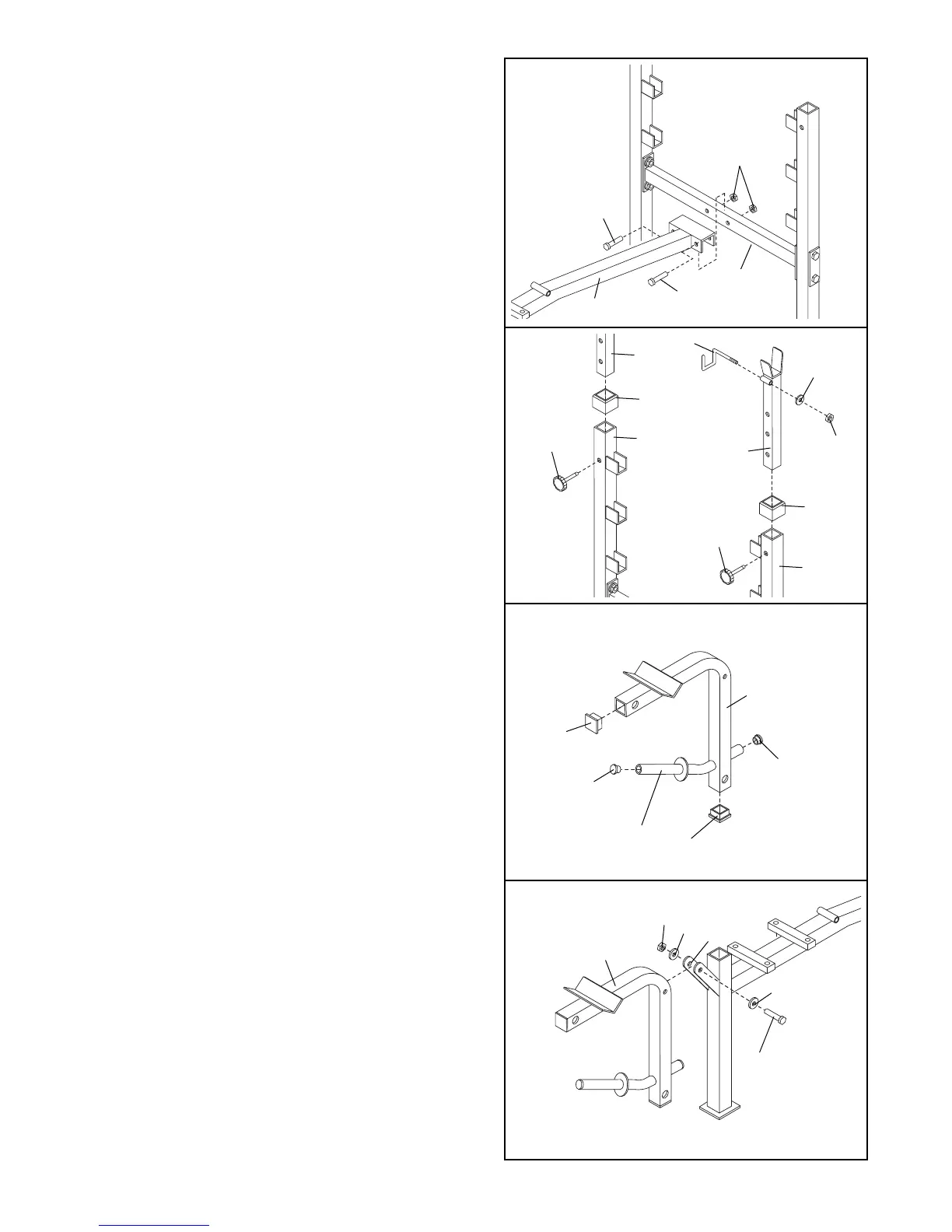

3. Attach the Frame (2) to the Crossbar (3) with two
M8 x 55mm Bolts (25) and two M8 Nylon Locknuts
(34).
4. Press a 50mm Square Bushing (31) onto each
Upright (1, 15) and tap them in place with a rubber
mallet.
Slide a Weight Rest (16) into the Right Upright (1).
Align one of the adjustment holes in the Weight
Rest with the adjustment hole in the Upright.
Tighten the Large Threaded Knob (20) into the
adjustment hole in the Upright. Attach the other
Weight Rest (16) to the Left Upright (15) in the
same manner.
Attach the Left Barbell Hook (47) to the left Weight
Rest (16) with an M8 Washer (17) and an M8 Nylon
Locknut (34). Note: Make sure that the Barbell
Hook is on the inside of the Weight Rest. Attach
the Right Barbell Hook (46, not shown) to the other
Weight Rest in the same manner.
5. Tap a 38mm Square Inner Cap (32) into each end
of the Leg Lever (4).
Tap a 25.4mm Round Inner Cap (21) into each end
of the weight tube.
6. Lubricate the M10 x 70mm Bolt (26). Attach the Leg
Lever (4) to the Front Leg (8) with the Bolt, two M10
Washers (29) and an M10 Nylon Locknut (30).
6
3
4
5
34
25
16
16
31
15
32
4
30
26ÐLubricate
29
8
29
21
4
21
32
Weight Tube
20
20
31
1
25
3
2
47
17
34
To Next Page
